C1628

PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: C1628/5C-59: Vehicle Height Sensor Failure

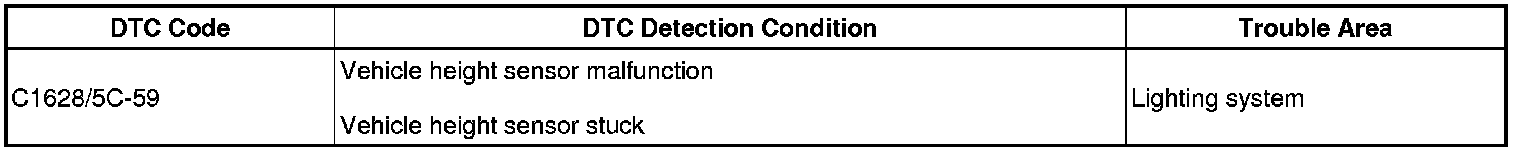

DTC C1628/5C-59 - Vehicle Height Sensor Failure

DESCRIPTION

When the parking assist ECU's self-diagnosis determines that the headlight swivel ECU (AFS ECU) (connected to the parking assist ECU via CAN communication) receives a height control sensor malfunction signal from the suspension control ECU, this DTC is output.






INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT
(a) Clear the DTCs Advanced Parking Guidance System.
(b) Check for DTCs Advanced Parking Guidance System.

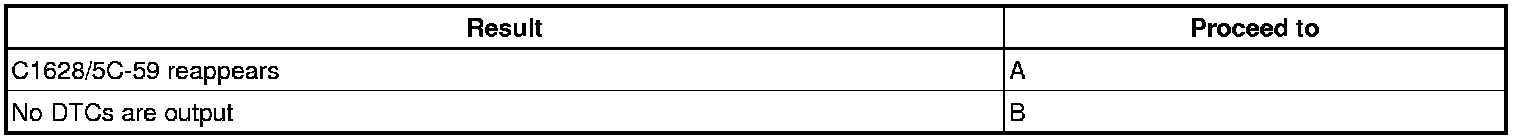

Result





B -- USE SIMULATION METHOD TO CHECK
A -- GO TO LIGHTING SYSTEM
