C1593

STEERING COLUMN: VARIABLE GEAR RATIO STEERING SYSTEM: C1593/53: Actuator Standard Position Malfunction

DTC C1593/53 - Actuator Standard Position Malfunction

DESCRIPTION

If the steering control ECU detects a steering actuator standard position error, it will store DTC C1593/53.






INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC
(a) Clear the DTCs Variable Gear Ratio Steering System.
(b) Recheck for DTCs Variable Gear Ratio Steering System.

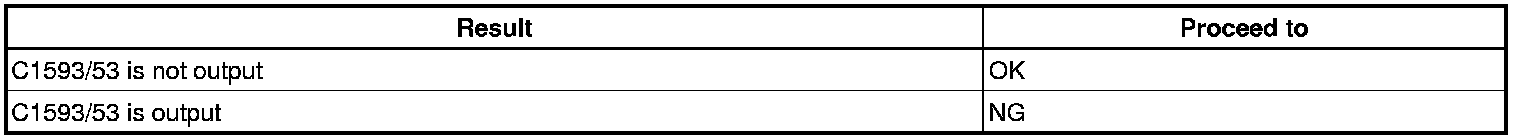

Result:






NG -- REPLACE STEERING ACTUATOR (POWER STEERING LINK ASSEMBLY)
OK -- END
