B2652

SEAT: FRONT POWER SEAT CONTROL SYSTEM: B2652: Front Vertical Sensor Malfunction

DTC B2652 - Front Vertical Sensor Malfunction

DESCRIPTION

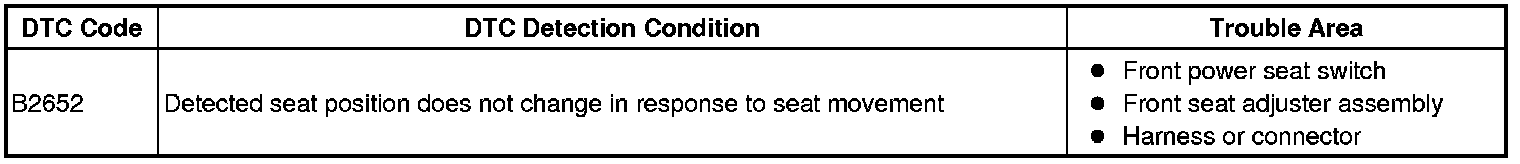

When the front power seat switch (seat ECU) does not receive a sensor signal despite upward or downward movement of the seat by a power seat motor operation, this DTC is output.

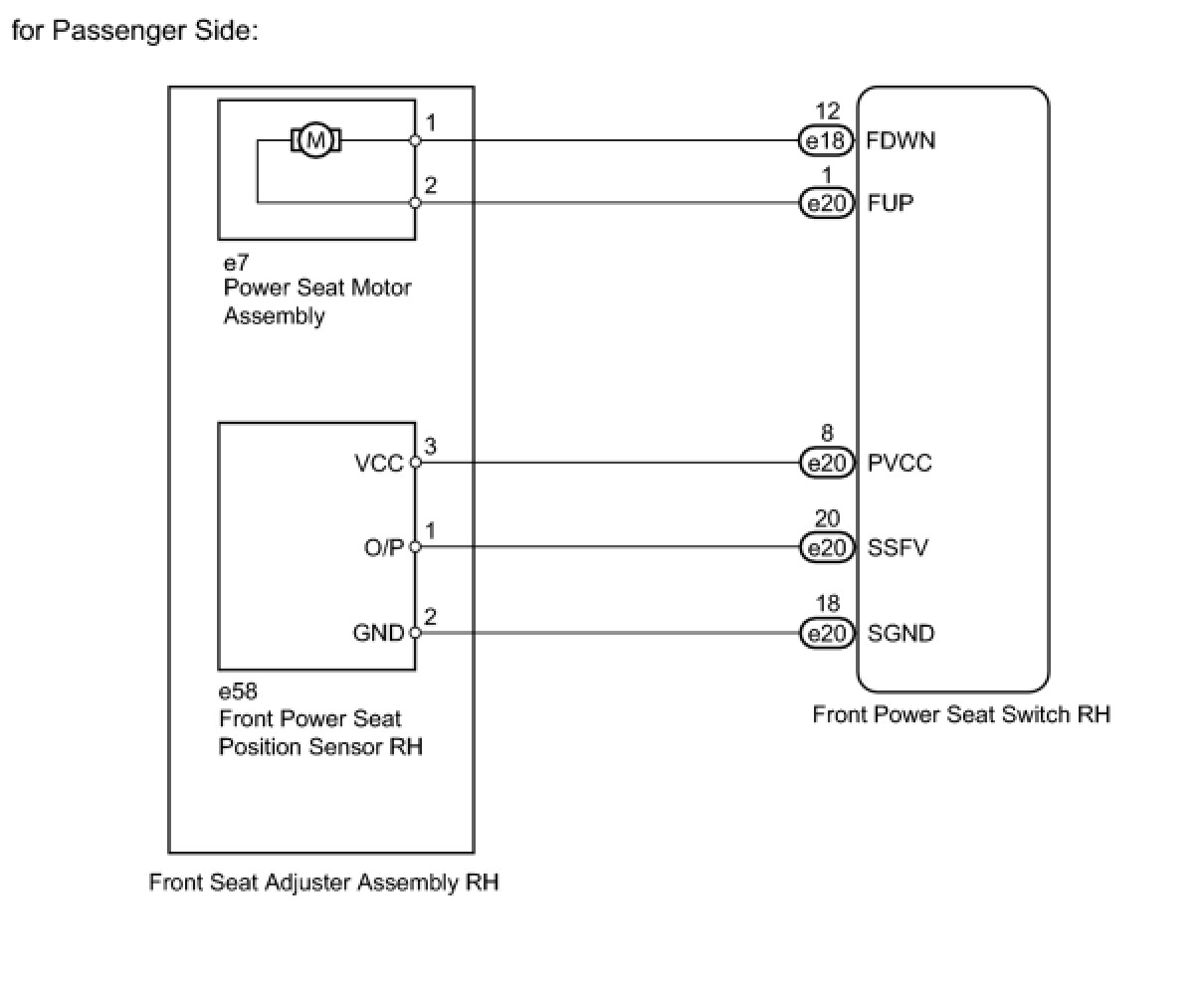

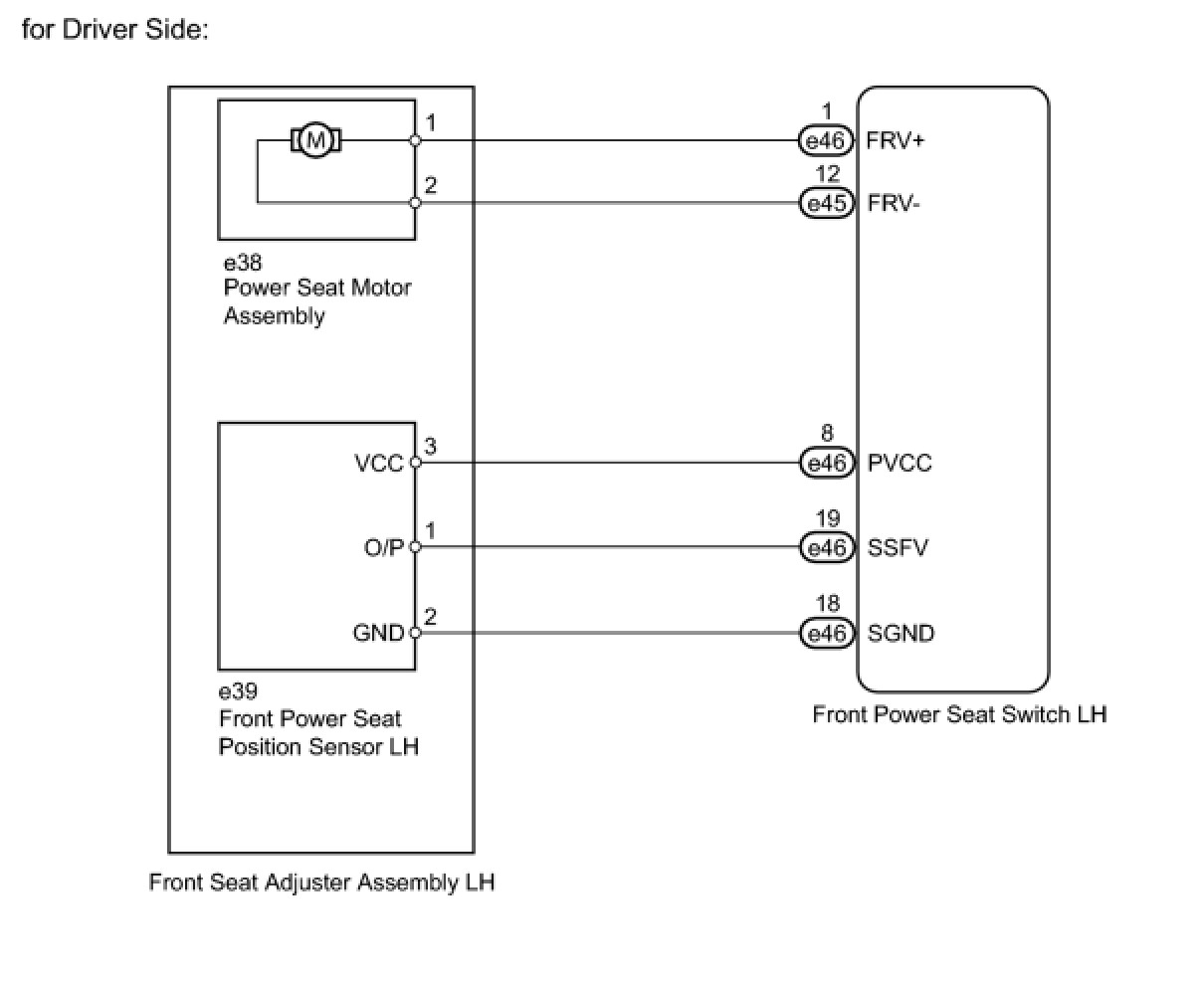

WIRING DIAGRAM









INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC
(a) Check for DTCs.
(1) Using the Techstream, check which ECU output the DTC.

Result





B -- PERFORM ACTIVE TEST USING TECHSTREAM (POWER SEAT MOTOR FUNCTION)
A -- Continue to next step.

2. PERFORM ACTIVE TEST USING TECHSTREAM (POWER SEAT MOTOR FUNCTION)
(a) Select the Active Test, use the Techstream to generate a control command, and then check the power seat motor function.

Driver Seat





OK:
Motor operates normally.
NG -- CHECK FRONT SEAT ADJUSTER ASSEMBLY LH (POWER SEAT MOTOR)
OK -- Continue to next step.

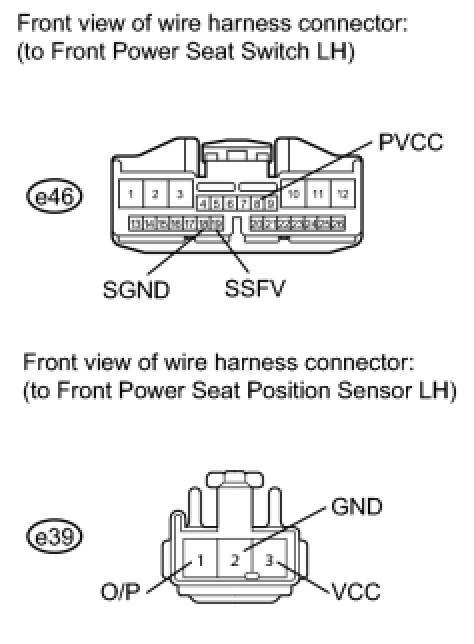

3. CHECK HARNESS AND CONNECTOR (FRONT POWER SEAT SWITCH LH - FRONT POWER SEAT POSITION SENSOR LH)




(a) Disconnect the e46 switch connector.
(b) Disconnect the e39 sensor connector.

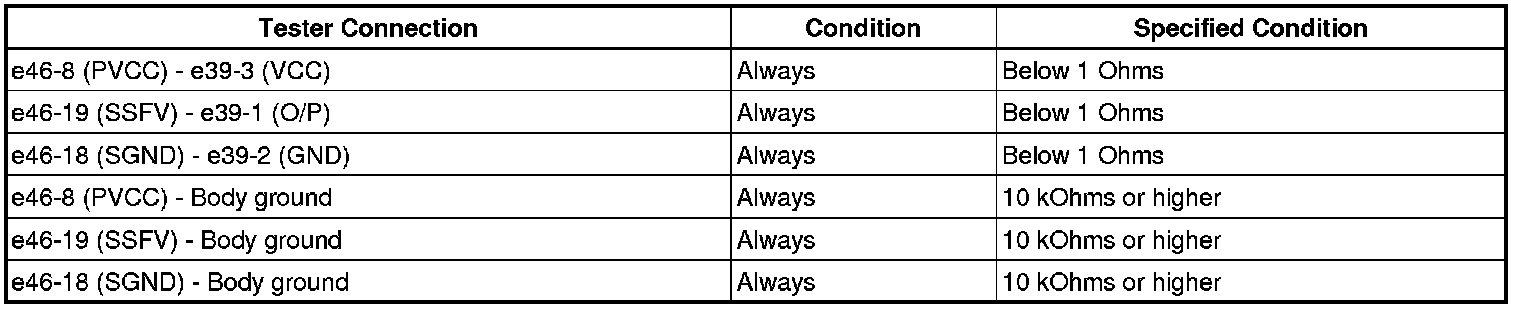

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK FRONT POWER SEAT SWITCH LH

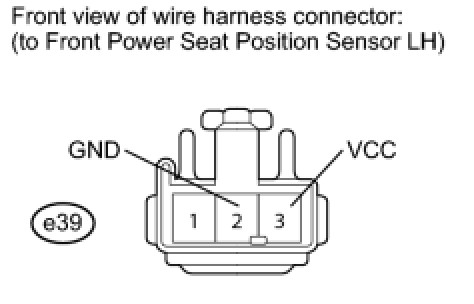

(a) Disconnect the e39 sensor connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPLACE FRONT POWER SEAT SWITCH LH
OK -- Continue to next step.

5. CHECK FRONT SEAT ADJUSTER ASSEMBLY LH (POSITION CONTROL SENSOR)

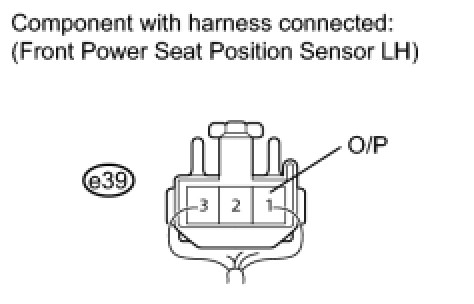

(a) Reconnect the e39 sensor connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPLACE FRONT SEAT ADJUSTER ASSEMBLY LH
OK -- Continue to next step.

6. CHECK FOR DTC
(a) Clear the DTCs Front Power Seat Control System.
(b) Recheck for DTCs.
OK:
DTC B2652 is not output.
NG -- REPLACE FRONT POWER SEAT SWITCH LH
OK -- END (SYSTEM RETURNS TO NORMAL)

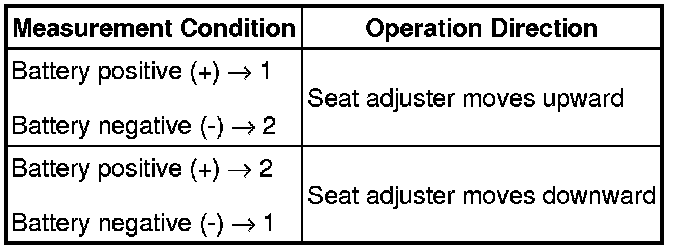

7. CHECK FRONT SEAT ADJUSTER ASSEMBLY LH (POWER SEAT MOTOR)




(a) Check operation of the power seat motor (front vertical motor).

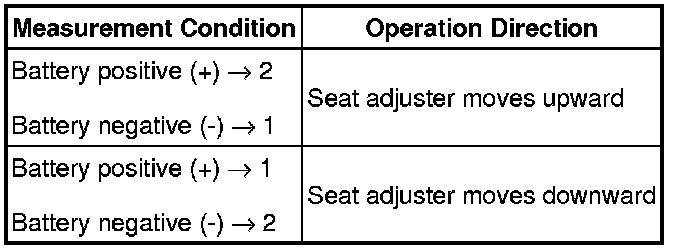

(1) Check if the seat adjuster moves smoothly when the battery is connected to the slide motor connector terminals.
OK:






NG -- REPLACE FRONT SEAT ADJUSTER ASSEMBLY LH
OK -- Continue to next step.

8. CHECK HARNESS AND CONNECTOR (FRONT POWER SEAT SWITCH LH - POWER SEAT MOTOR)

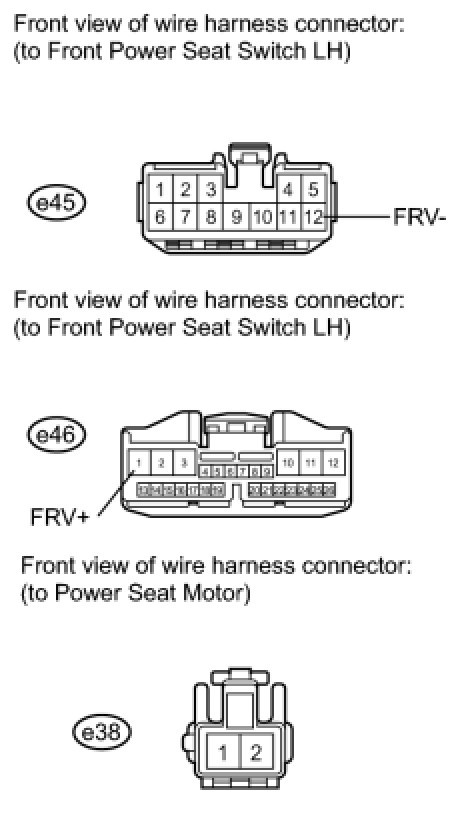

(a) Disconnect the e45 and e46 switch connectors.
(b) Disconnect the e38 motor connector.

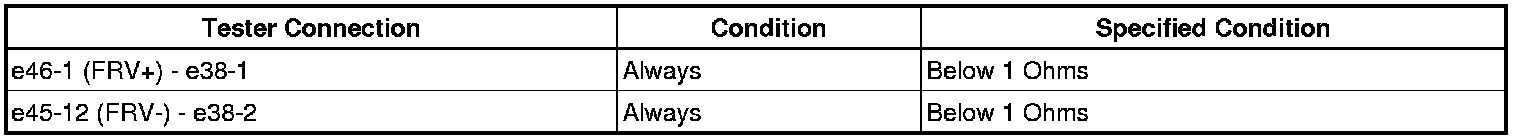

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE FRONT POWER SEAT SWITCH LH
9. PERFORM ACTIVE TEST USING TECHSTREAM (POWER SEAT MOTOR FUNCTION)
(a) Select the Active Test, use the Techstream to generate a control command, and then check the power seat motor function.

Passenger Seat





OK:
Motor operates normally.
NG -- CHECK FRONT SEAT ADJUSTER ASSEMBLY RH
OK -- Continue to next step.

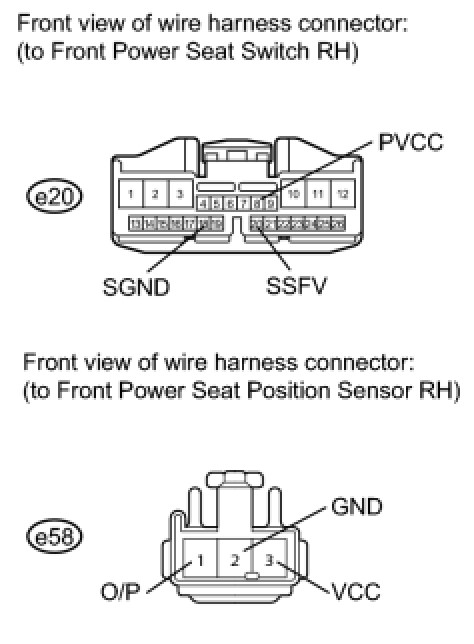

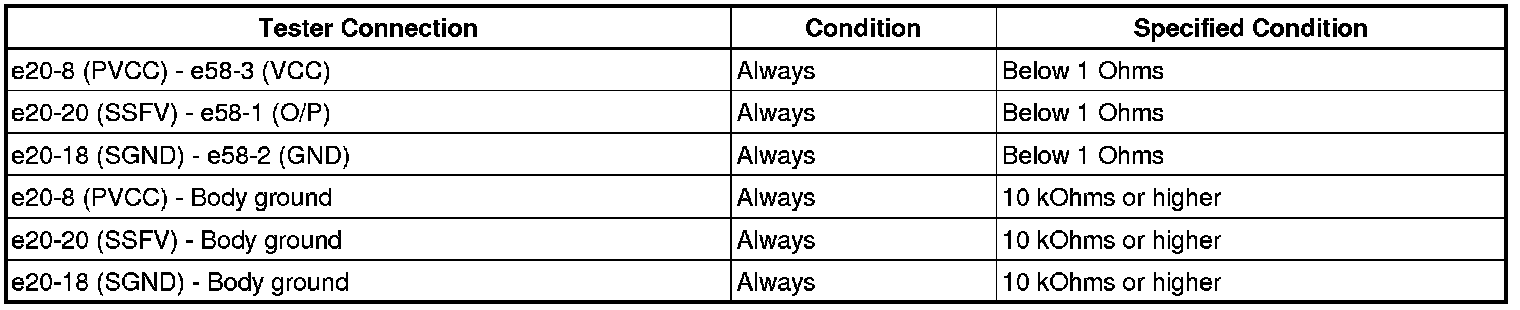

10. CHECK HARNESS AND CONNECTOR (FRONT POWER SEAT SWITCH RH - FRONT POWER SEAT POSITION SENSOR RH)




(a) Disconnect the e20 switch connector.
(b) Disconnect the e58 sensor connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

11. CHECK FRONT POWER SEAT SWITCH RH




(a) Disconnect the e58 sensor connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPLACE FRONT POWER SEAT SWITCH RH
OK -- Continue to next step.

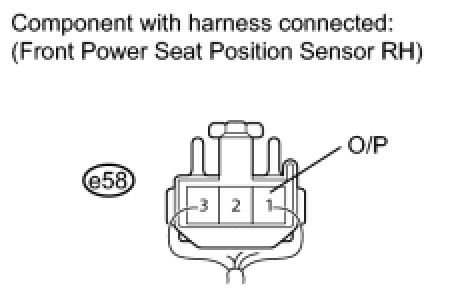

12. CHECK FRONT SEAT ADJUSTER ASSEMBLY RH (POSITION CONTROL SENSOR)




(a) Reconnect the e58 sensor connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPLACE FRONT SEAT ADJUSTER ASSEMBLY RH
OK -- Continue to next step.

13. CHECK FOR DTC
(a) Clear the DTCs Front Power Seat Control System.
(b) Recheck for DTCs.
OK:
DTC B2652 is not output.
NG -- REPLACE FRONT POWER SEAT SWITCH RH
OK -- END (SYSTEM RETURNS TO NORMAL)

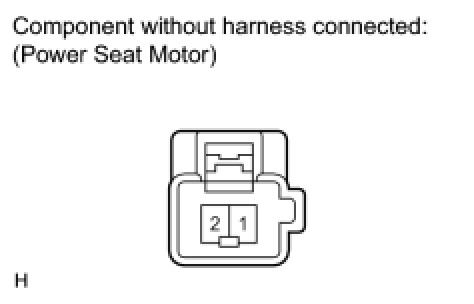

14. CHECK FRONT SEAT ADJUSTER ASSEMBLY RH




(a) Check the operation of the power seat motor (front vertical motor).
(1) Check if the seat adjuster moves smoothly when the battery is connected to the slide motor connector terminals.
OK:






NG -- REPLACE FRONT SEAT ADJUSTER ASSEMBLY RH
OK -- Continue to next step.

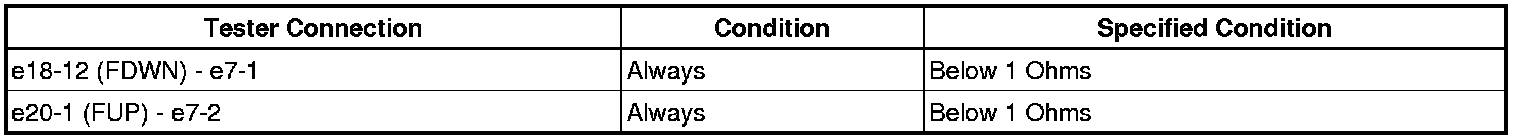

15. CHECK HARNESS AND CONNECTOR (FRONT POWER SEAT SWITCH RH - POWER SEAT MOTOR)

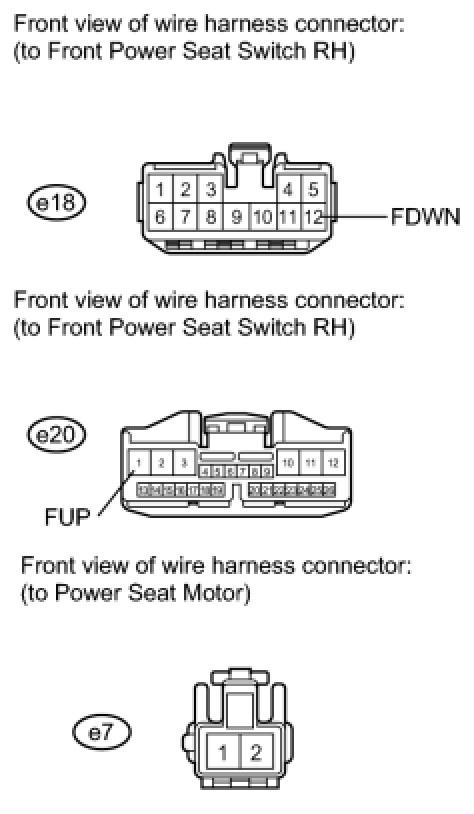

(a) Disconnect the e18 and e20 switch connectors.
(b) Disconnect the e7 motor connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE FRONT POWER SEAT SWITCH RH
