Fuel Delivery and Air Induction: Description and Operation

2GR-FSE FUEL: FUEL SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

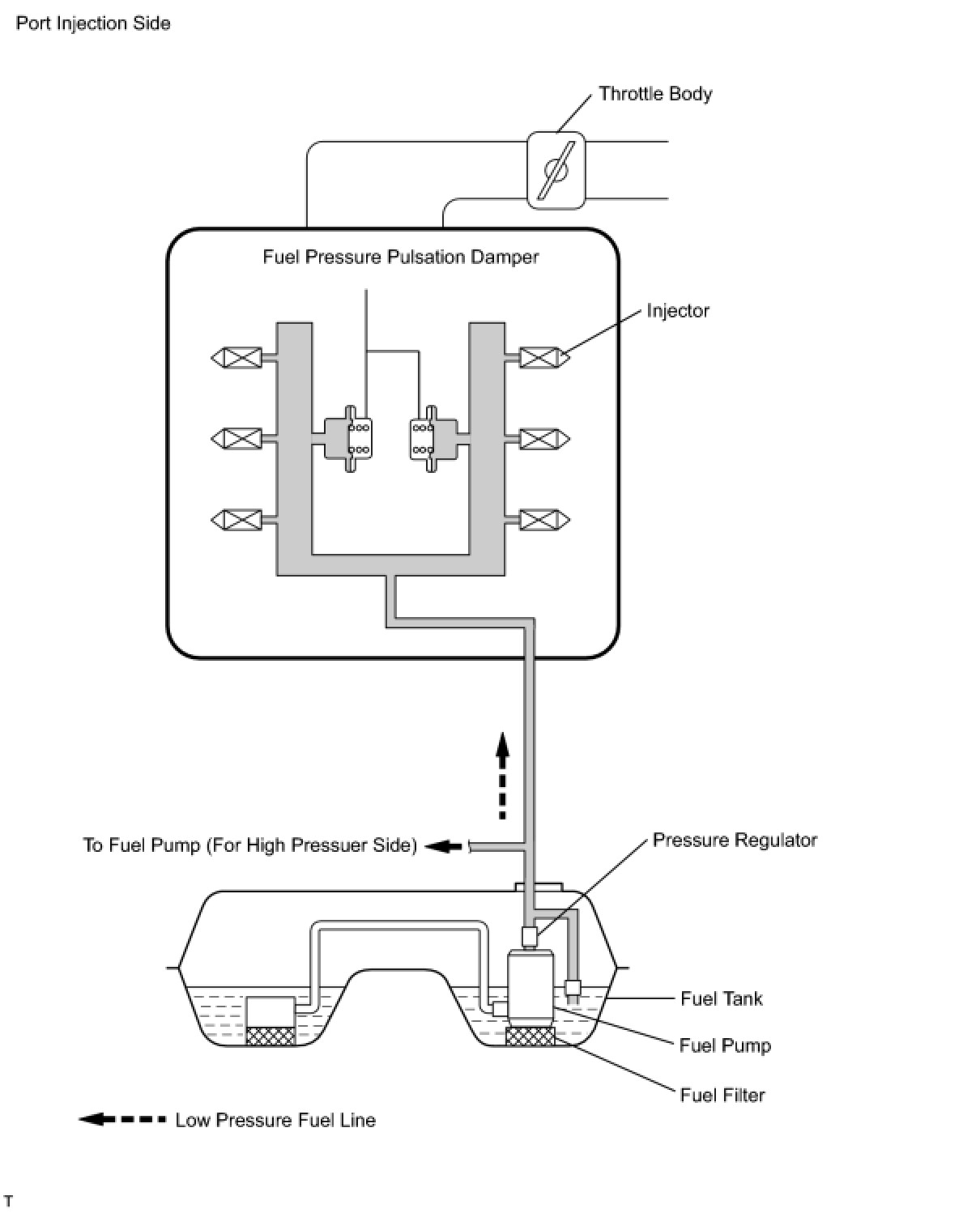

1. FUEL FLOW DIAGRAM

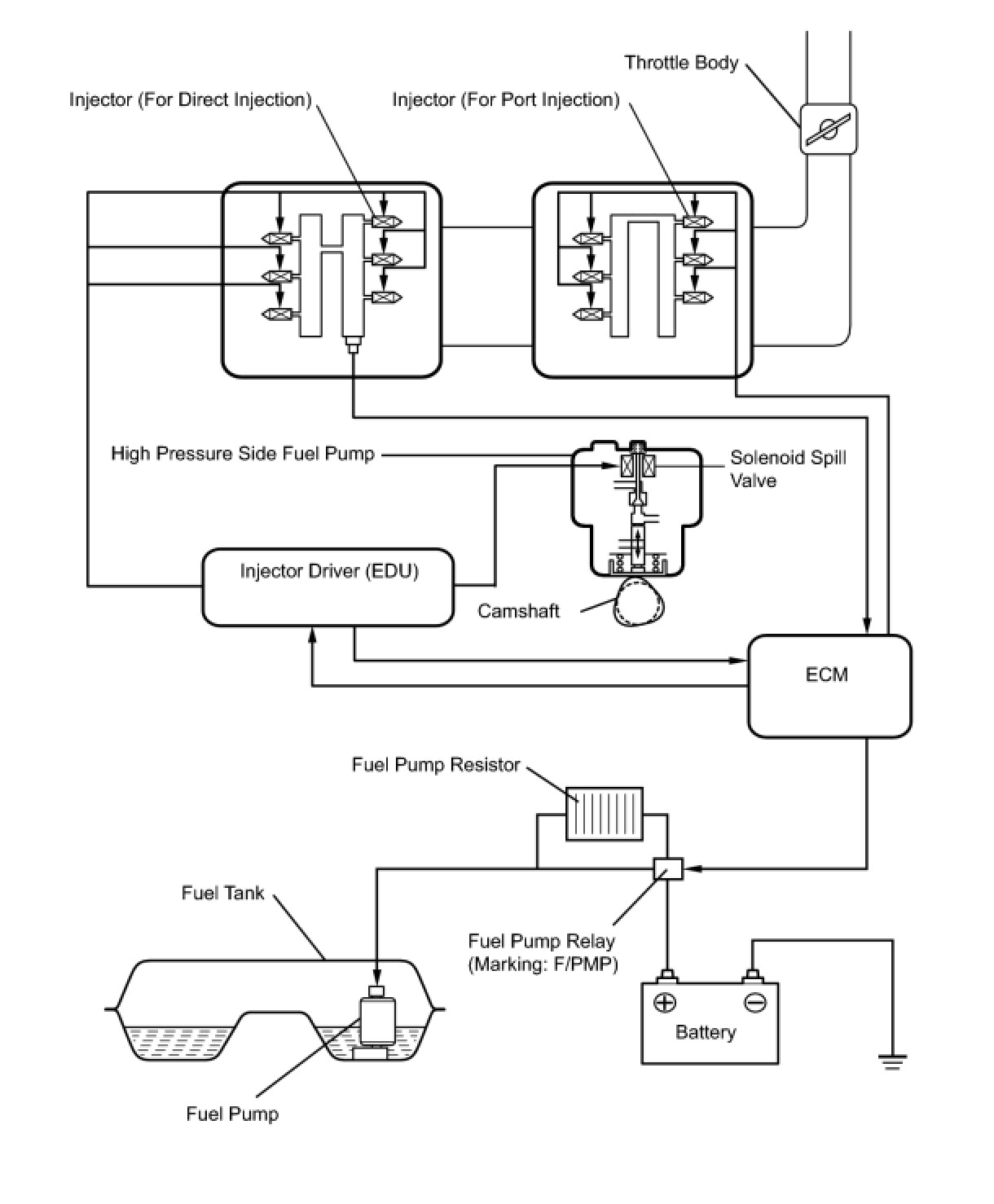

2. ELECTRICAL CONTROL DIAGRAM

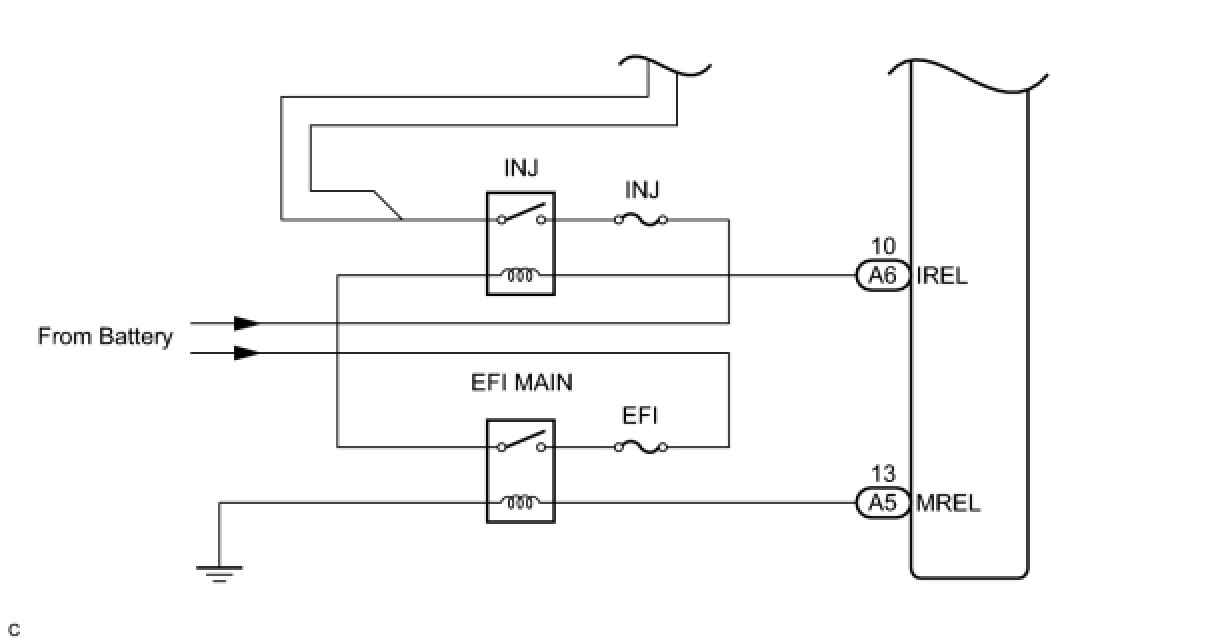

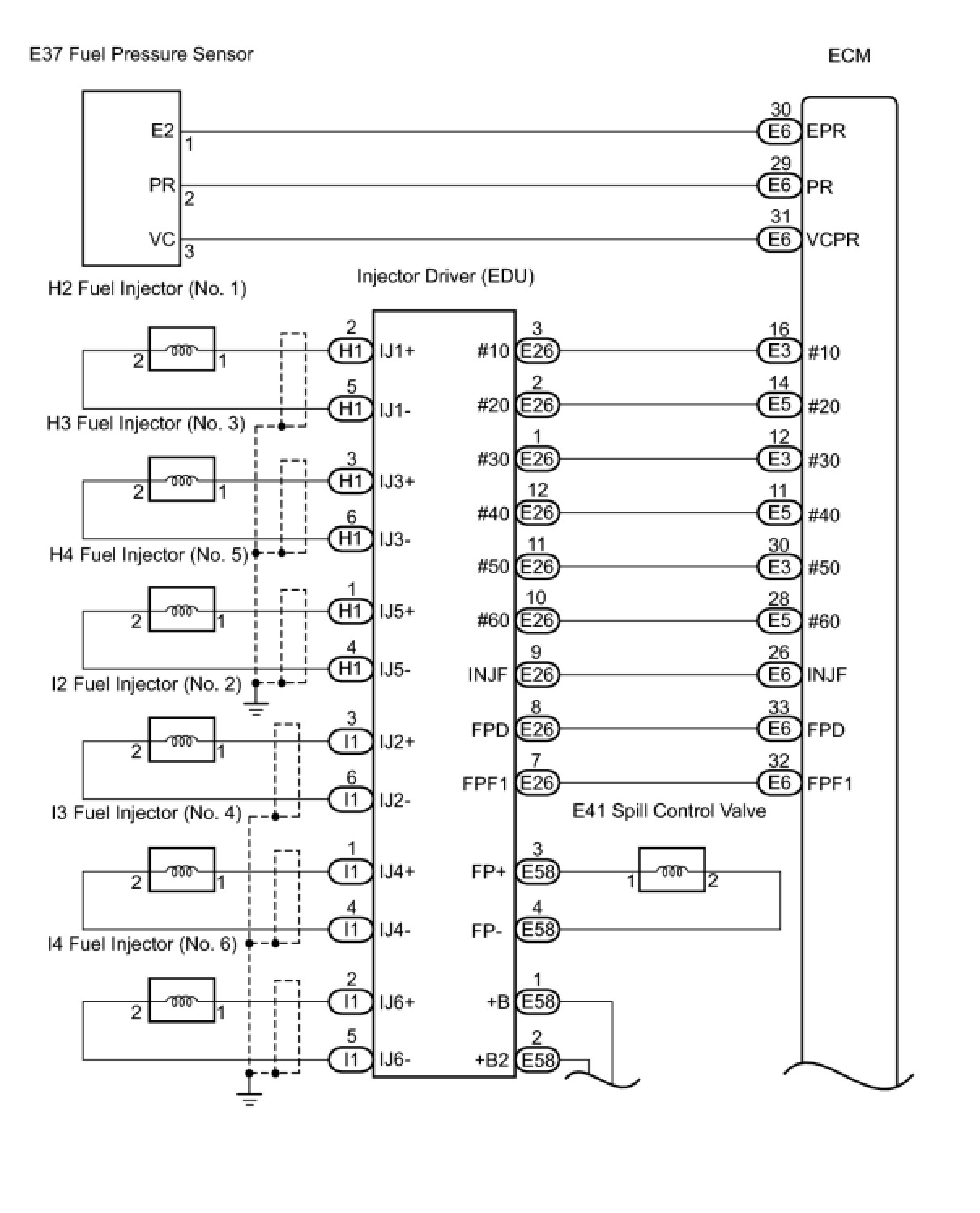

3. HIGH PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

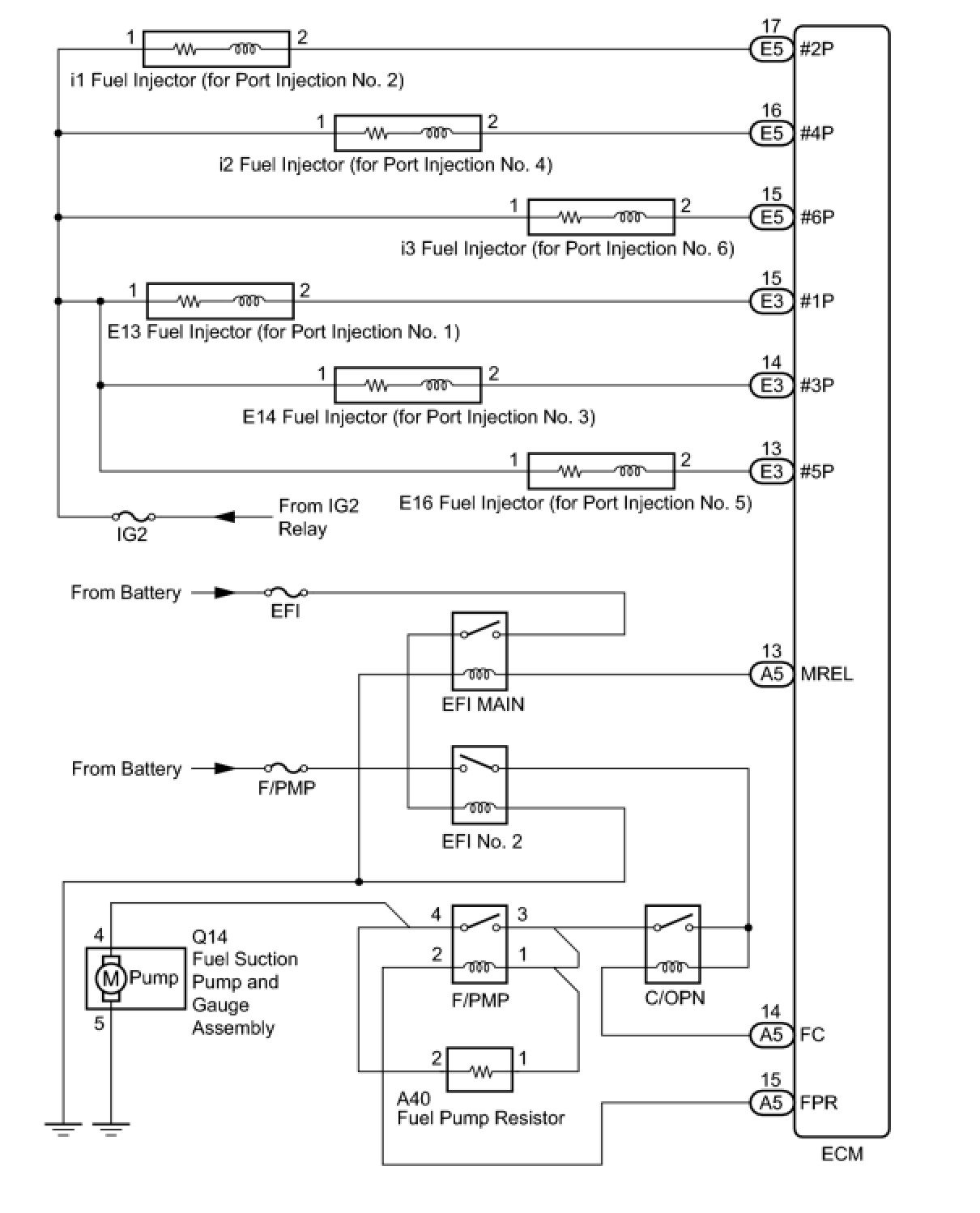

4. LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM
