Window Shade: Description and Operation

INTERIOR: REAR SUNSHADE SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. REAR SUNSHADE SYSTEM DESCRIPTION
(a) The rear sunshade is raised or lowered by operating the rear sunshade switch located in the instrument panel No. 1 safety pad.
(b) When the shift lever is on R, the PNP switch (A/T) or back-up light switch (M/T) sends a reverse-linked signal to the rear sunshade relay, and the rear sunshade lowers.
(c) When the shift lever is moved to D or S (A/T), shift lever is move to any position other than R (M/T) or the vehicle speed is 15 km/h (9.3 mph) or more, the rear sunshade is redeployed.
(d) Using the Techstream, the reverse-linked sunshade lowering function's response time can be customized to one of the following (seconds): 0, 0.7, 0.9, 1.2.

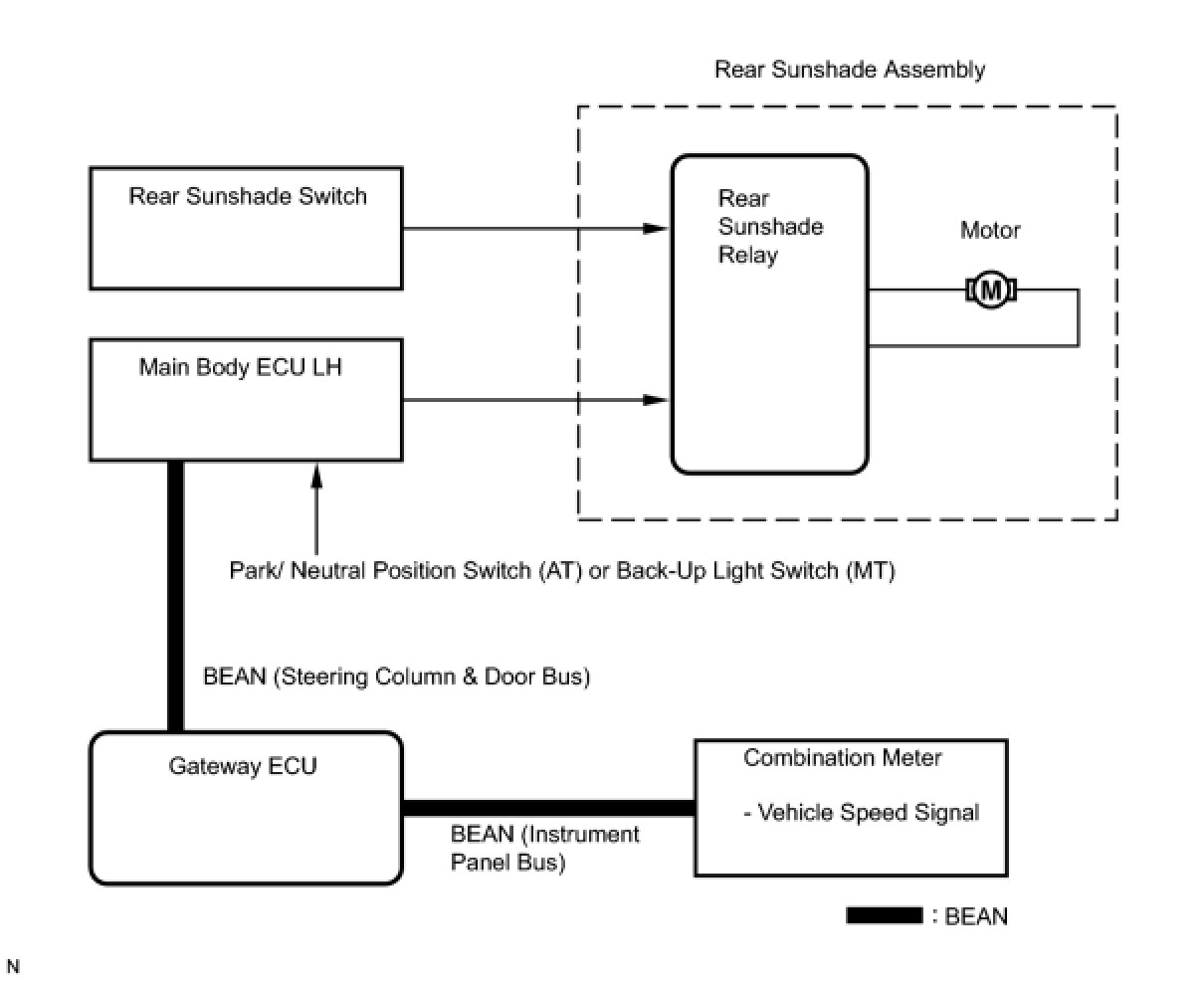

SYSTEM DIAGRAM





Communication table
