Counter Gear and Reverse Idler Gear
Counter Gear and Reverse Idler Gear

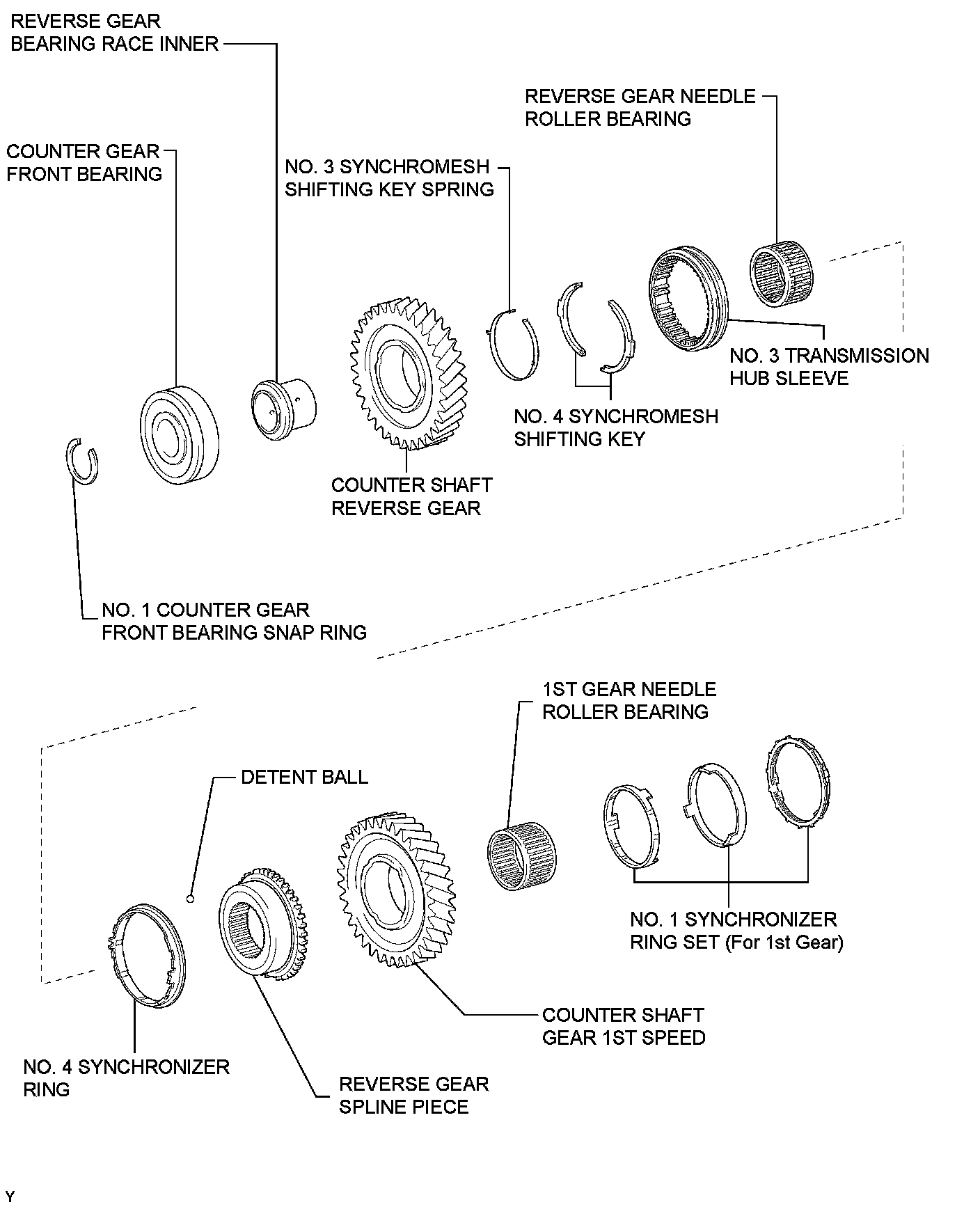

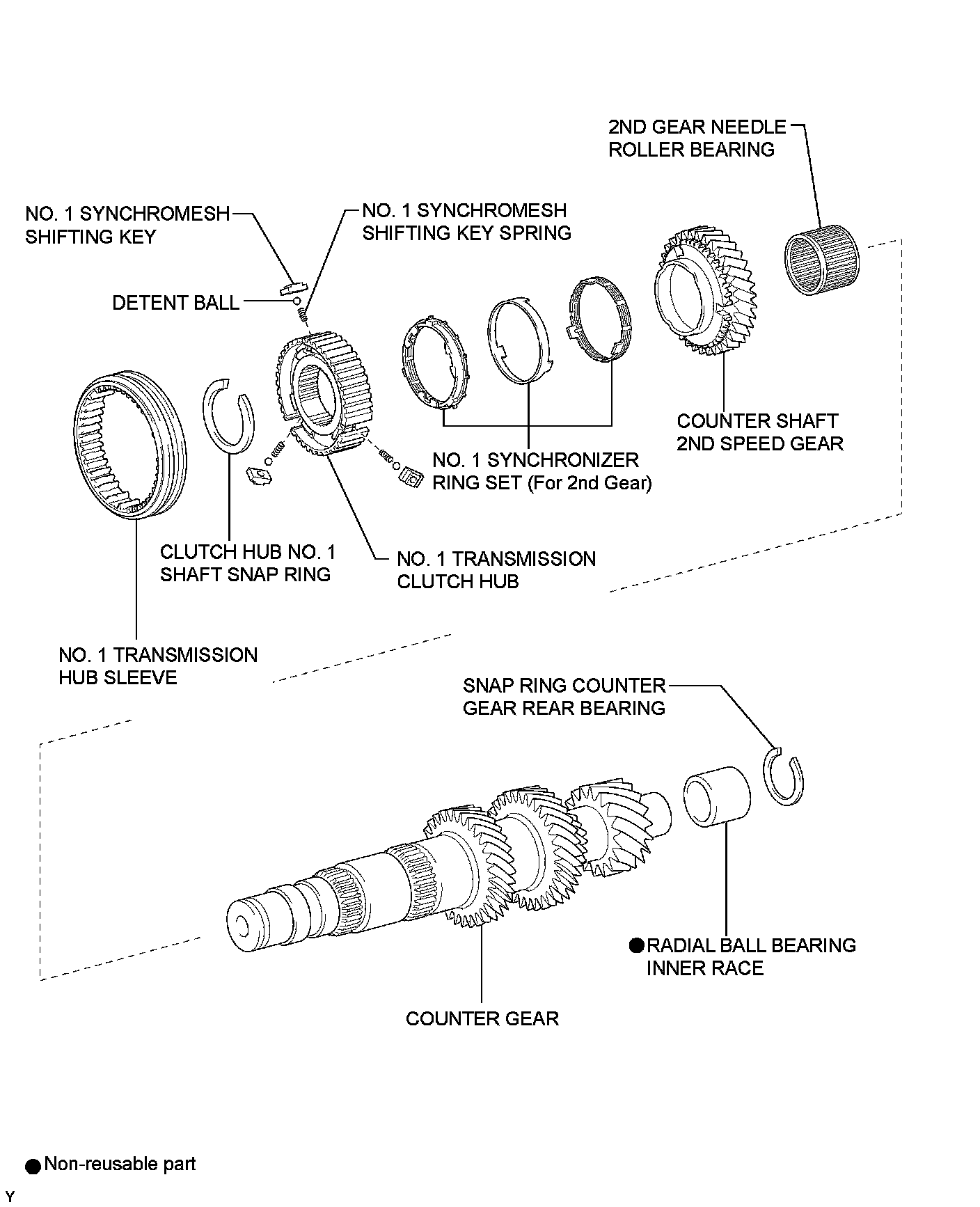

RA62 MANUAL TRANSMISSION: COUNTER GEAR AND REVERSE IDLER GEAR: COMPONENTS
COMPONENTS
ILLUSTRATION
