Installation

CLUTCH: CLUTCH ACCUMULATOR: INSTALLATION

INSTALLATION

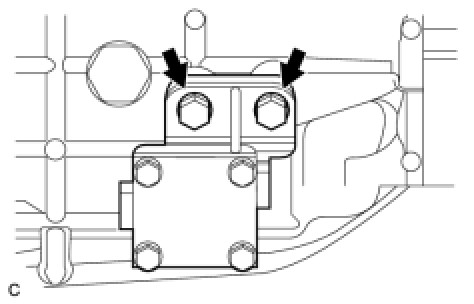

1. TEMPORARILY TIGHTEN CLUTCH ACCUMULATOR ASSEMBLY





(a) Temporarily tighten the clutch accumulator with the 2 bolts.
2. CONNECT CLUTCH TUBE

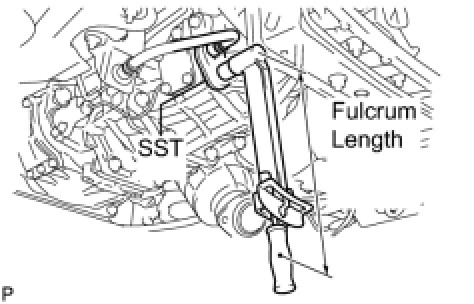

(a) Using SST, connect the clutch tube.
SST: 09023-12701
When using SST - Torque: 21 Nm (216 kgf-cm, 16 ft-lbf)
When not using SST - Torque: 23 Nm (235 kgf-cm, 17 ft-lbf)
HINT:
Use a torque wrench with a fulcrum length of 345 mm (13.58 in.).





(b) Connect the clutch tube to the bracket with a new clip.

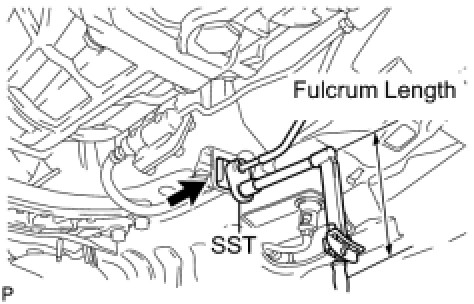

(c) Using SST, connect the clutch tube.
SST: 09023-00101
Torque: 15 Nm (153 kgf-cm, 11 ft-lbf)
HINT:
Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

3. CONNECT CLUTCH LINE

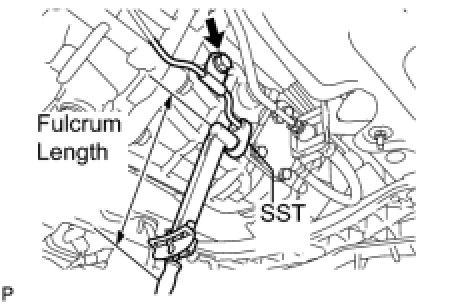

(a) Using SST, connect the clutch line.
Torque: 15 Nm (153 kgf-cm, 11 ft-lbf)
HINT:
Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

(b) Temporarily tighten the clutch line with the bolt.

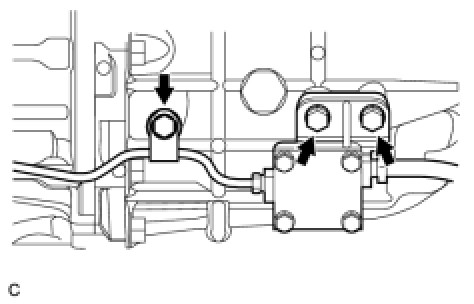

4. FULLY TIGHTEN CLUTCH ACCUMULATOR ASSEMBLY
(a) Fully tighten the clutch accumulator with the 3 bolts.
Torque: 12 Nm (120 kgf-cm, 9 ft-lbf)
5. BLEED CLUTCH LINE
(a) Fill the brake reservoir with the brake fluid and bleed the clutch system Procedures.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)
6. CHECK FOR BRAKE FLUID LEAKAGE
(a) Check for leakage in the clutch system.
7. CHECK FOR BRAKE FLUID LEVEL IN RESERVOIR
