A960E AUTOMATIC TRANSMISSION: SHIFT LEVER ASSEMBLY: DISASSEMBLY

DISASSEMBLY

1. REMOVE SHIFT POSITION INDICATOR

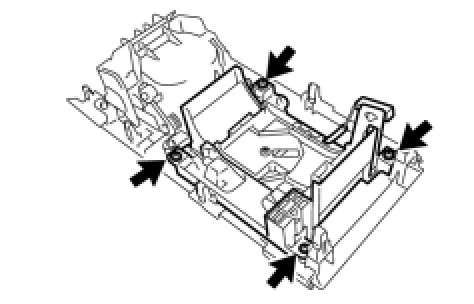

(a) Remove the 4 screws and shift position indicator.
2. REMOVE TRANSMISSION CONTROL SWITCH





(a) Remove the transmission control switch connector from the floor shift assembly.





(b) Remove the shift lever nut and lock pin from the floor shift assembly.
(c) Remove the shift lever guide housing from the floor shift assembly.
NOTE:
First remove the shift lever nut and lock pin, then disengage the 2 claws.





(d) Remove the transmission control switch from the shift lever guide housing.
3. REMOVE SHIFT LOCK CONTROL ECU SUB-ASSEMBLY

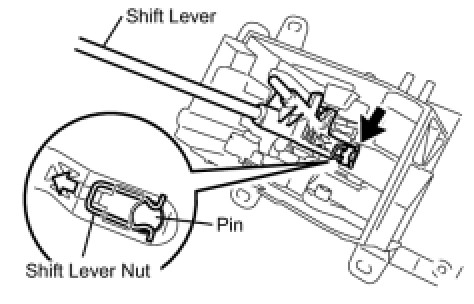

(a) Remove the shift lever nut, and pull the pin.
(b) Remove the shift lever sub-assembly.

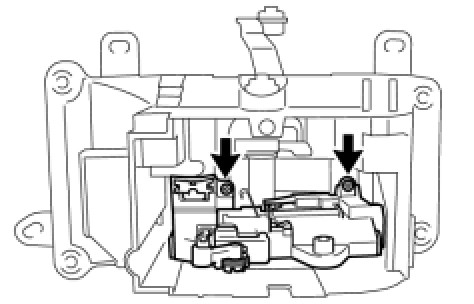

(c) Remove the 2 screws and shift lock control ECU sub-assembly.
