A960E AUTOMATIC TRANSMISSION: EXTENSION HOUSING REAR OIL SEAL: REMOVAL

REMOVAL

1. REMOVE NO. 2 ENGINE UNDER COVER
2. DRAIN AUTOMATIC TRANSMISSION FLUID Removal
3. REMOVE NO. 1 FLOOR UNDER COVER Removal
4. REMOVE NO. 2 FLOOR UNDER COVER Removal
5. REMOVE OXYGEN SENSOR Removal
6. REMOVE NO. 1 REAR FLOOR PANEL BRACE Removal
7. REMOVE FRONT CENTER FLOOR BRACE Removal
8. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal
9. REMOVE FRONT FLOOR NO. 1 HEAT INSULATOR Removal
10. REMOVE OUTSIDE AIR GUIDE PLATE RH Removal
11. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY Removal
12. REMOVE AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL

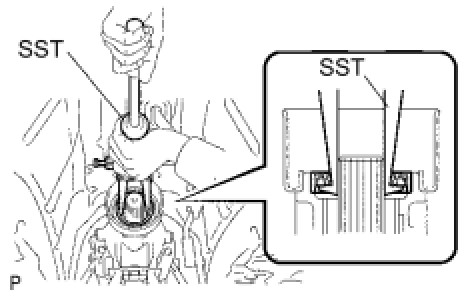

(a) Using SST, remove the oil seal.
SST: 09308-00010
