A960E AUTOMATIC TRANSMISSION: EXTENSION HOUSING REAR OIL SEAL: INSTALLATION

INSTALLATION

1. INSTALL AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL





(a) Coat the lip of a new oil seal with MP grease.

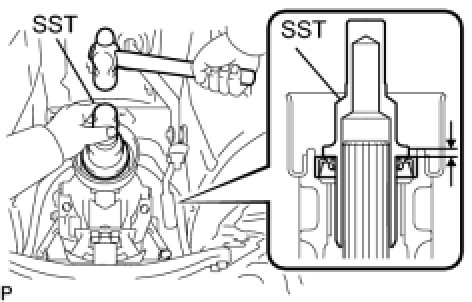

(b) Using SST and a hammer, drive in a new oil seal.
SST: 09325-40010
Oil seal drive in depth:
5.4 to 5.8 mm (0.213 to 0.228 in.)
NOTICE:
- Keep the lip free from foreign matter.
- Do not tap the oil seal at an angle.

2. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY Installation
3. REMOVE OUTSIDE AIR GUIDE PLATE RH Installation
4. INSTALL FRONT FLOOR NO. 1 HEAT INSULATOR Installation
5. INSTALL FRONT EXHAUST PIPE ASSEMBLY Installation
6. INSTALL OXYGEN SENSOR Installation
7. INSTALL FRONT CENTER FLOOR BRACE Installation
8. INSTALL NO. 1 REAR FLOOR PANEL BRACE Installation
9. INSTALL NO. 2 FLOOR UNDER COVER Installation
10. INSTALL NO. 1 FLOOR UNDER COVER Installation
11. ADD AUTOMATIC TRANSMISSION FLUID
Procedures
12. INSTALL NO. 2 ENGINE UNDER COVER
13. CHECK FOR EXHAUST GAS LEAKS Installation
