Initial Inspection and Diagnostic Overview








SUSPENSION: SUSPENSION SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HOW TO PROCEED WITH TROUBLESHOOTING
HINT:

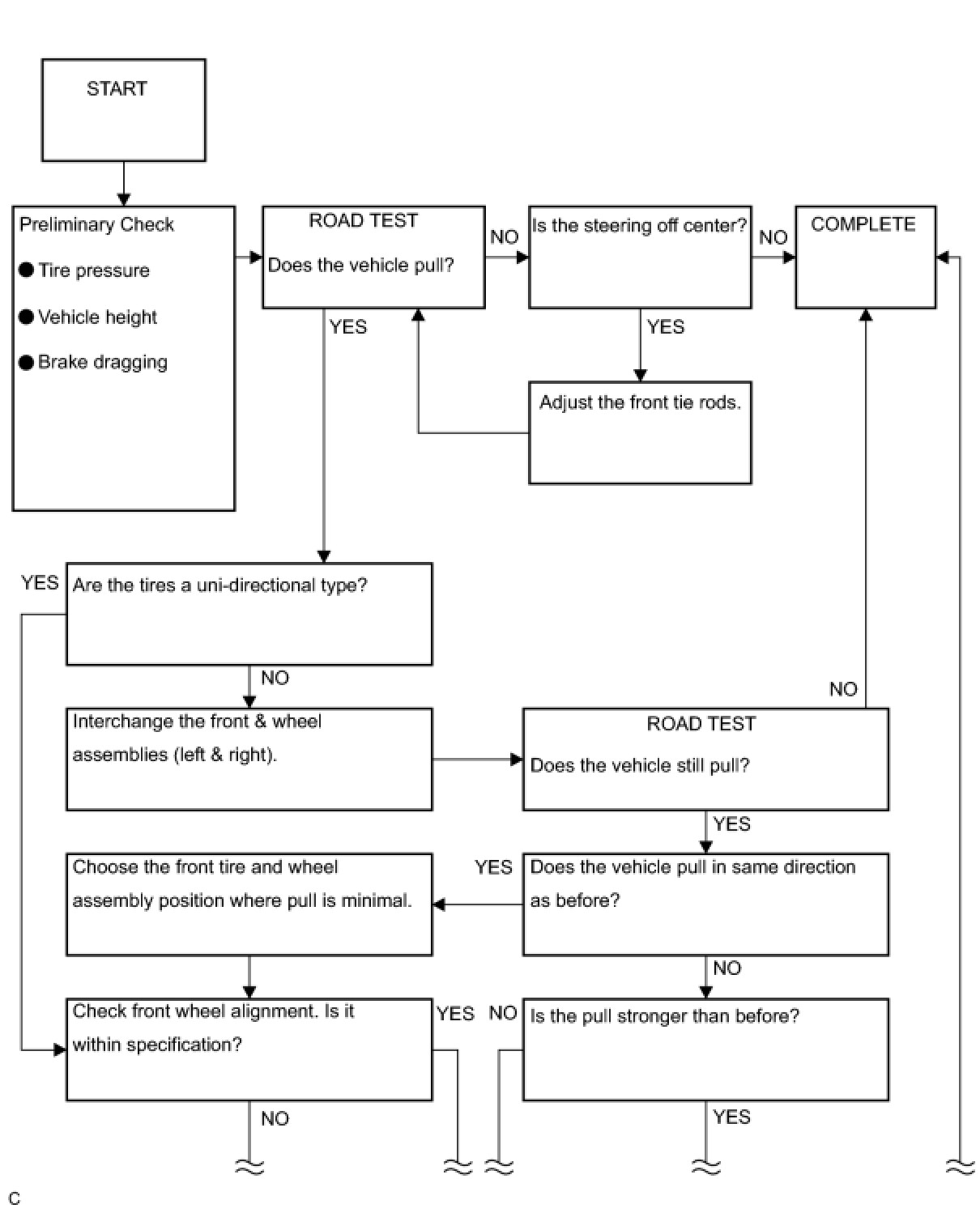

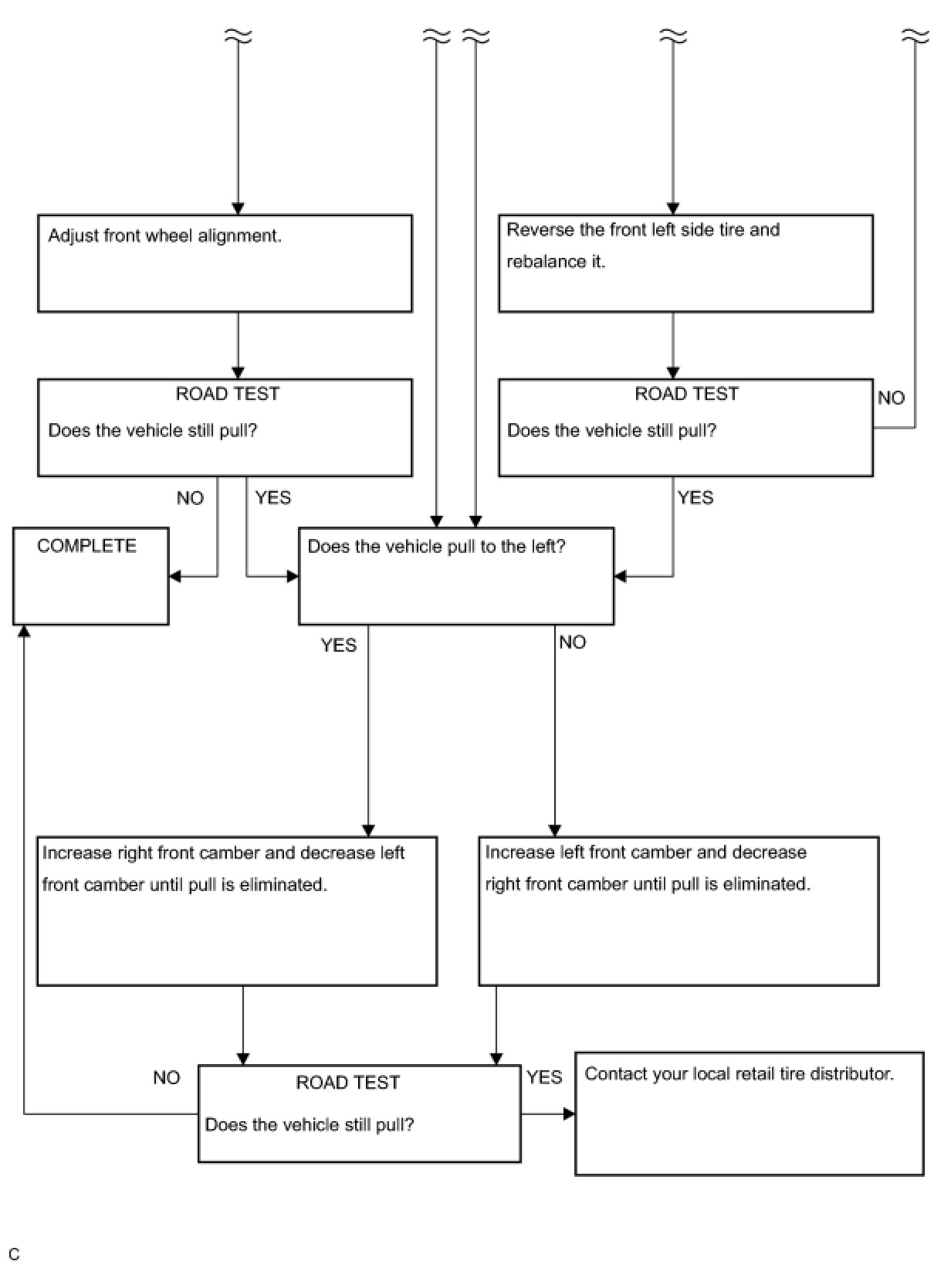

This is a flow chart for vehicle pull.
