Problem Symptoms Table








POWER STEERING: ELECTRONIC POWER STEERING SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

ELECTRONIC POWER STEERING SYSTEM

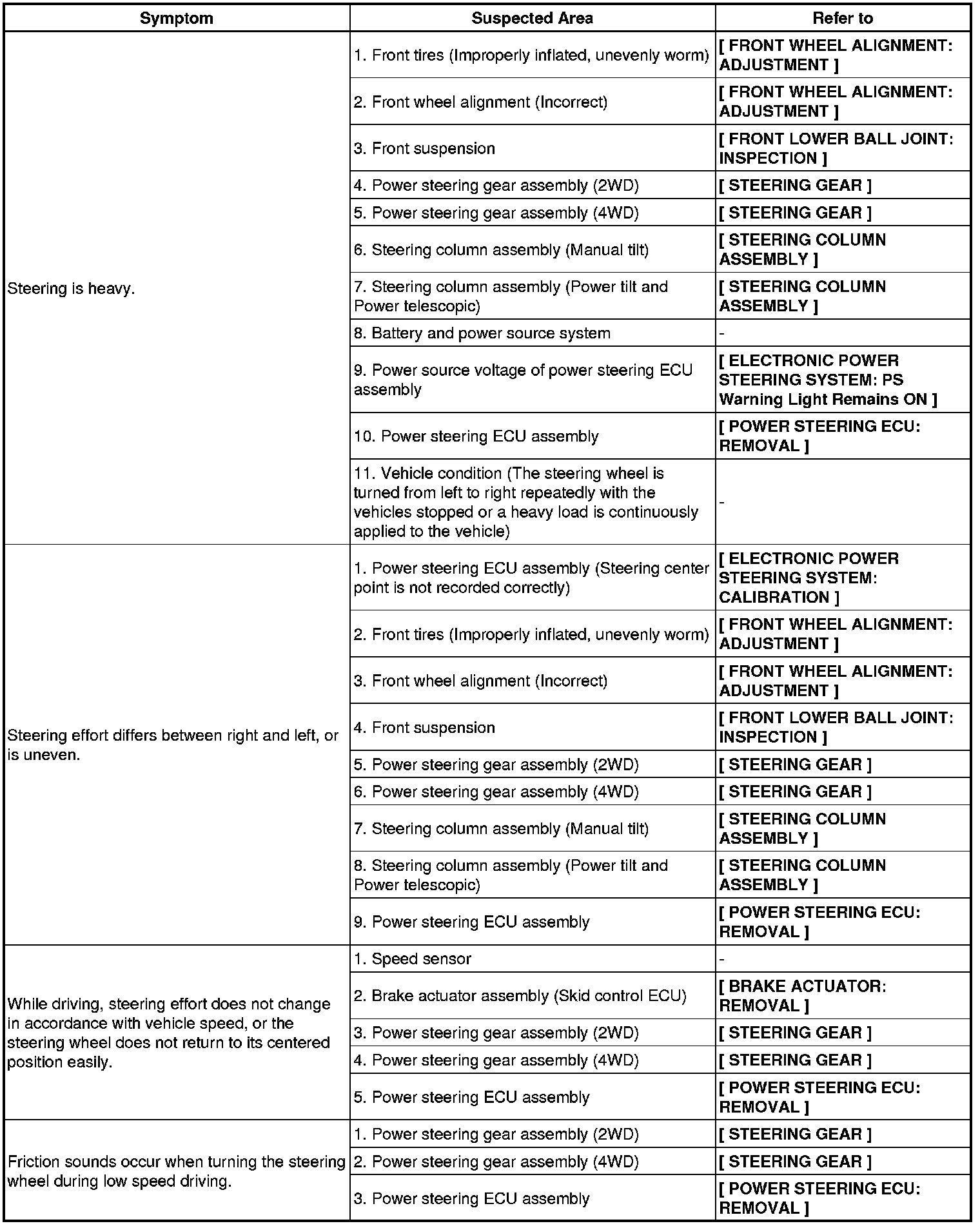

Symptom Chart (Part 1):

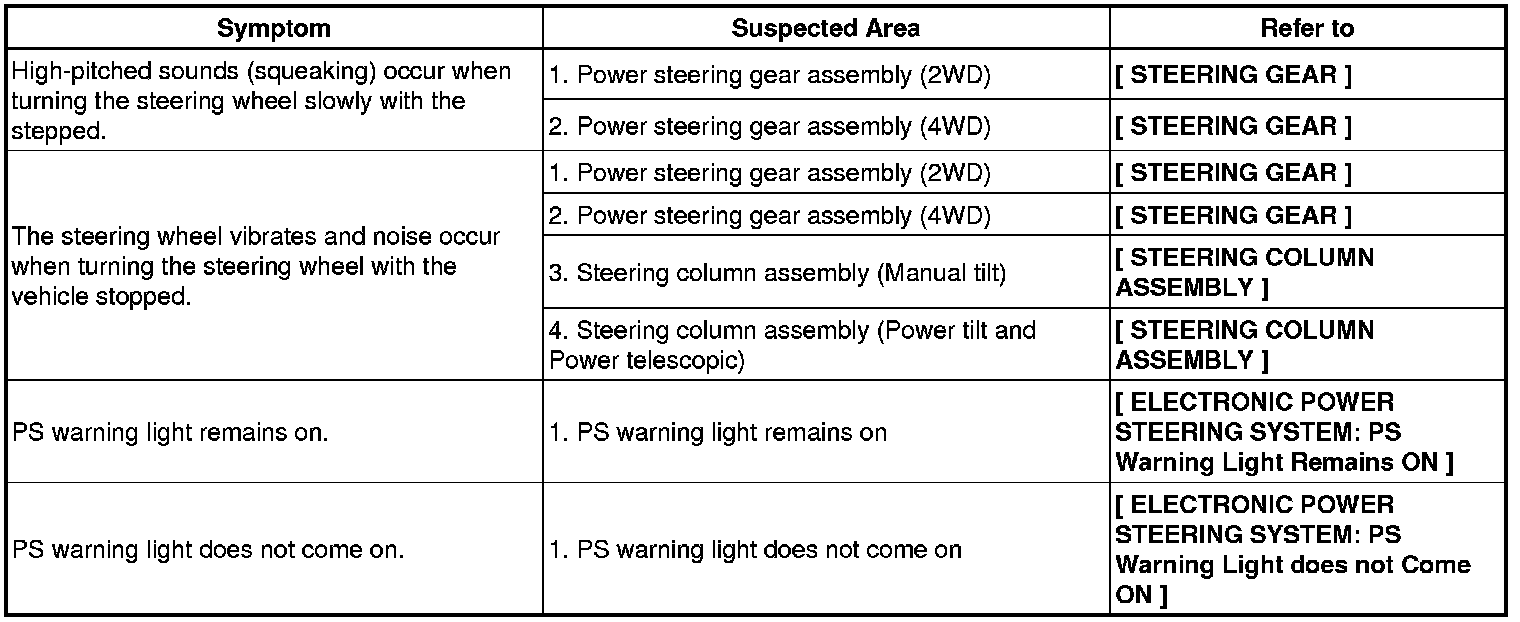

Symptom Chart (Part 2):
