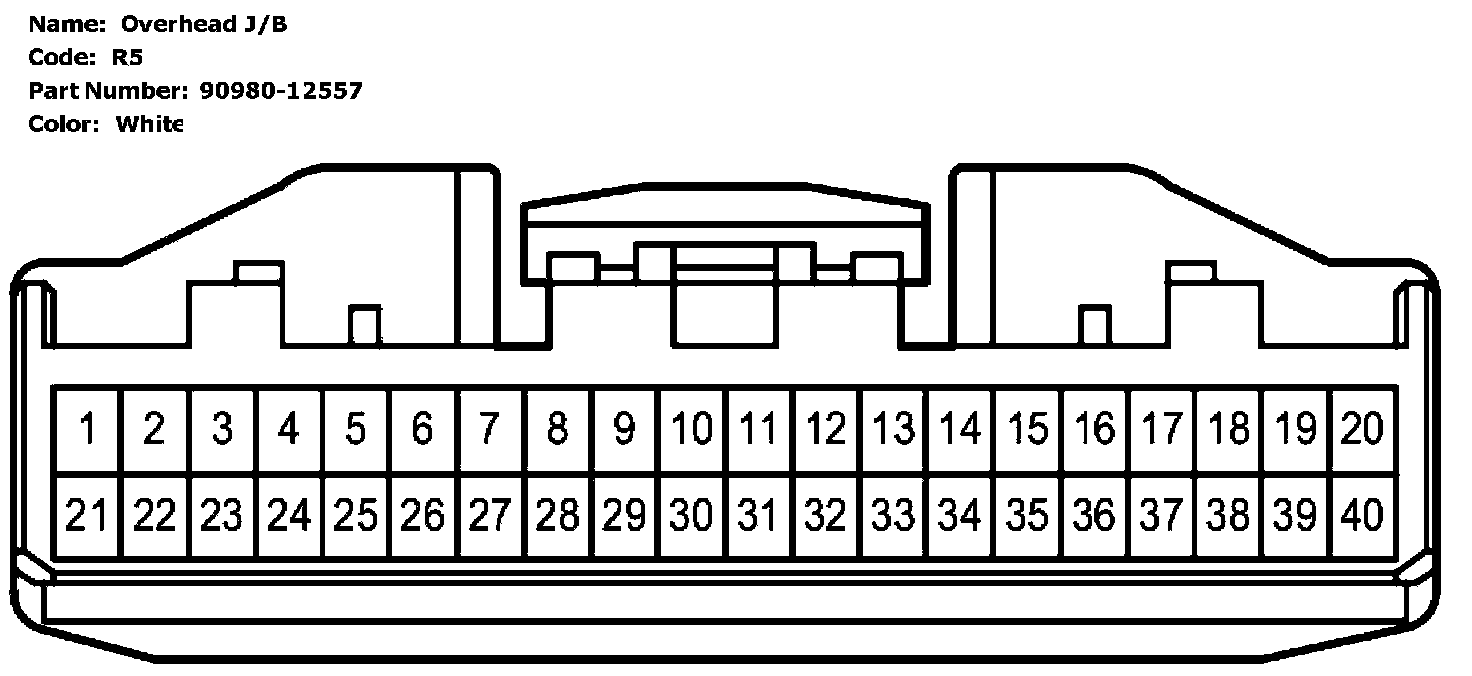

Connector Views

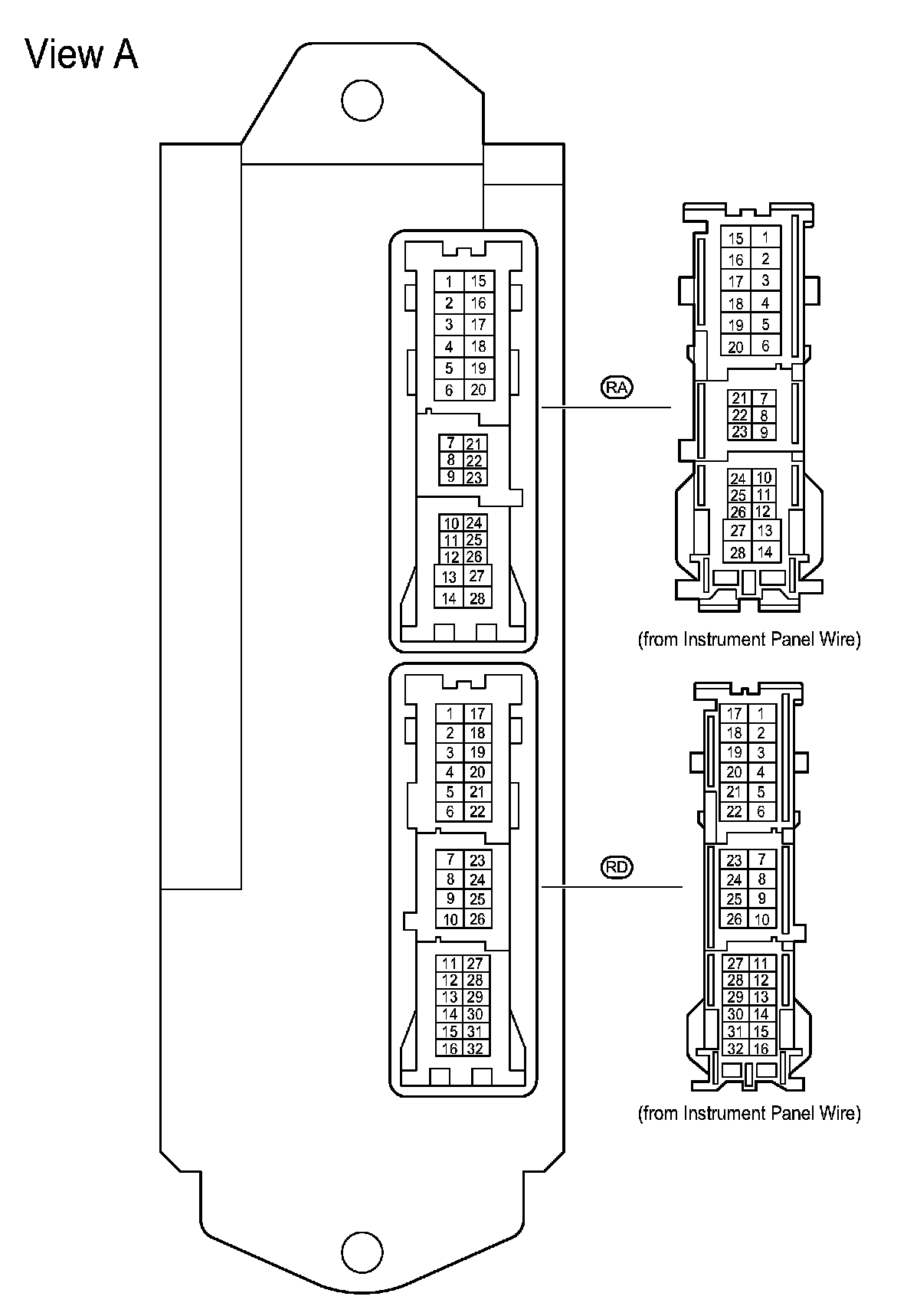

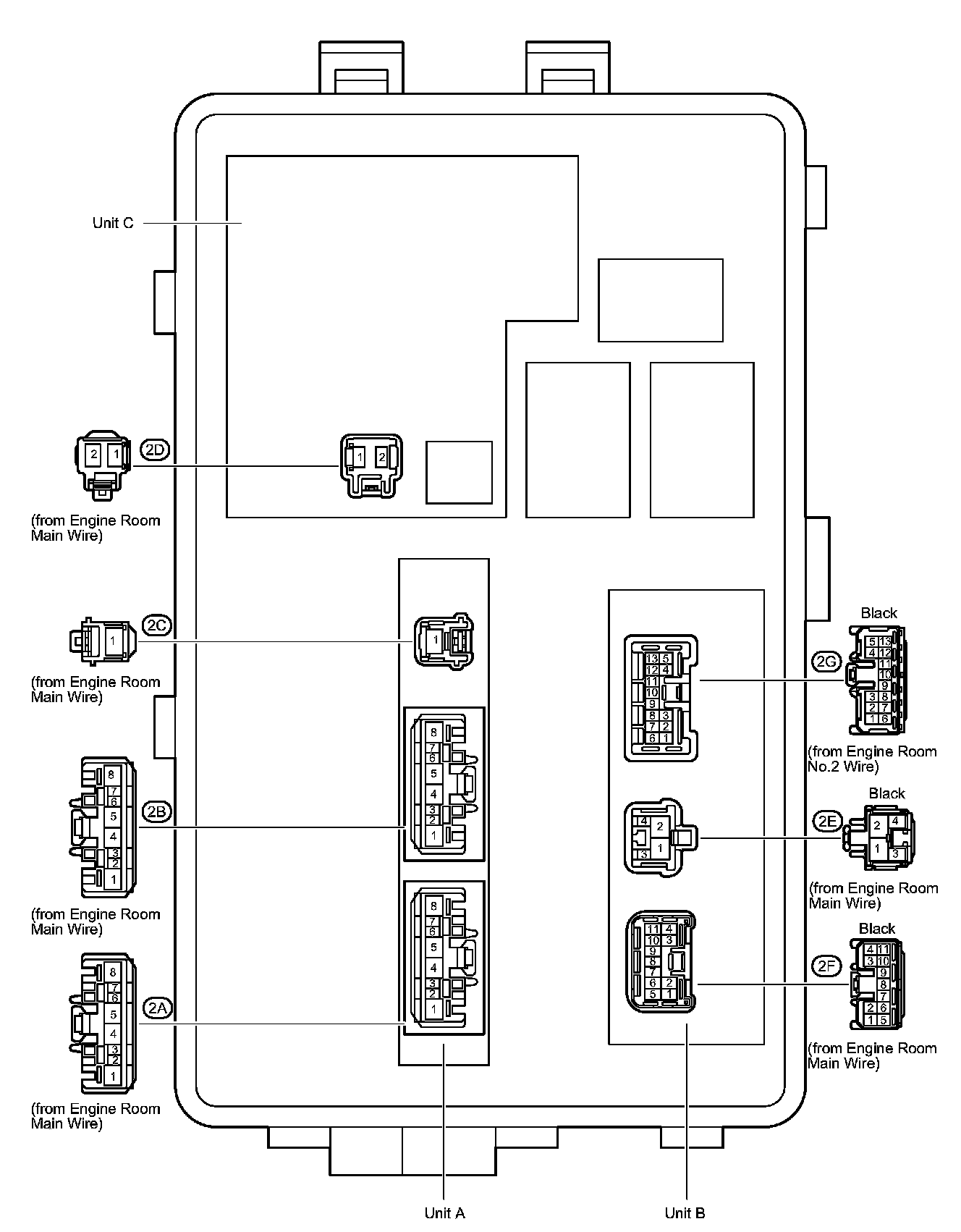

Engine Room R/B And J/B No.2 - Engine Compartment Left:

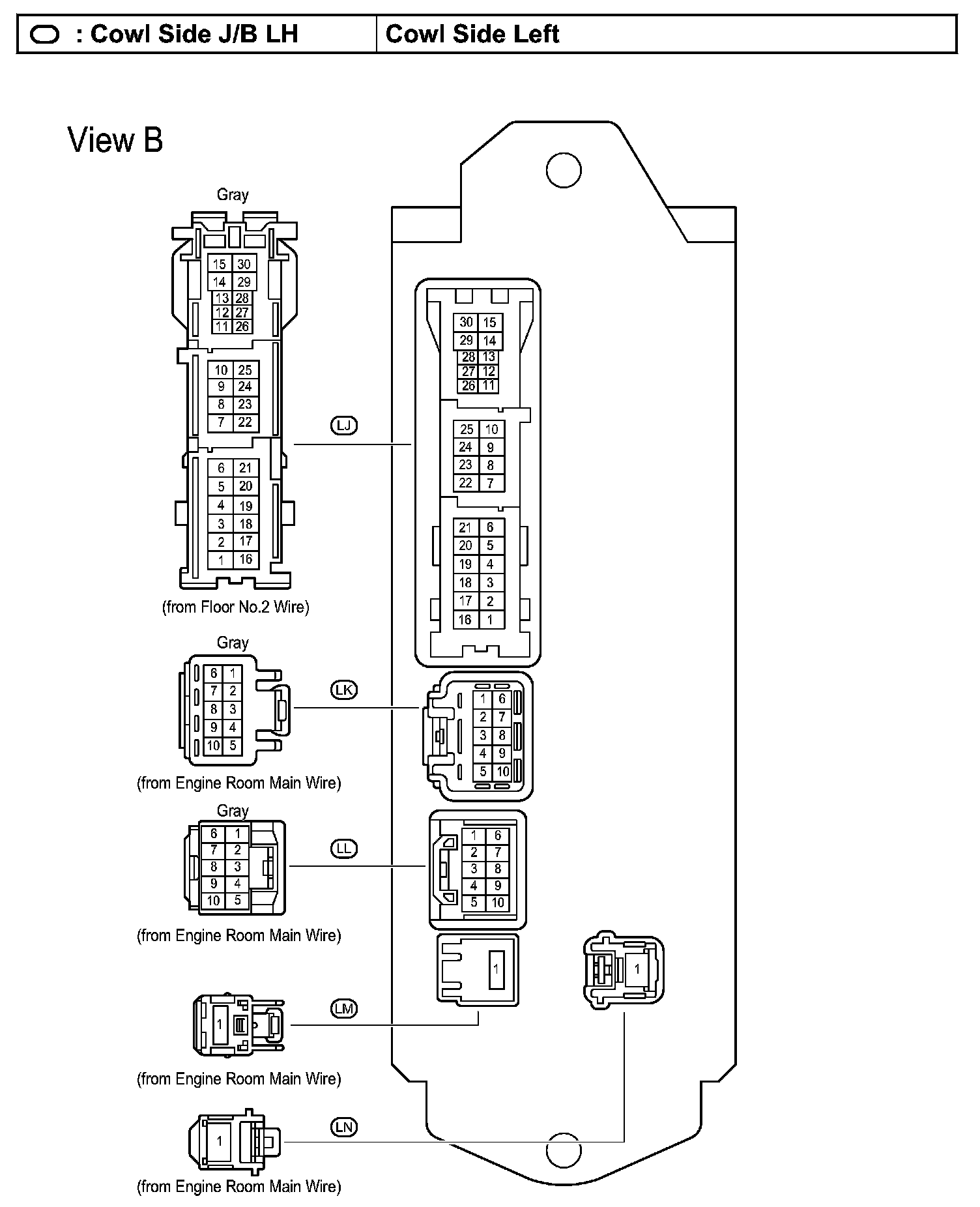

Cowl Side J/B LH - Cowl Side Left:

Cowl Side J/B LH - Cowl Side Left:

Cowl Side J/B LH - Cowl Side Left:

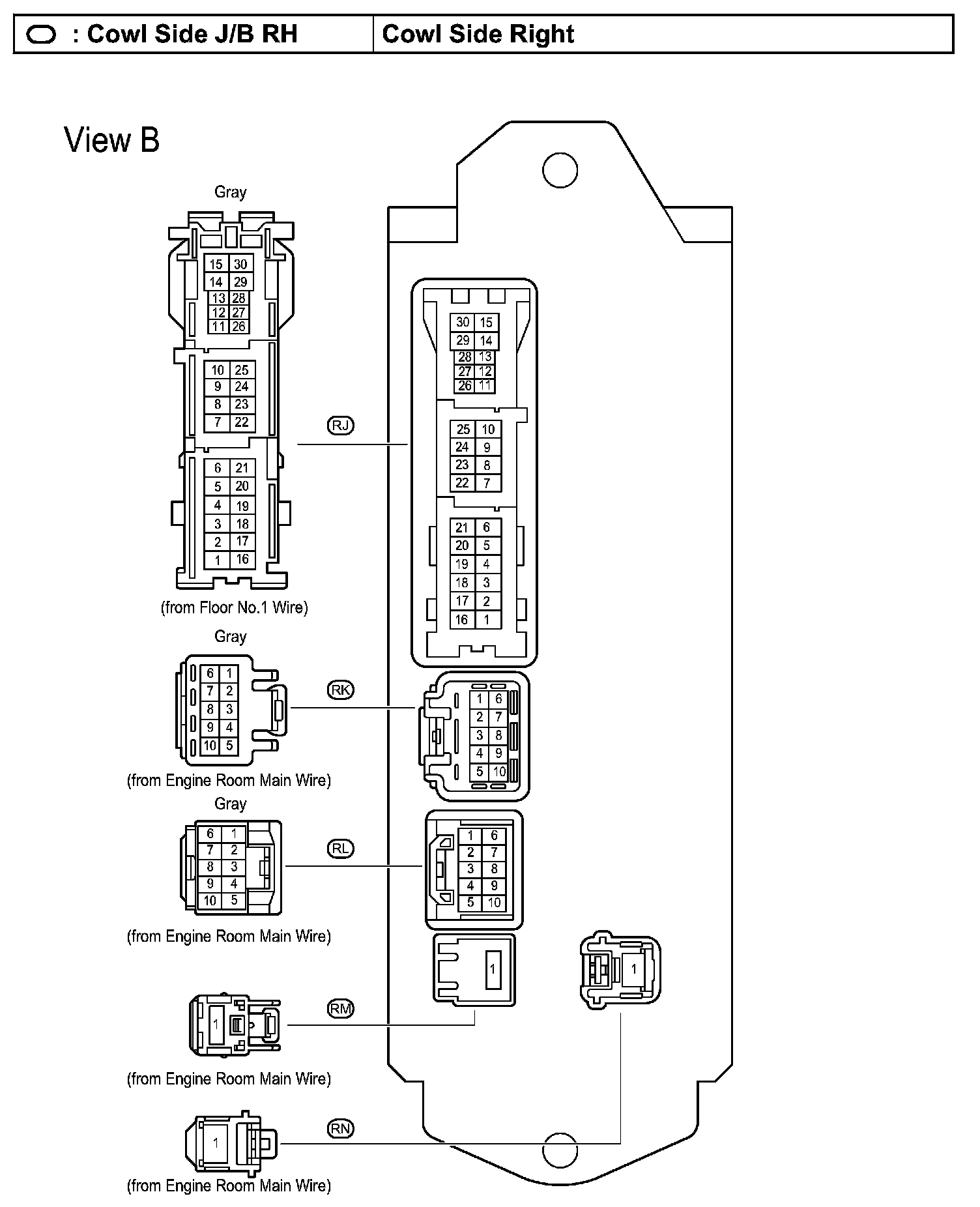

Cowl Side J/B RH - Cowl Side Right:

Cowl Side J/B RH - Cowl Side Right:

Cowl Side J/B RH - Cowl Side Right:

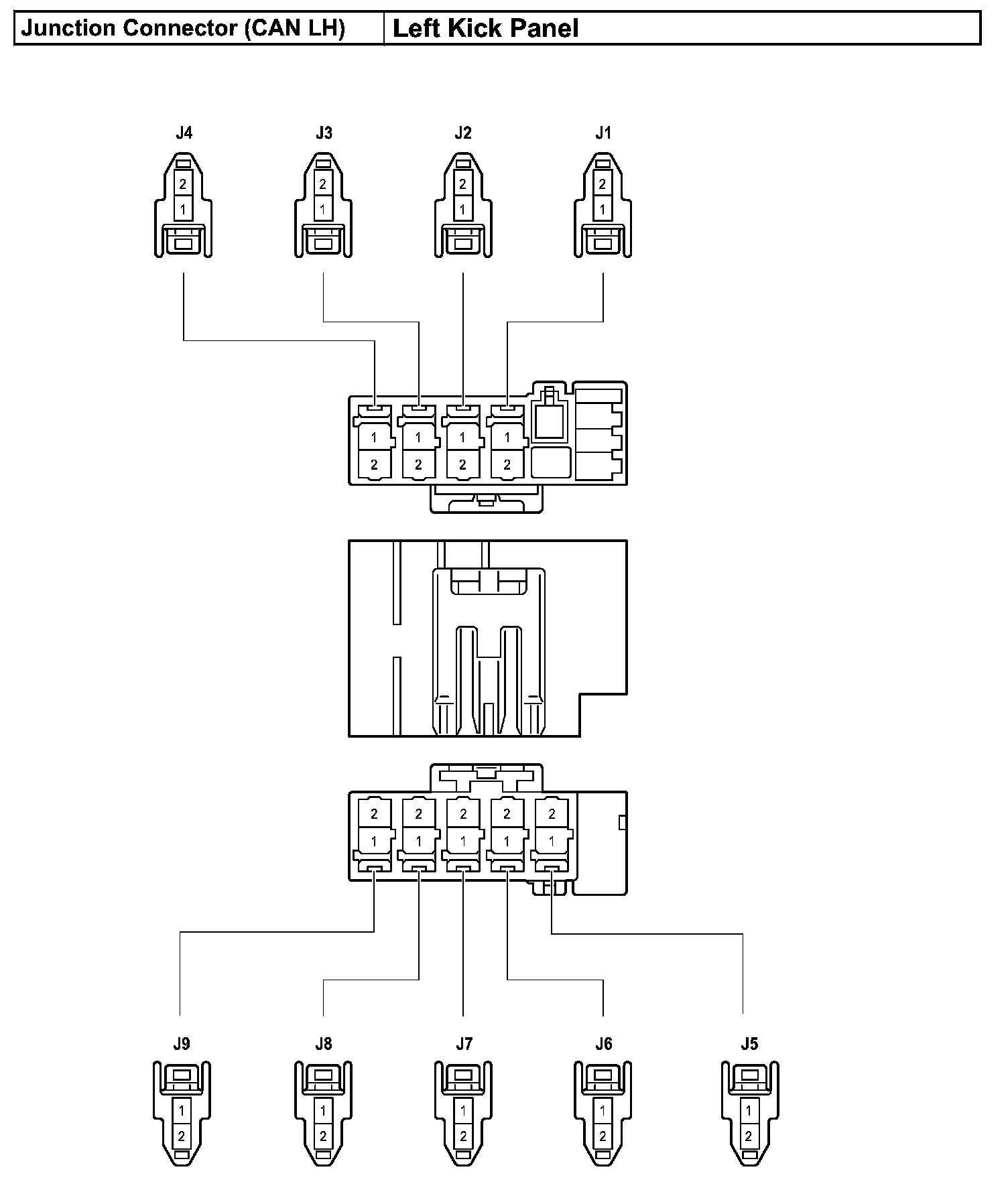

Junction Connector (CAN LH) - Left Kick Panel:

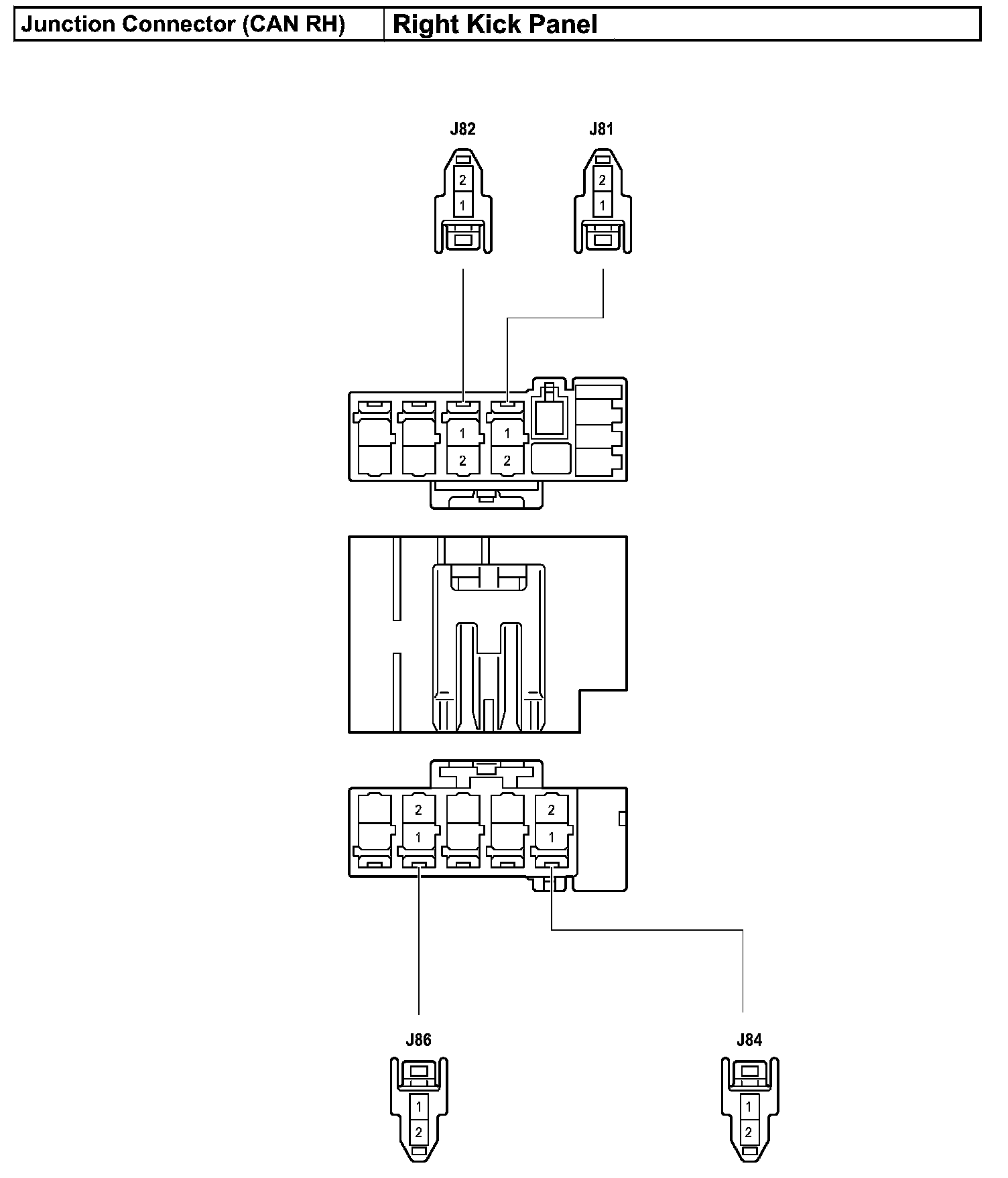

Junction Connector (CAN RH) - Right Kick Panel:

Engine Room R/B And J/B No.1 - Near The Battery:
