Installation

OTHER SYSTEM: CENTER POWER OUTLET SOCKET: INSTALLATION

INSTALLATION

1. INSTALL POWER OUTLET SOCKET ASSEMBLY

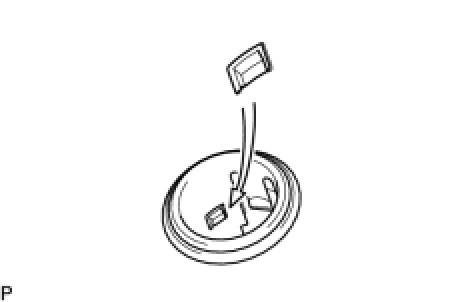

(a) Align the protrusion on the backside of the socket with the groove of the cover. Then push the socket into the cover.
(b) Connect the connector.
2. INSTALL CONSOLE BOX Installation
3. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation
4. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY Installation
5. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation
6. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation
7. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Installation
8. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation
9. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation
10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
