Removal

WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: REMOVAL

REMOVAL

1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

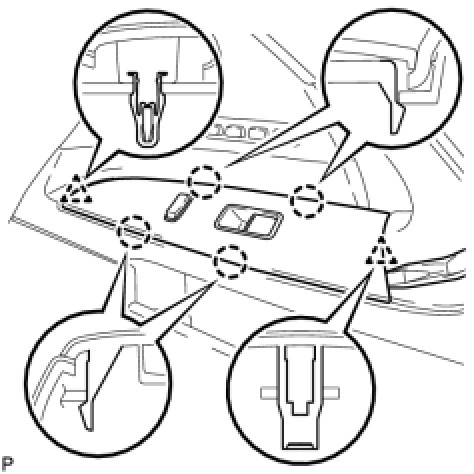

(a) except Wood Panel:




(1) Using a moulding remover, disengage the 4 claws and 2 clips.
(2) Disconnect the connector and remove the power window regulator switch assembly with front door armrest base panel.

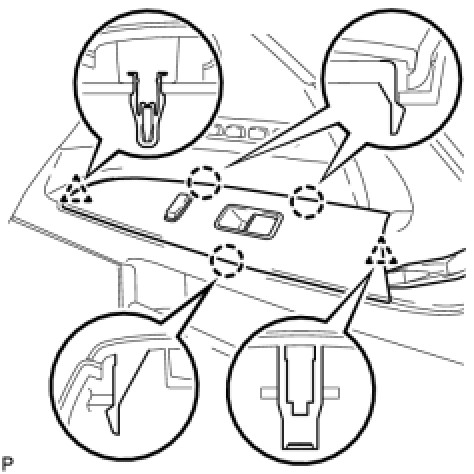

(b) for Wood Panel:




(1) Using a moulding remover, disengage the 3 claws and 2 clips.
(2) Disconnect the connector and remove the power window regulator switch assembly with front door armrest base panel.
2. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY





(a) Disengage the 2 claws and remove the power window regulator switch assembly.
