A960E AUTOMATIC TRANSMISSION: PARK / NEUTRAL POSITION SWITCH: INSTALLATION

INSTALLATION

1. INSTALL NEUTRAL START SWITCH ASSEMBLY

(a) Install the park/neutral position switch to the manual valve shaft.
(b) Temporarily install the bolt.

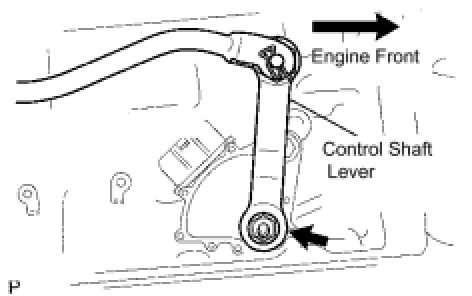

(d) Temporarily install the control shaft lever.

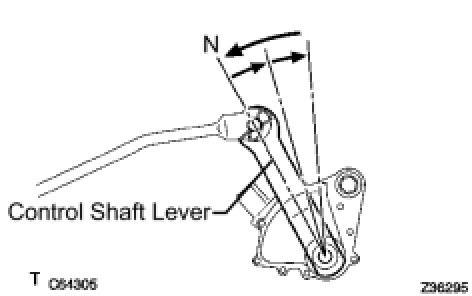

(e) Turn the control shaft lever counterclockwise until it stops, and turn it clockwise 2 notches to set it to the N position.

(f) Remove the transmission control shaft lever.

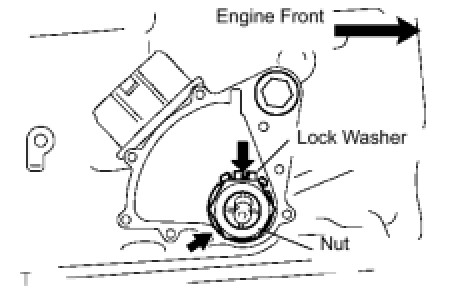

(g) Align the neutral alignment mark line with the switch groove, and tighten the adjusting bolt.
Torque: 13 Nm (130 kgf-cm, 9 ft-lbf)

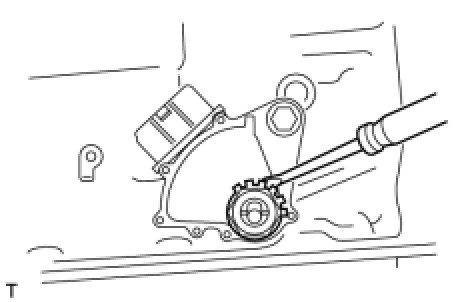

(h) Using a screwdriver, bend the tabs of the lock washer.

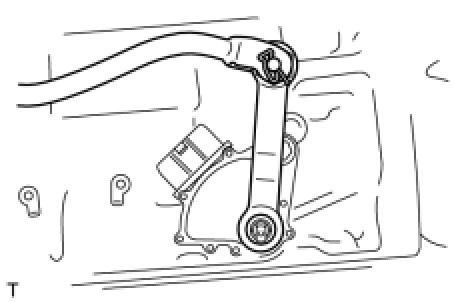

(i) Install the transmission control shaft lever RH with the nut.
Torque: 16 Nm (163 kgf-cm, 12 ft-lbf)

(j) Connect the park/neutral position switch connector.
2. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY Installation
3. ADJUST SHIFT LEVER POSITION Adjustments
4. INSPECT SHIFT LEVER POSITION Shift Lever Assembly
5. INSTALL NO. 2 ENGINE UNDER COVER
6. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY On-Vehicle Inspection
