FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
2009
>>
IS 250 RWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Starting and Charging
>>
Neutral Safety Switch
>>
Service and Repair
>>
A960E Automatic Transmission
>>
Components
Components

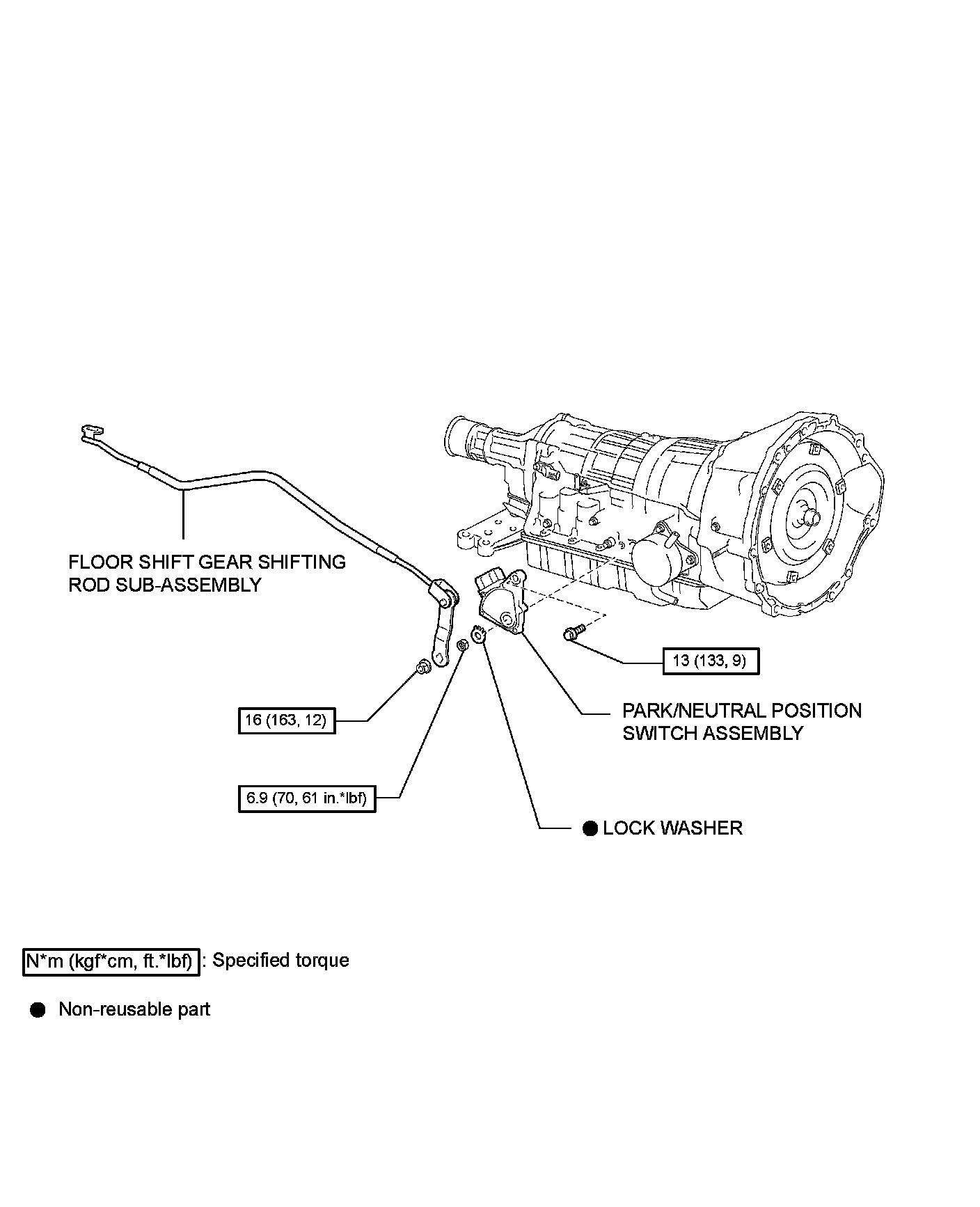

A960E AUTOMATIC TRANSMISSION: PARK / NEUTRAL POSITION SWITCH: COMPONENTS
COMPONENTS
ILLUSTRATION
