Removal

A760H AUTOMATIC TRANSMISSION: PARK / NEUTRAL POSITION SWITCH: REMOVAL

REMOVAL

1. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

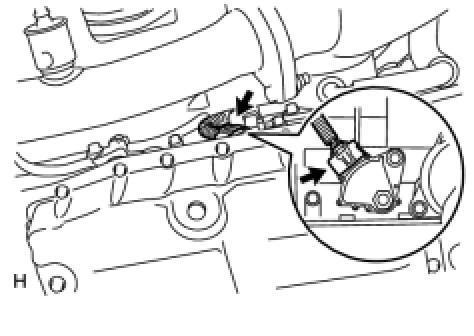

(a) Disconnect the neutral start switch connector.

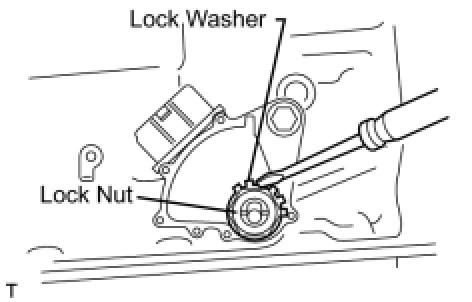

(b) Using a screwdriver, unstake the lock washer.
(c) Remove the lock nut and lock washer.

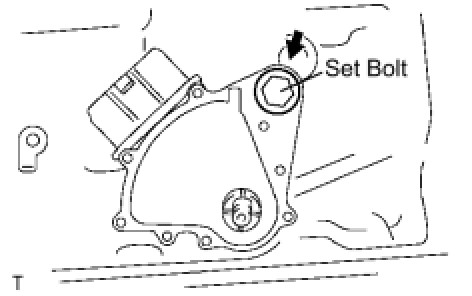

(d) Remove the bolt and park/neutral position switch assembly.
