Removal

A760E AUTOMATIC TRANSMISSION: PARK / NEUTRAL POSITION SWITCH: REMOVAL

REMOVAL

1. REMOVE NO. 2 ENGINE UNDER COVER
2. DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
3. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY





(a) Disconnect the park/neutral position switch connector.

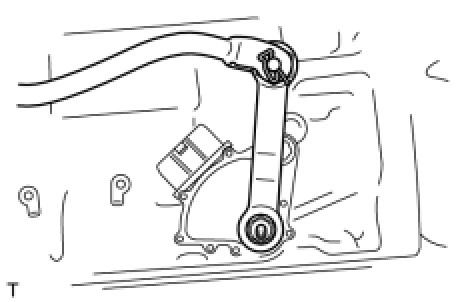

(b) Remove the nut and transmission control shaft lever RH.

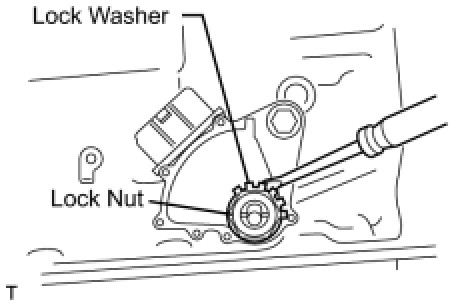

(c) Using a screwdriver, pry out the lock washer.





(d) Remove the lock nut and lock washer.





(e) Remove the bolt and park/neutral position switch.
