Removal

SUPPLEMENTAL RESTRAINT SYSTEM: FRONT AIRBAG SENSOR: REMOVAL

REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. PRECAUTION
CAUTION:
Be sure to read "PRECAUTION" thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

3. REMOVE COOL AIR INTAKE DUCT SEAL Removal
4. REMOVE RADIATOR GRILLE PROTECTOR Removal
5. REMOVE FRONT BUMPER ASSEMBLY Removal
6. REMOVE FRONT BUMPER ENERGY ABSORBER Disassembly
7. REMOVE ENGINE ROOM SIDE COVER LH (for LH Side) Removal
8. REMOVE ENGINE ROOM SIDE COVER RH (for RH Side) Removal
9. REMOVE FRONT UPPER FENDER PROTECTOR Removal
10. REMOVE HEADLIGHT ASSEMBLY Removal
11. REMOVE FRONT AIRBAG SENSOR

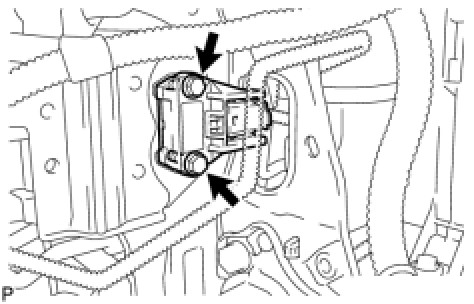

(a) Remove the 2 bolts and front airbag sensor from the body.
(b) Disconnect the connector from the front airbag sensor LH.
