Lexus
>>
2009
>>
IS 250 RWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Powertrain Management
>>
Sensors and Switches - Fuel Delivery and Air Induction
>>
Variable Induction Position Sensor
>>
Locations
>>
Intake System
Intake System
4GR-FSE INTAKE: INTAKE SYSTEM: PARTS LOCATION
PARTS LOCATION

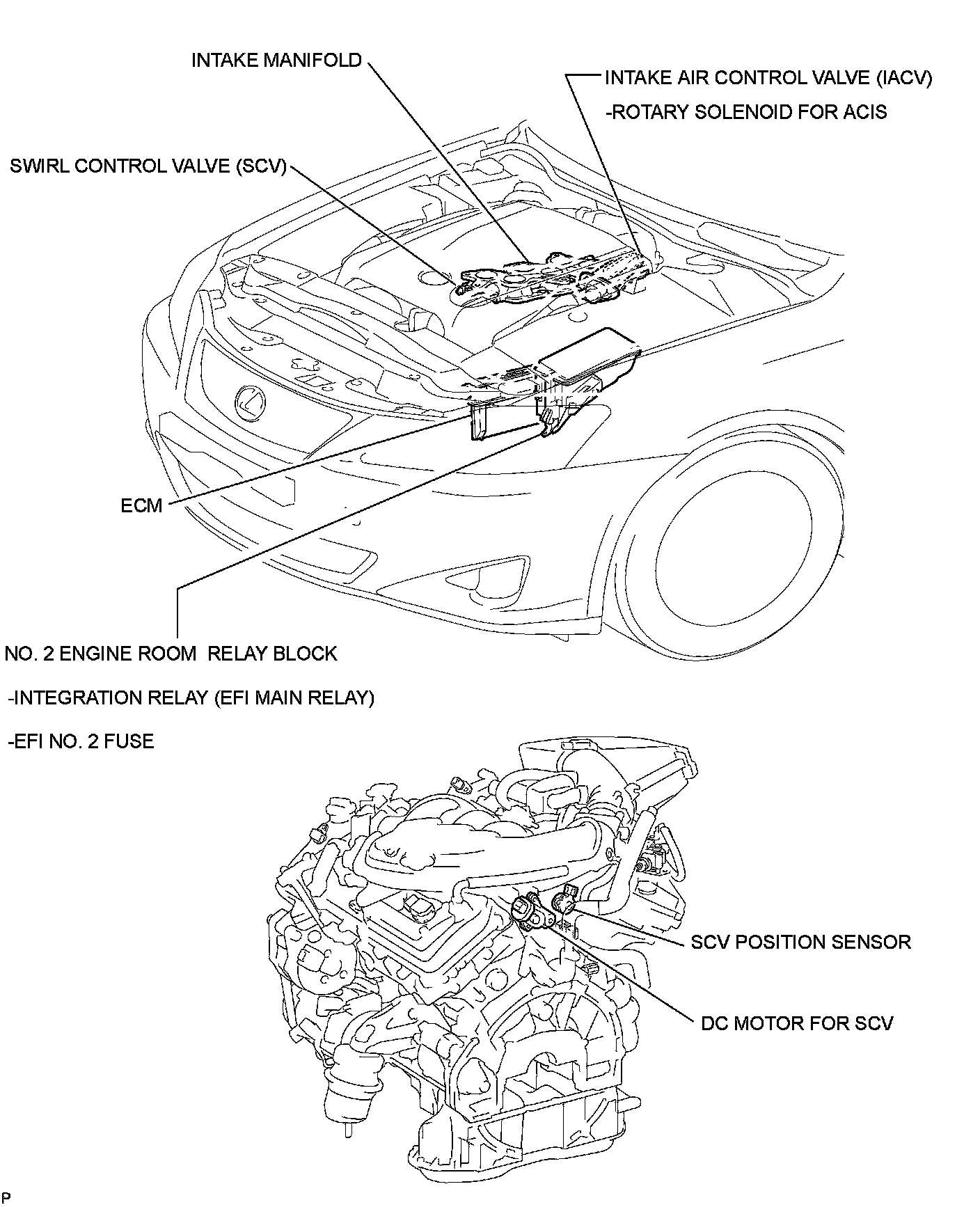

ILLUSTRATION
