FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
2009
>>
IS 250 RWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Lighting and Horns
>>
Brake Light Switch
>>
Service and Repair
>>
Components
>>
Lighting
Lighting

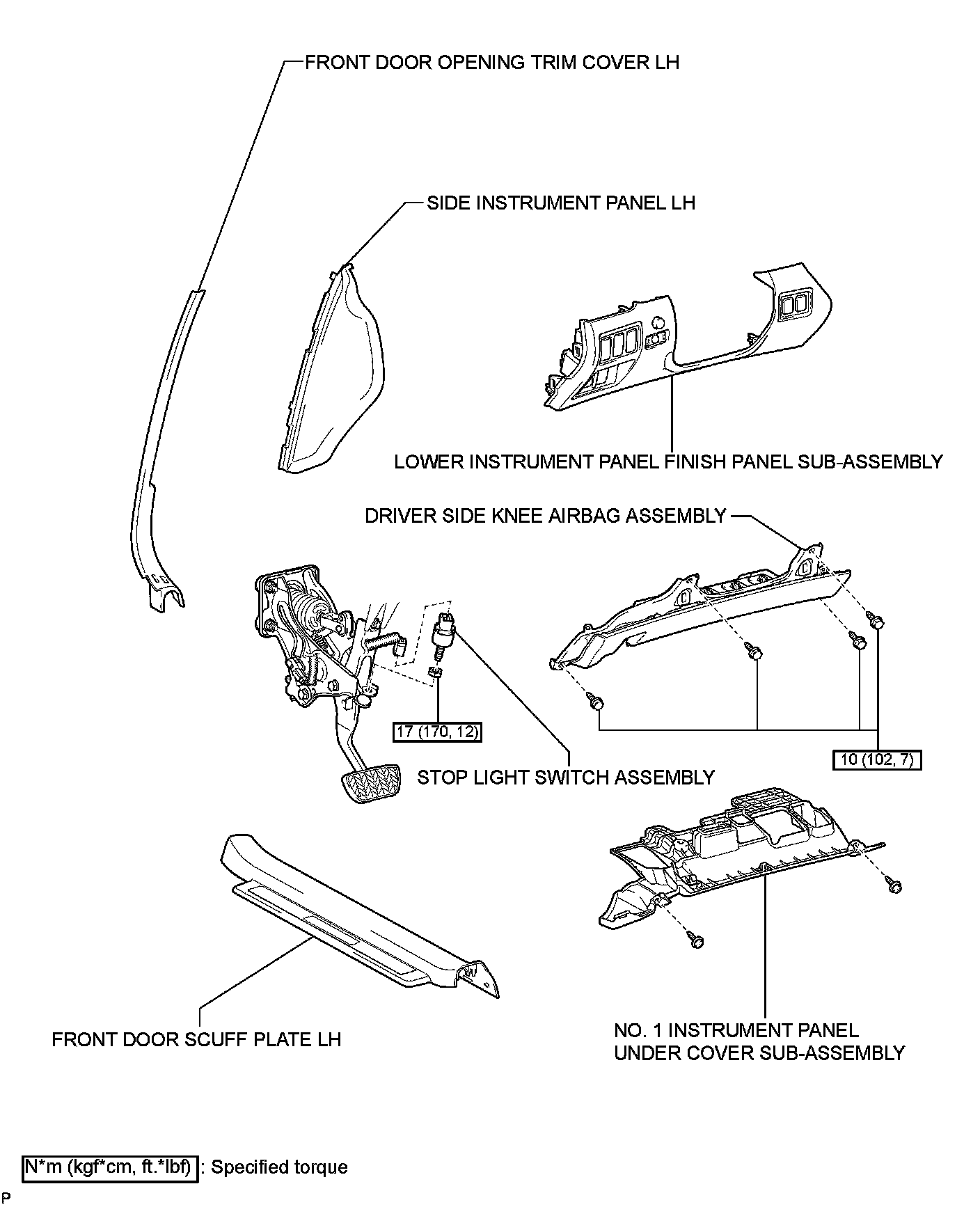

LIGHTING: STOP LIGHT SWITCH: COMPONENTS
COMPONENTS
ILLUSTRATION
