AIR CONDITIONING: ROOM TEMPERATURE SENSOR: INSTALLATION

INSTALLATION

1. INSTALL ROOM TEMPERATURE SENSOR

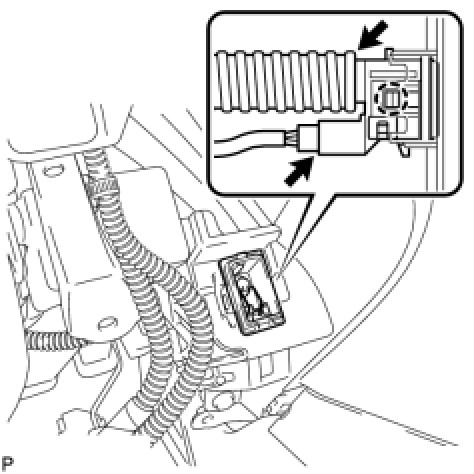

(a) Install the sensor with the claw.
(b) Connect the connector and attach the air hose.
2. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation
3. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation
4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
5. INSTALL SIDE INSTRUMENT PANEL LH Installation
6. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation
7. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination) Installation
8. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) Installation
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
10. INSPECT SRS WARNING LIGHT
