BRAKE CONTROL: STEERING ANGLE SENSOR: INSTALLATION

INSTALLATION

1. INSTALL STEERING ANGLE SENSOR

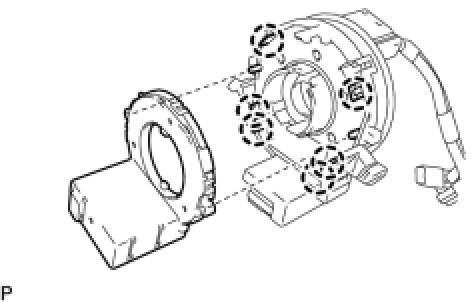

(a) Align the locating pins, engage the 6 claws and install the steering angle sensor to the spiral cable sub-assembly.
2. INSTALL SPIRAL CABLE SUB-ASSEMBLY WITH STEERING ANGLE SENSOR Installation
3. INSTALL STEERING COLUMN COVER Installation
4. INSTALL STEERING WHEEL ASSEMBLY Installation
5. INSTALL STEERING PAD Installation
6. INSTALL NO. 3 LOWER STEERING WHEEL COVER Installation
7. INSTALL NO. 2 LOWER STEERING WHEEL COVER Installation
8. INSPECT STEERING WHEEL CENTER POINT
(a) Inspect the steering wheel center point.
9. CONNECT BATTERY NEGATIVE TERMINAL
10. INSPECT STEERING PAD Installation
11. INSPECT SRS WARNING LIGHT
HINT:
Diagnosis System
