Removal

SEAT: SEAT HEATER SWITCH: REMOVAL

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) Removal
2. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Removal
3. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Removal
4. REMOVE SEAT HEATER SWITCH

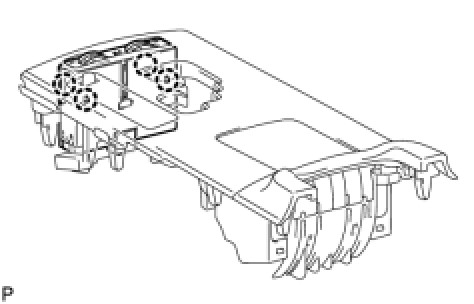

(a) Release the 4 claws and remove the seat heater switch.
