Power Door Lock Switch: Testing and Inspection








DOOR LOCK: DOOR CONTROL SWITCH: INSPECTION

INSPECTION

1. INSPECT DOOR CONTROL SWITCH ASSEMBLY





(a) Remove the door control switch assembly.

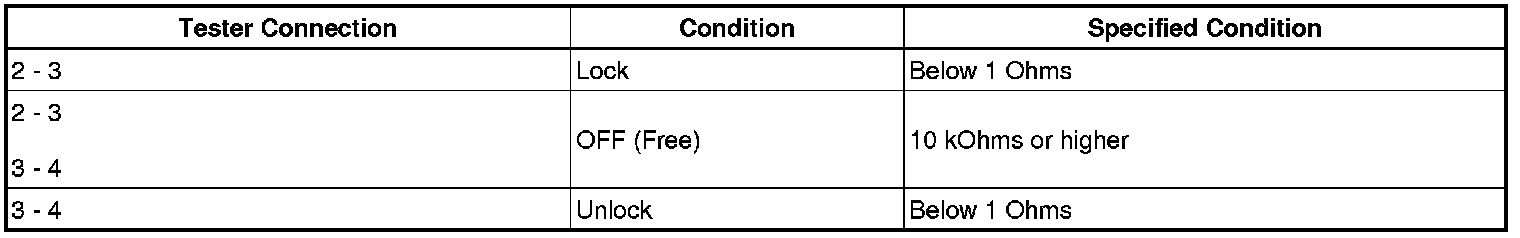

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
