Installation

SEAT: SEAT MEMORY SWITCH: INSTALLATION

INSTALLATION

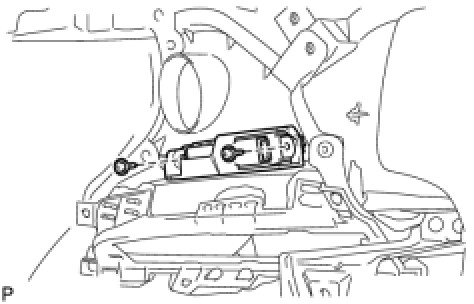

1. INSTALL SEAT MEMORY SWITCH





(a) Install the switch with the 2 screws.
(b) Connect the connector.
2. INSTALL FRONT INNER DOOR GLASS WEATHERSTRIP Reassembly
3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY Reassembly
4. INSTALL COURTESY LIGHT ASSEMBLY Reassembly
5. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY Reassembly
6. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH Reassembly
