Remote Switch: Testing and Inspection

AUDIO / VISUAL: STEERING PAD SWITCH: INSPECTION

INSPECTION

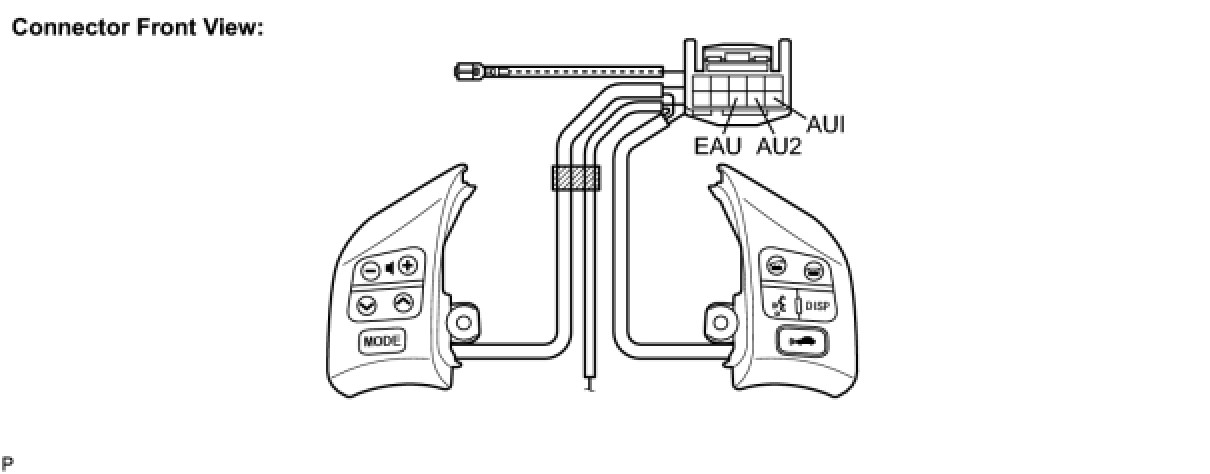

1. INSPECT STEERING PAD SWITCH (w/ Navigation System)
(a) Disconnect the steering pad switch assembly connector.





(b) Measure the resistance according to the values in the table below.

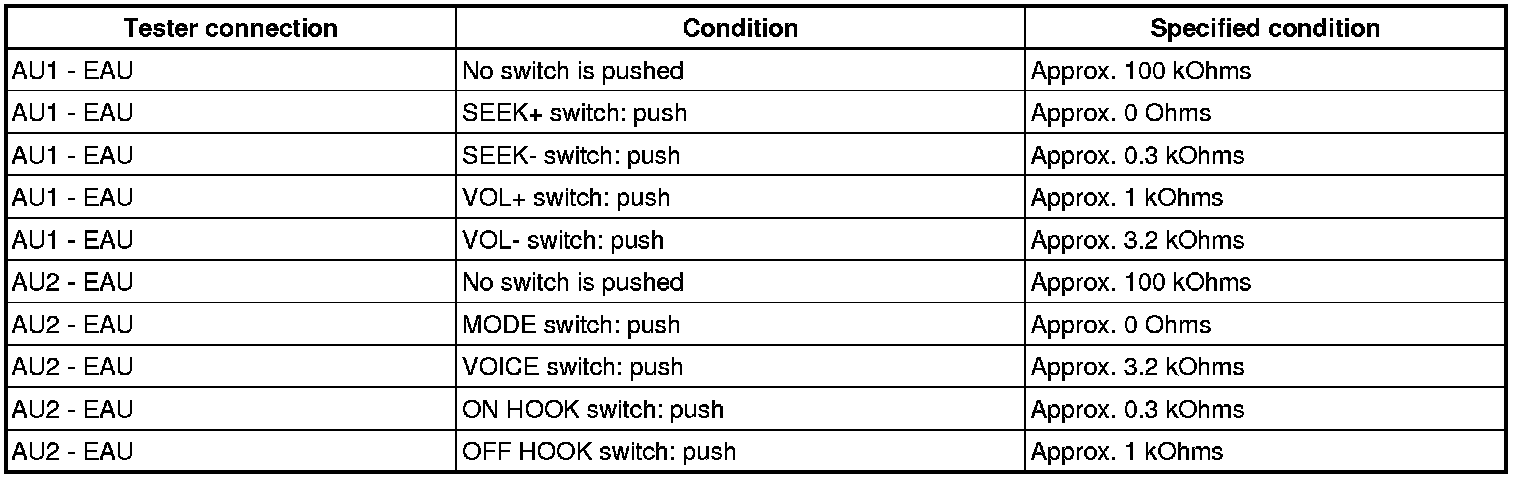

Standard resistance:





If the result is not as specified, replace the steering pad switch.

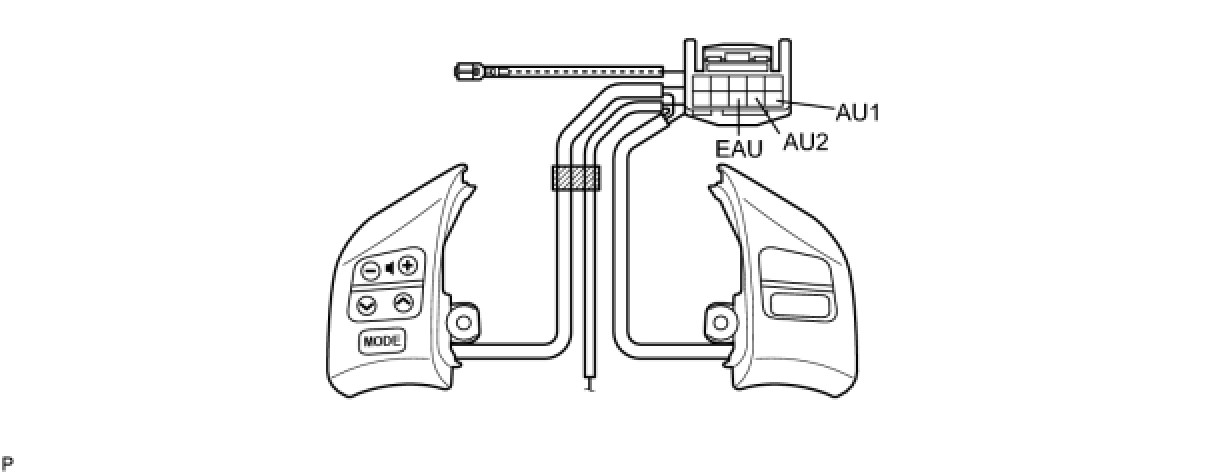

2. INSPECT STEERING PAD SWITCH (w/o Navigation System)
(a) Disconnect the steering pad switch assembly connector.





(b) Measure the resistance according to the values in the table below.

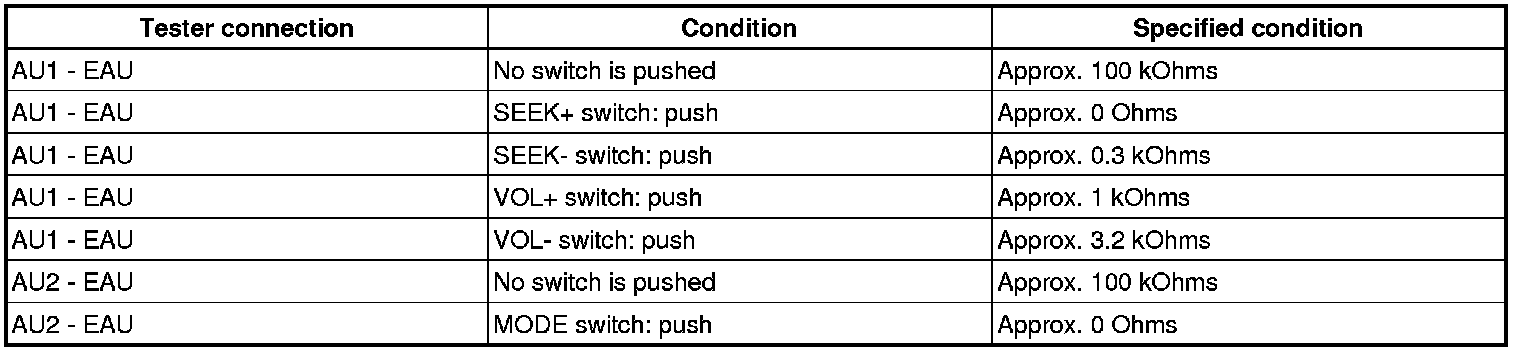

Standard resistance:





If the result is not as specified, replace the steering pad switch.
