Front Seat Inner Belt Assembly

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH (for Power Seat)





(a) w/ Occupant Classification System:

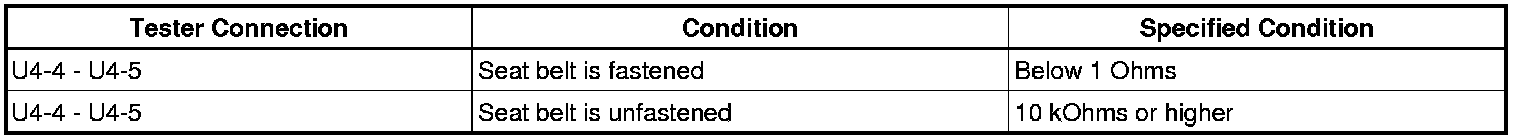

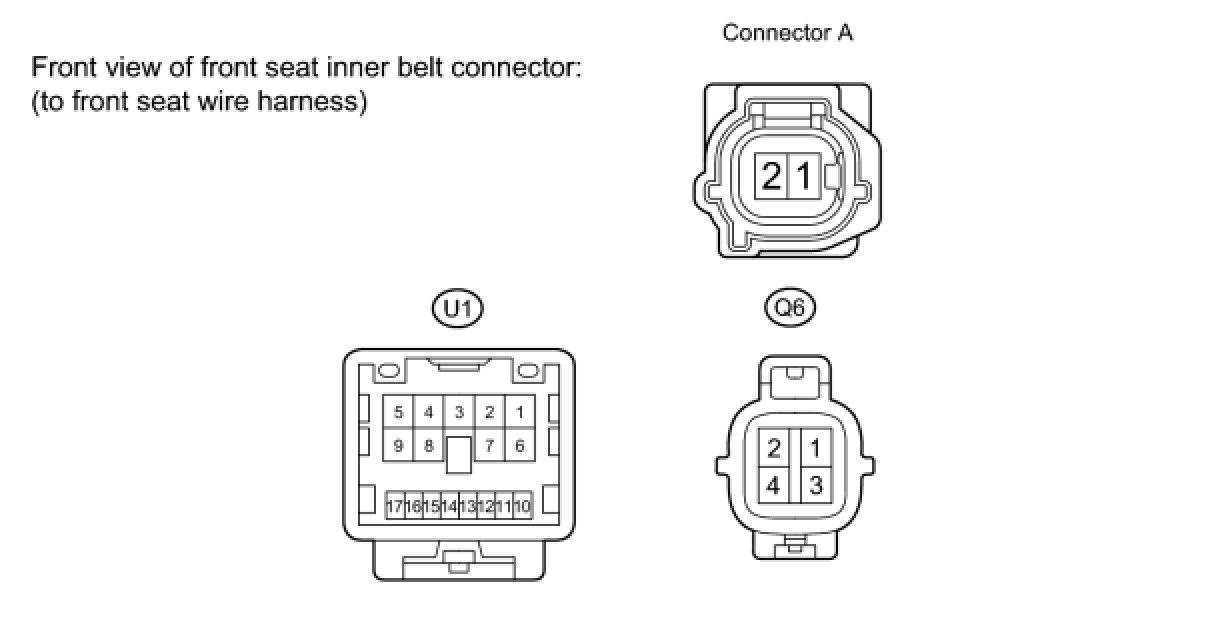

(1) Measure the resistance between the terminals of the switch when the switch is operated.
Standard resistance:










(b) w/o Occupant Classification System:

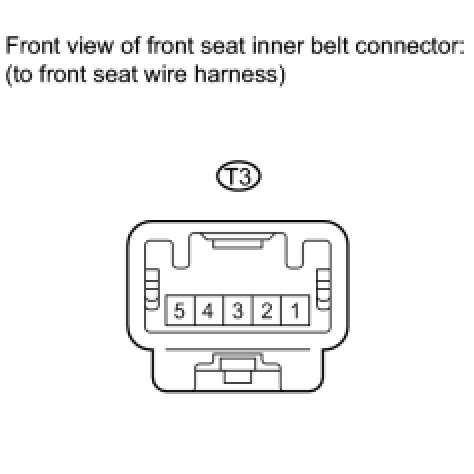

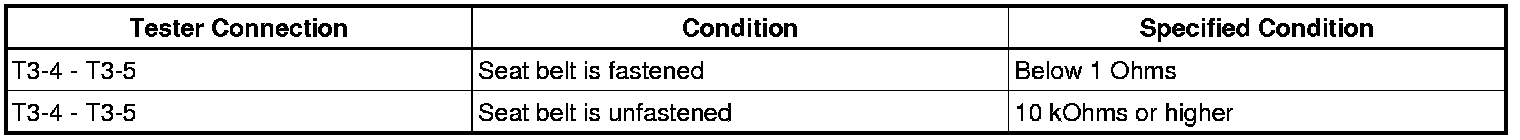

(1) Measure the resistance between the terminals of the switch when the switch is operated.
Standard resistance:






2. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH (for Manual Seat)
(a) w/ Seat Heater System:

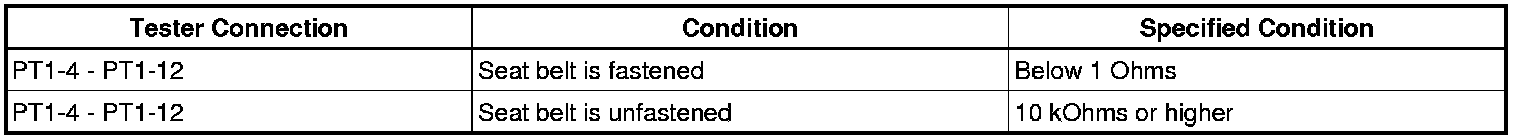

(1) Measure the resistance between the terminals of the switch when the switch is operated.





Standard resistance:

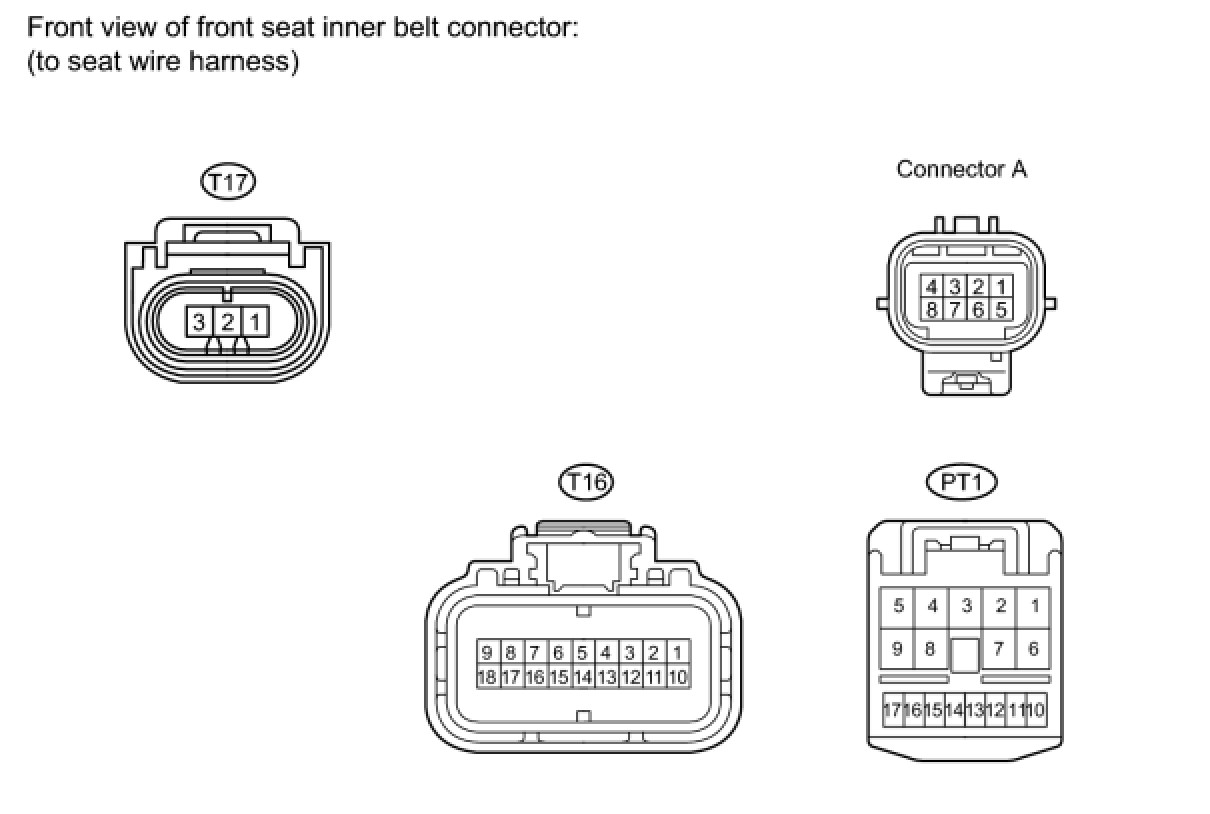

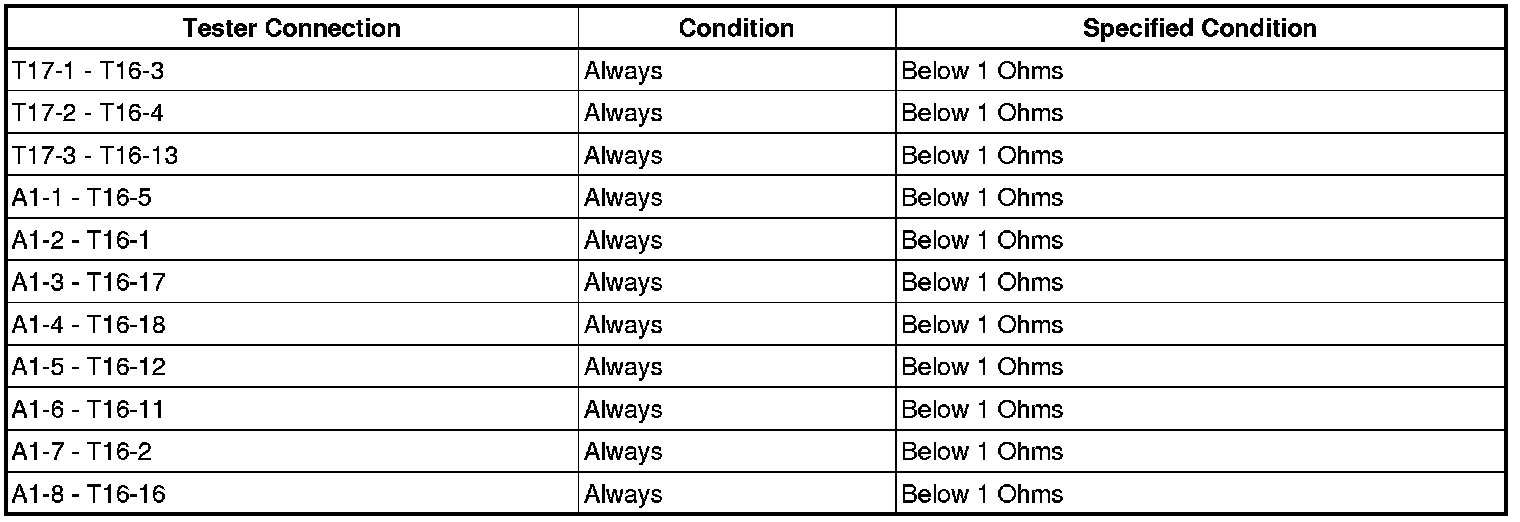

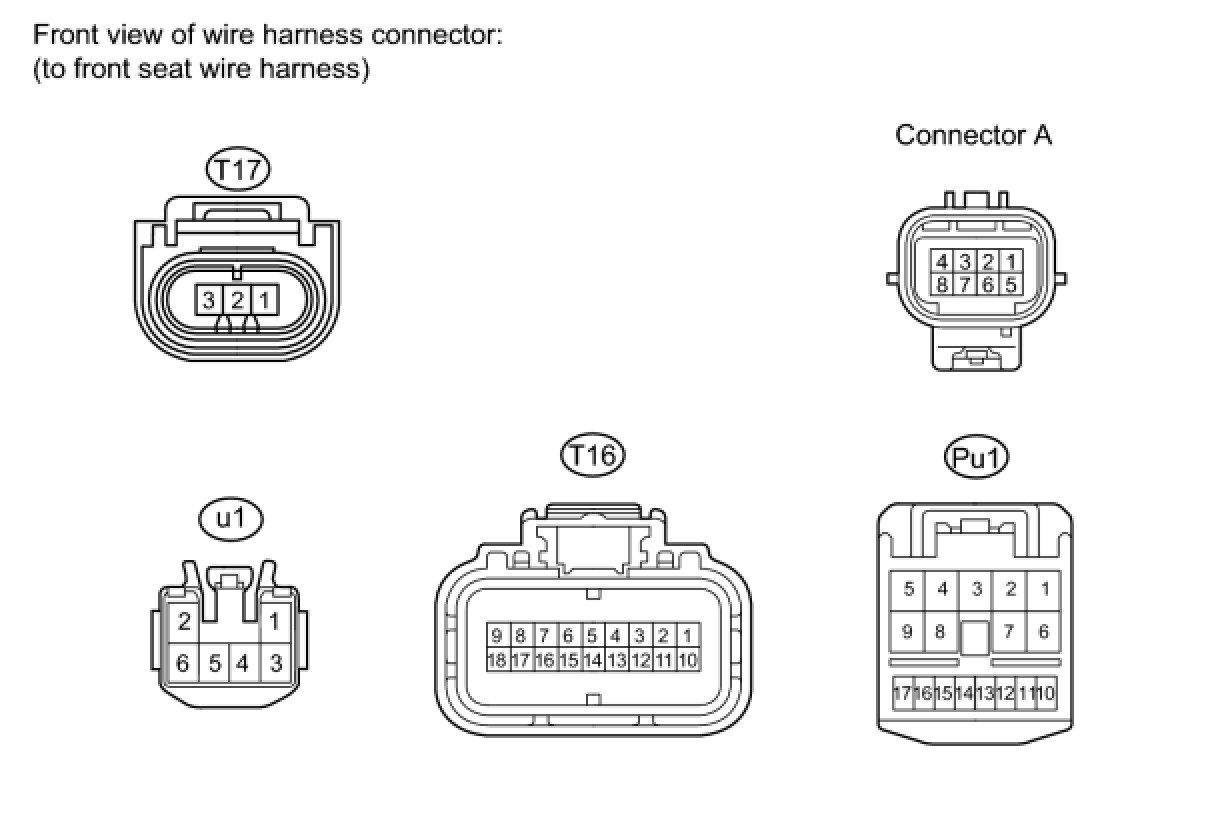

(2) Measure the resistance between the terminals of the front seat inner belt assembly.

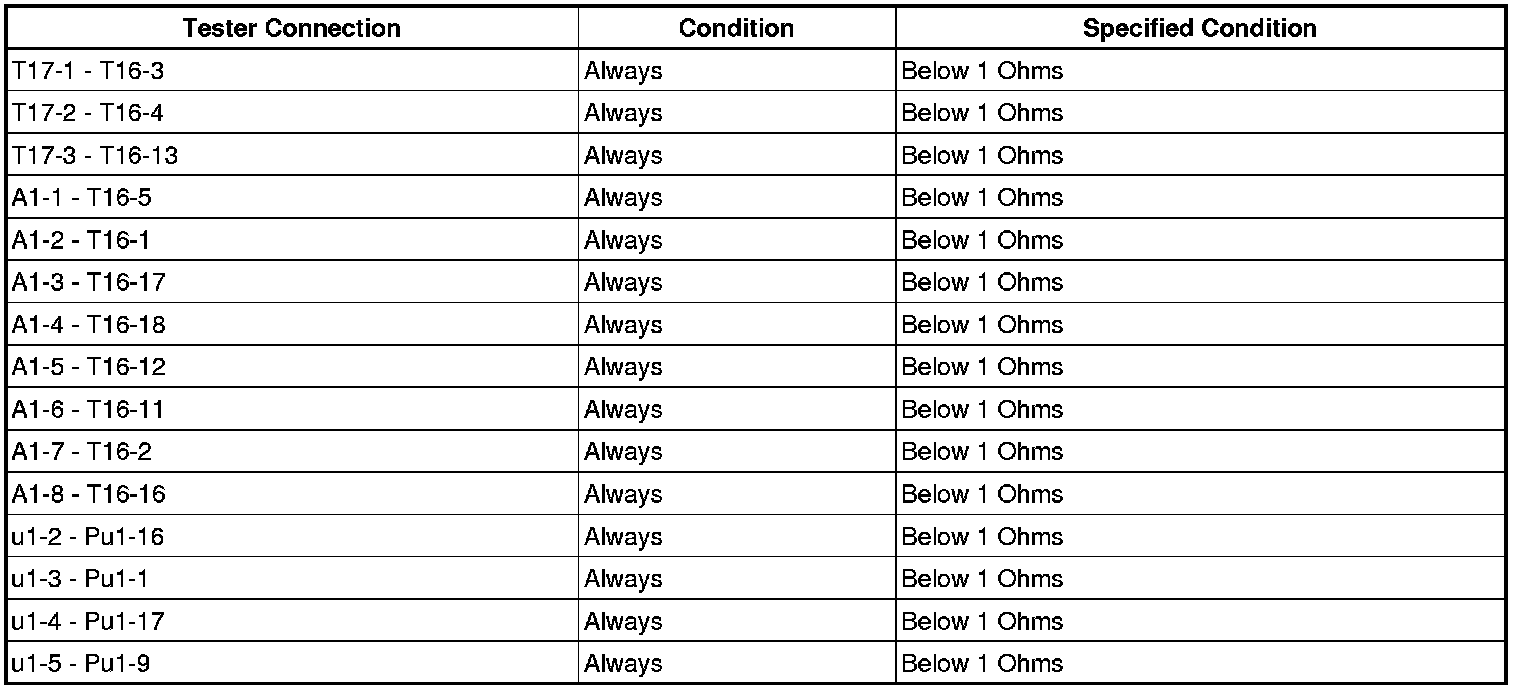

Standard resistance:






(b) w/o Seat Heater System:
(1) Measure the resistance between the terminals of the switch when the switch is operated.





Standard resistance:

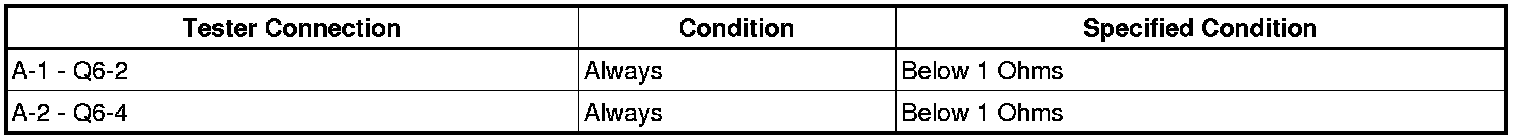

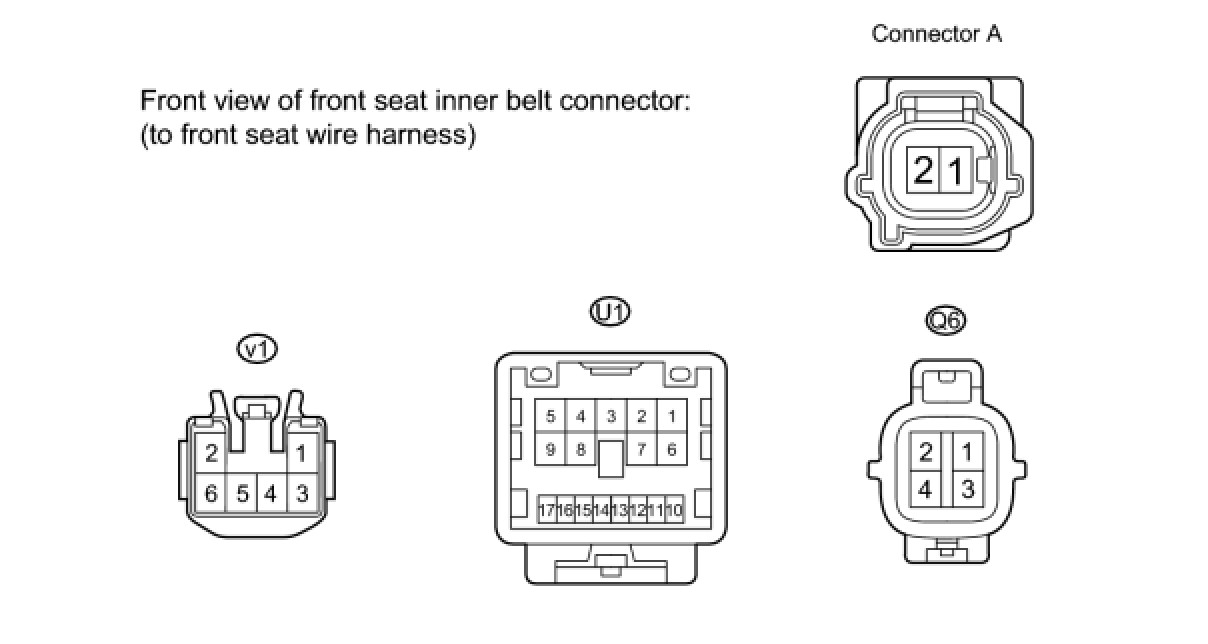

(2) Measure the resistance between the terminals of the front seat inner belt assembly.

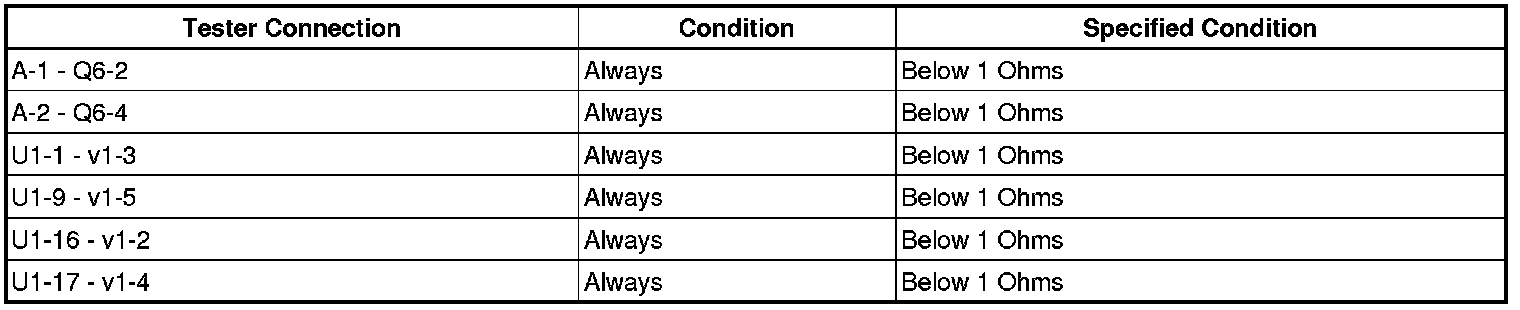

Standard resistance:






3. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH (for Power Seat)
(a) Measure the resistance between the terminals of the switch when the switch is operated.





Standard resistance:






(b) Measure the resistance between the terminals of the front seat inner belt assembly.
Standard resistance:






4. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH (for Manual Seat)
(a) w/ Seat Heater System:
(1) Measure the resistance between the terminals of the switch when the switch is operated.





Standard resistance:





(2) Measure the resistance between the terminals of the front seat inner belt assembly.
Standard resistance:






(b) w/o Seat Heater System:
(1) Measure the resistance between the terminals of the switch when the switch is operated.





Standard resistance:





(2) Measure the resistance between the terminals of the front seat inner belt assembly.
Standard resistance:
