Installation

TIRE AND WHEEL: TIRE PRESSURE WARNING ECU: INSTALLATION

INSTALLATION

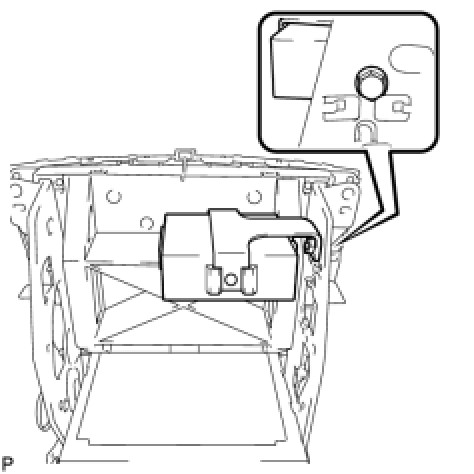

1. INSTALL TIRE PRESSURE WARNING ECU AND RECEIVER





(a) Install the tire pressure warning ECU and receiver with the bolt.
Torque: 4.5 Nm (46 kgf-cm, 40 in-lbf)
(b) Connect the connector.
2. INSTALL RADIO RECEIVER ASSEMBLY
HINT:
Refer to the instructions for installation of the radio receiver assembly Removal.

3. REGISTER OF TRANSMITTER ID
HINT:
Registration

4. INSPECT TIRE PRESSURE WARNING SYSTEM
HINT:
Test Mode Procedure
