Radiator Cooling Fan Motor Relay
>>
Locations
>>
Fan Relays
Fan Relays
4GR-FSE COOLING: COOLING SYSTEM: PARTS LOCATION
PARTS LOCATION

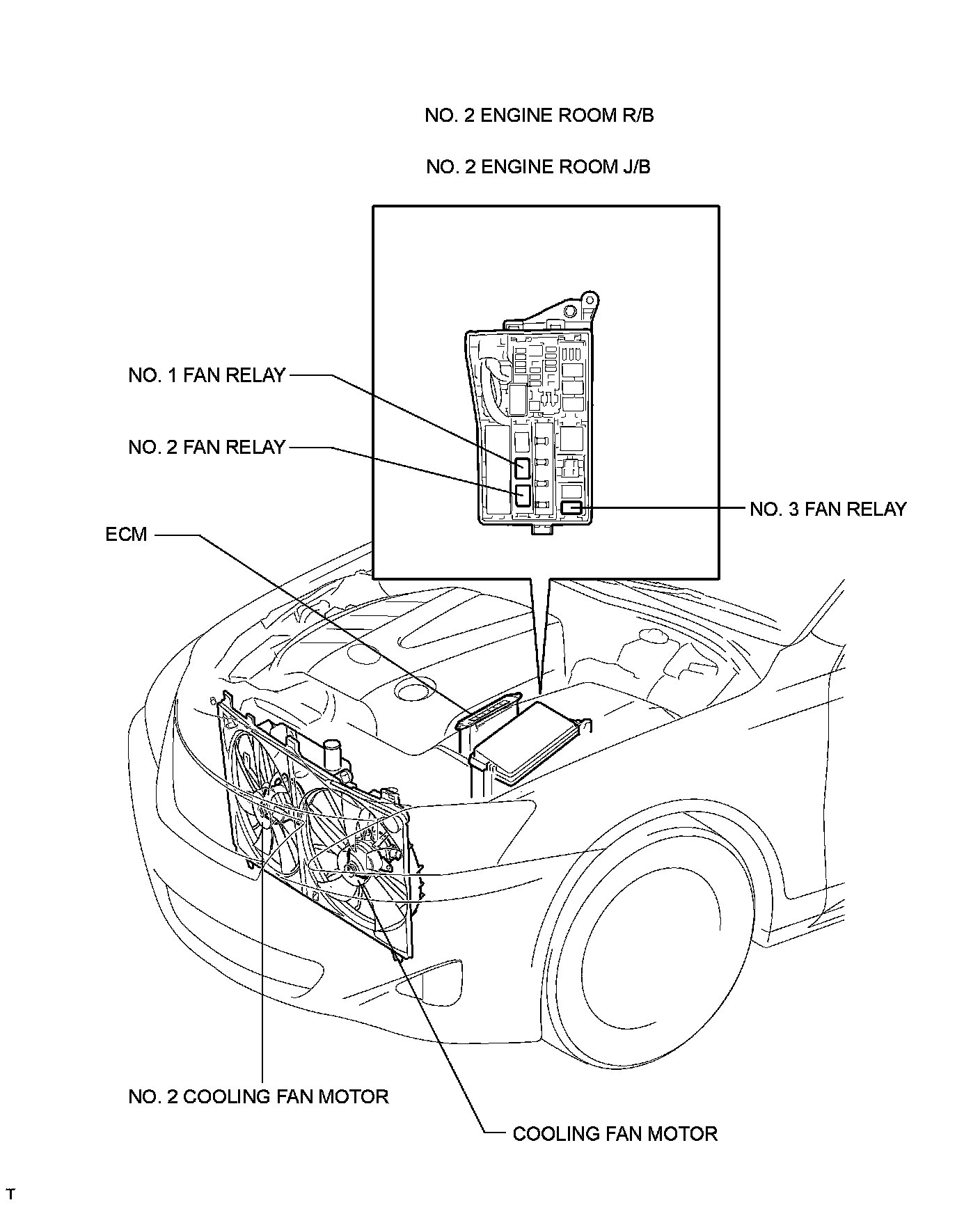

ILLUSTRATION
