Traction Control Relay: Testing and Inspection

BRAKE CONTROL: STOP LIGHT CONTROL RELAY (for Automatic Transmission): ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

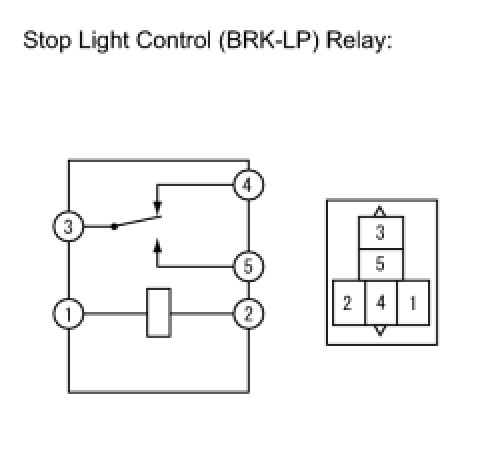

1. INSPECT STOP LIGHT CONTROL (BRK-LP) RELAY
(a) Remove the stop light control (BRK-LP) relay.

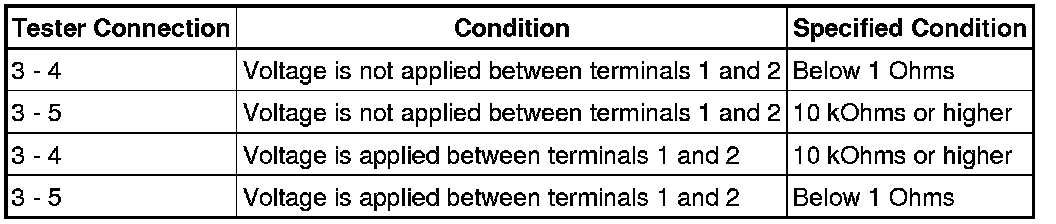

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the value is not as specified, replace the stop light control (BRK-LP) relay.
