Removal

A960E AUTOMATIC TRANSMISSION: SPEED SENSOR: REMOVAL

REMOVAL

1. REMOVE NO. 2 ENGINE UNDER COVER

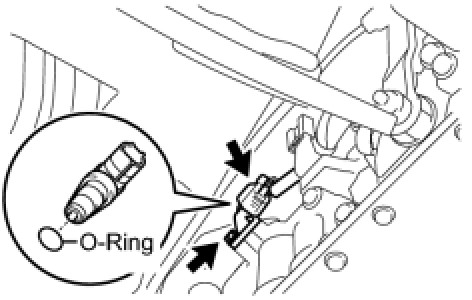

2. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)





(a) Disconnect the transmission revolution sensor connector.
(b) Remove the bolt and transmission revolution sensor.
(c) Remove the O-ring from the transmission revolution sensor.

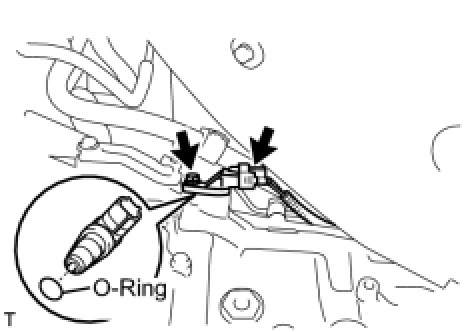

3. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2)





(a) Disconnect the transmission revolution sensor connector.
(b) Remove the bolt and transmission revolution sensor.
(c) Remove the O-ring from the transmission revolution sensor.
