Inspection

4GR-FSE ENGINE CONTROL SYSTEM: THROTTLE BODY: INSPECTION

INSPECTION

1. INSPECT THROTTLE BODY

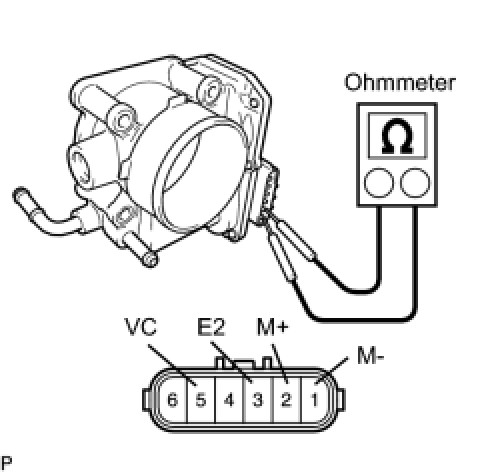

(a) Measure the resistance between the terminals.

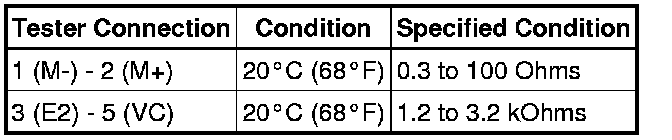

Standard resistance:





If the result is not as specified, replace the throttle body.
