4GR-FSE FUEL: FUEL PRESSURE SENSOR: INSTALLATION

INSTALLATION

1. INSTALL FUEL PRESSURE SENSOR
(a) Install a new gasket to the fuel pressure sensor.

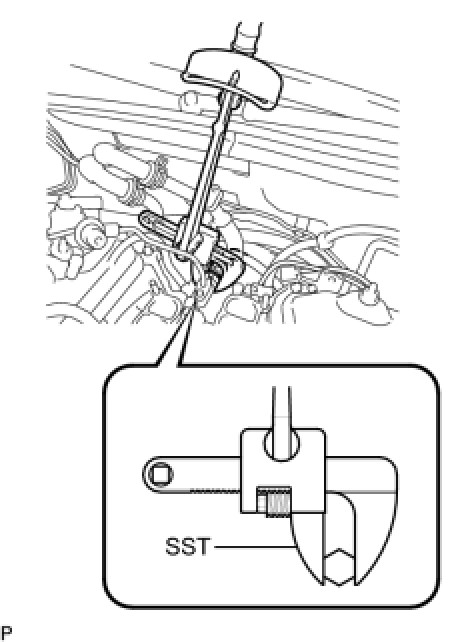

(b) Using SST, install the fuel pressure sensor to the No. 1 delivery pipe.
SST: 09922-10010
For Use With SST - Torque: 24 Nm (240 kgf-cm, 18 ft-lbf)
For Use Without SST - Torque: 31 Nm (316 kgf-cm, 23 ft-lbf)
HINT:
The torque for use with SST is the torque when SST is used at the position shown in the illustration.





(c) Connect the connector with the clamp.
2. INSTALL NO. 1 FUEL PIPE Installation
3. CONNECT WATER HOSE JOINT Installation
4. INSTALL INTAKE MANIFOLD Installation
5. INSTALL INTAKE AIR SURGE TANK Installation
6. INSTALL COLD START INJECTOR Installation
7. INSTALL THROTTLE WITH MOTOR BODY ASSEMBLY Installation
8. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE Installation
9. CONNECT NO. 2 VENTILATION HOSE Installation
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation
11. ADD ENGINE COOLANT Testing and Inspection
12. INSPECT FOR COOLANT LEAK Testing and Inspection
13. INSPECT FOR FUEL LEAK Testing and Inspection
14. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation
15. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH Installation
16. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH Installation
17. INSTALL FRONT WIPER ARM HEAD CAP Installation
18. INSTALL ROOF DRIP SIDE FINISH MOULDING LH
19. INSTALL ROOF DRIP SIDE FINISH MOULDING RH
20. INSTALL FRONT UPPER FENDER PROTECTOR LH Installation
21. INSTALL FRONT UPPER FENDER PROTECTOR RH
HINT:
Installation procedure of the RH side is the same as that of the LH side.

22. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
23. INSTALL ENGINE ROOM SIDE COVER LH Installation
24. INSTALL ENGINE ROOM SIDE COVER RH Installation
25. INSTALL COOL AIR INTAKE DUCT SEAL Installation
26. CHECK FUNCTION OF THROTTLE WITH MOTOR BODY ASSEMBLY On-Vehicle Inspection
