Installation

4GR-FSE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL: INSTALLATION

INSTALLATION
NOTICE:
- Avoid physical shock to the accelerator pedal.
- Do not disassemble the accelerator pedal assembly.

1. INSTALL ACCELERATOR PEDAL

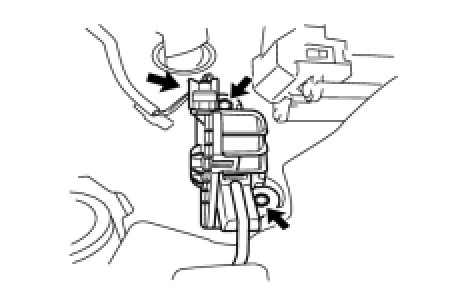

(a) Install the accelerator pedal with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
(b) Connect the accelerator pedal position sensor connector.
