A960E AUTOMATIC TRANSMISSION: SHIFT PADDLE SWITCH: INSTALLATION

INSTALLATION

1. INSTALL SHIFT PADDLE SWITCH

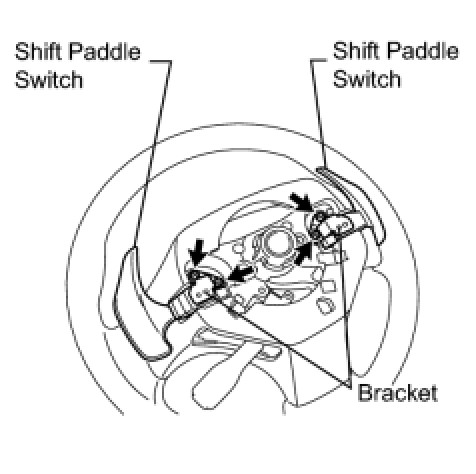

(a) Install the 2 shift paddle switches and 2 brackets with the 4 screws.
Torque: 1.7 Nm (17 kgf-cm, 15 in-lbf)
NOTE:
Make sure that the brackets are securely installed.

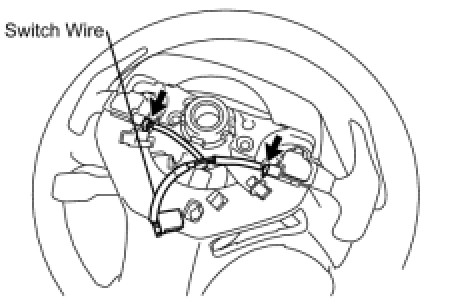

(b) Connect the 2 switch wire connectors to the shift paddle switches.

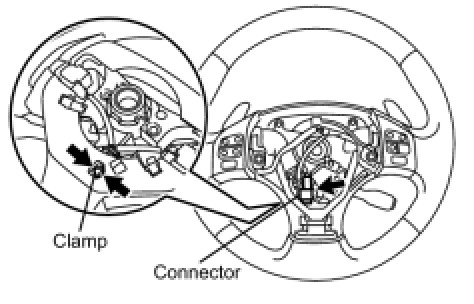

(c) Install the connector to the steering wheel assembly.
(d) Install the clamp to the steering wheel assembly.
2. ADJUST SPIRAL CABLE SUB-ASSEMBLY Installation
3. INSTALL STEERING WHEEL ASSEMBLY Installation
4. INSTALL STEERING PAD Installation
5. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation
6. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. REMOVE STEERING PAD Steering Pad
9. INSPECT SRS WARNING LIGHT Installation
