4GR-FSE ENGINE CONTROL SYSTEM: KNOCK SENSOR: INSTALLATION

INSTALLATION

1. INSTALL KNOCK SENSOR

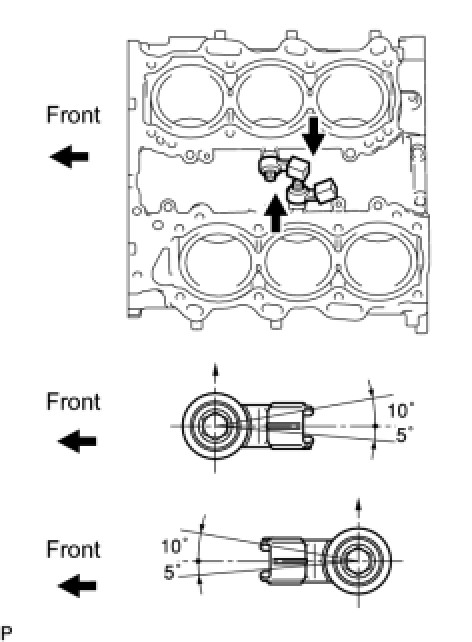

(a) Install the 2 knock sensors so that they are horizontal as shown in the illustration. Then install the 2 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
HINT:
It is acceptable for the knock sensor to be tilted +10° to -5°.

(b) Connect the 2 knock sensor connectors.
2. INSTALL FUEL INJECTOR SEAL Installation
3. INSTALL INJECTOR Installation
4. INSTALL NO. 2 FUEL DELIVERY PIPE Installation
5. INSTALL NO. 1 FUEL DELIVERY PIPE Installation
6. INSTALL NO. 3 FUEL PIPE Installation
7. CONNECT NO. 2 FUEL PIPE Installation
8. INSTALL FUEL PUMP ASSEMBLY Installation
9. INSTALL NO. 2 FUEL PIPE Installation
10. INSTALL NO. 1 FUEL PIPE Installation
11. INSTALL FUEL PRESSURE REGULATOR ASSEMBLY Installation
12. INSTALL INTAKE MANIFOLD Installation
13. INSTALL INTAKE AIR SURGE TANK Installation
14. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE Installation
15. CONNECT NO. 2 VENTILATION HOSE Installation
16. ADD ENGINE COOLANT Testing and Inspection
17. INSPECT FOR COOLANT LEAK Testing and Inspection
18. INSPECT FOR FUEL LEAK Testing and Inspection
19. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation
20. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH Installation
21. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH Installation
22. INSTALL FRONT WIPER ARM HEAD CAP Installation
23. INSTALL ROOF DRIP SIDE FINISH MOULDING RH
24. INSTALL ROOF DRIP SIDE FINISH MOULDING LH
25. INSTALL FRONT FENDER PROTECTOR UPPER RH Installation
26. INSTALL FRONT FENDER PROTECTOR UPPER LH Installation
27. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
28. INSTALL ENGINE ROOM SIDE COVER LH Installation
29. INSTALL ENGINE ROOM SIDE COVER RH Installation
30. INSTALL COOL AIR INTAKE DUCT SEAL Installation
31. CHECK FUNCTION THROTTLE BODY On-Vehicle Inspection
