Power Steering ECU Communication Stop Mode
CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: Power Steering ECU Communication Stop Mode
Power Steering ECU Communication Stop Mode

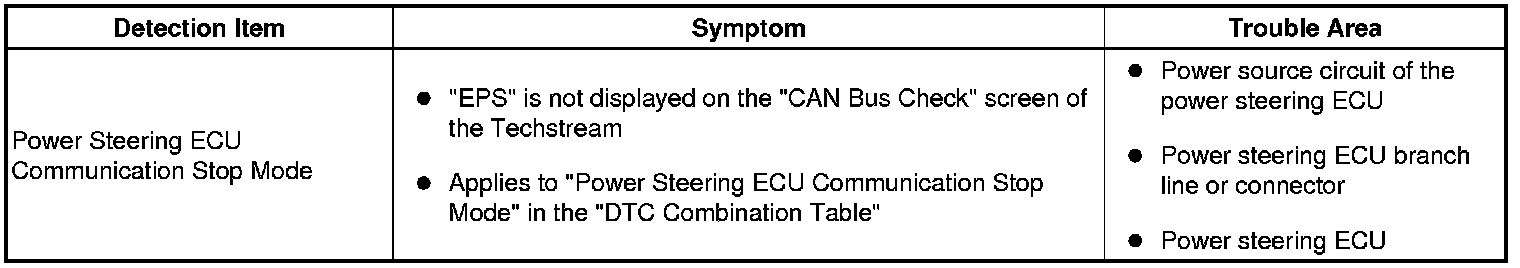

DESCRIPTION
HINT:
"EPS" refers to the circuit that includes the power steering ECU.

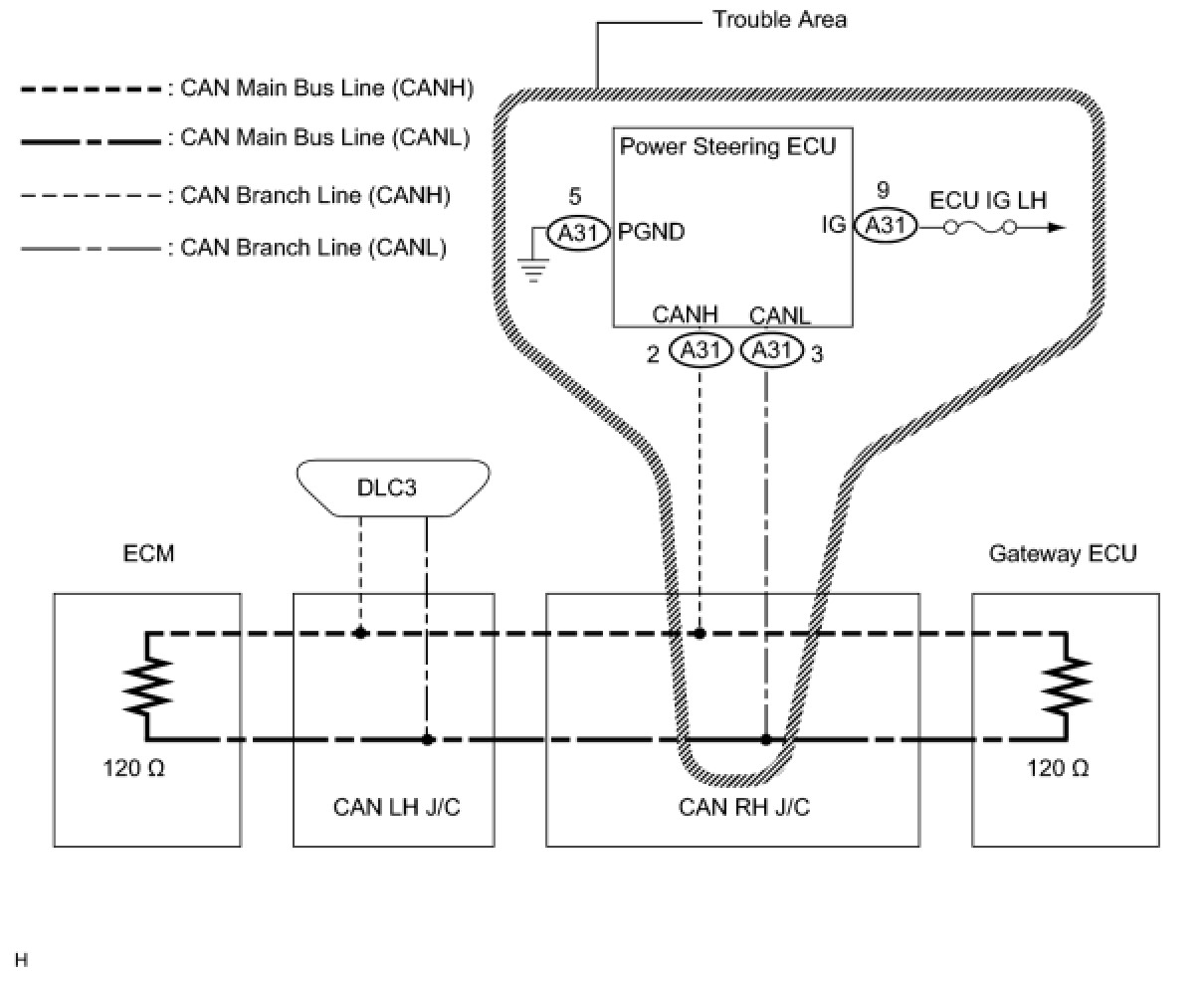

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
1. CHECK OPEN IN CAN BUS WIRE (POWER STEERING ECU BRANCH LINE)
(a) Turn the engine switch off.
(b) Disconnect the power steering ECU connector.

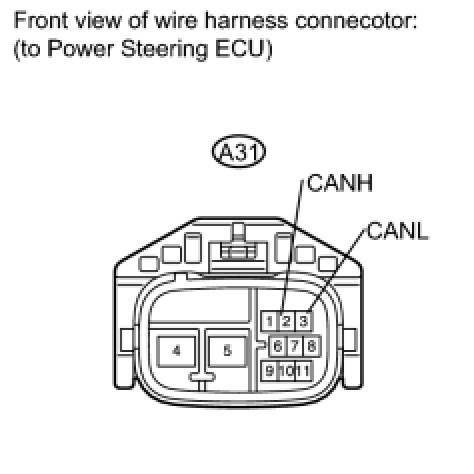

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
NG -- REPAIR OR REPLACE POWER STEERING ECU BRANCH WIRE OR CONNECTOR (CANH, CANL)
OK -- Continue to next step.

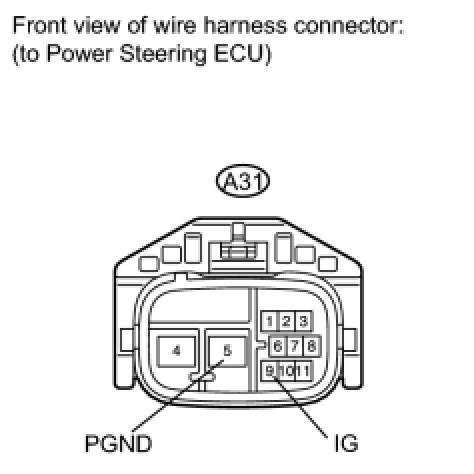

2. CHECK WIRE HARNESS (IG, PGND)
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE POWER STEERING ECU
