ECM Communication Stop Mode

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: ECM Communication Stop Mode

ECM Communication Stop Mode

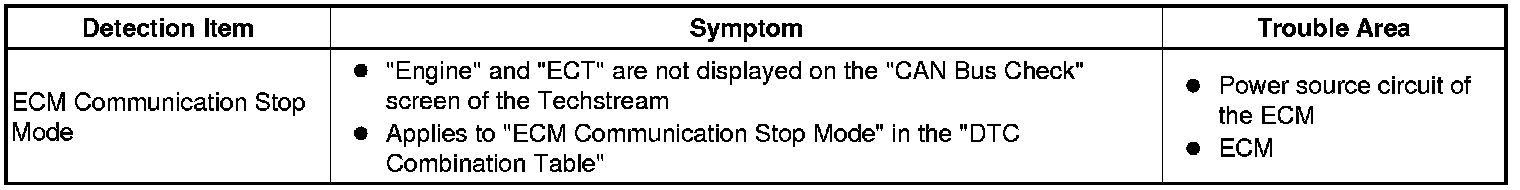

DESCRIPTION





HINT:
"Engine" and "ECT" refer to the circuit that includes the ECM.

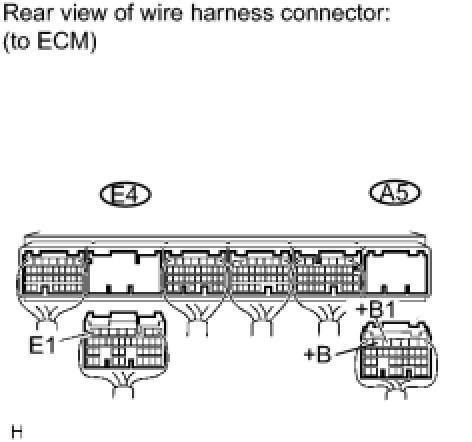

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS (+B1, +B, E)
(a) Turn the engine switch off.
(b) Disconnect the ECM connectors (E4) and (A5).




(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





(d) Measure the voltage according to the value(s) in the table below.
Standard Voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE ECM
