Pinout Values and Diagnostic Parameters

LIGHTING: LIGHTING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

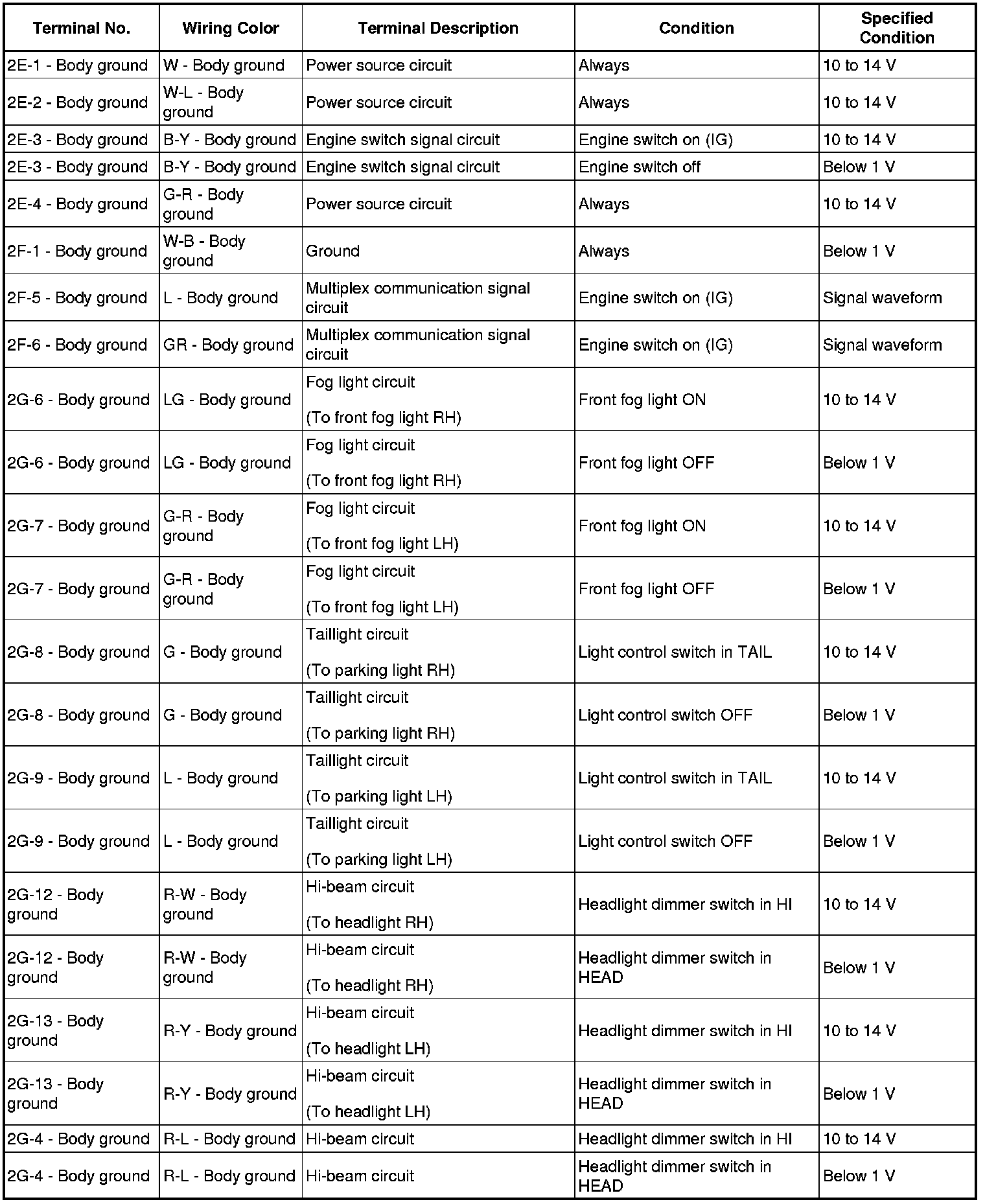

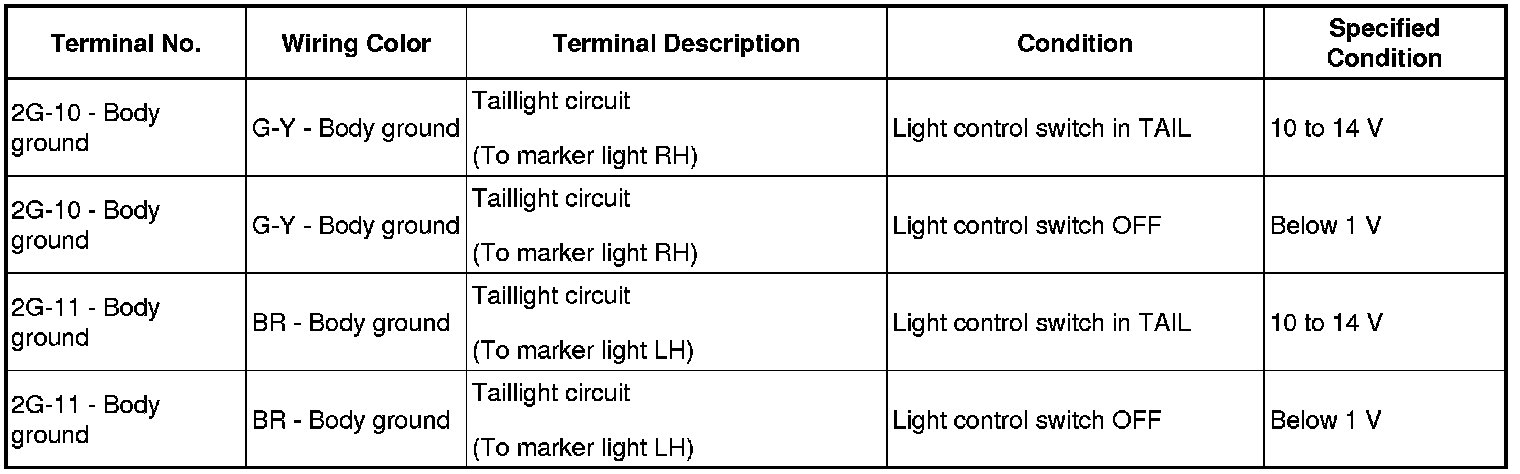

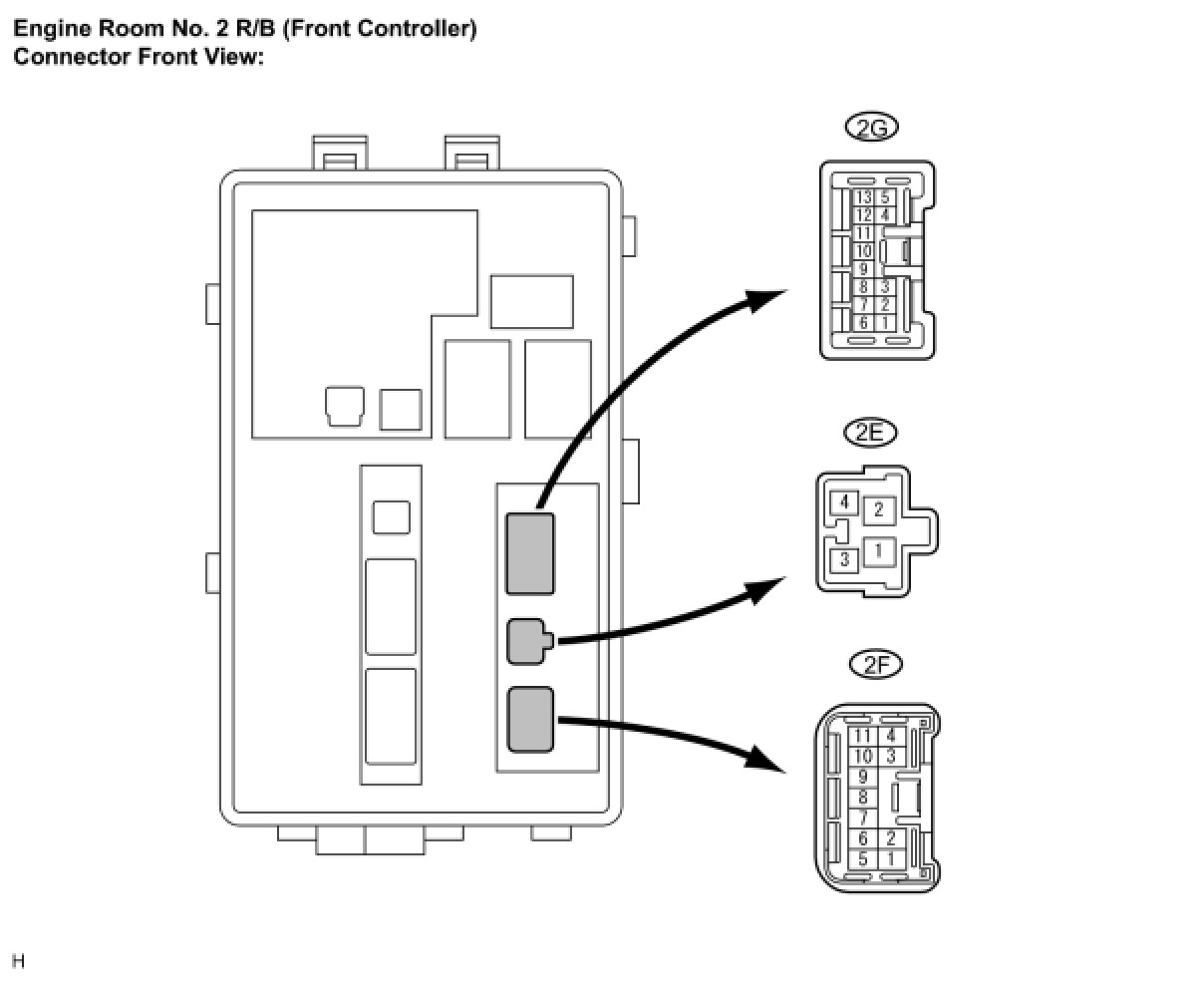

1. CHECK ENGINE ROOM NO. 2 R/B (FRONT CONTROLLER)

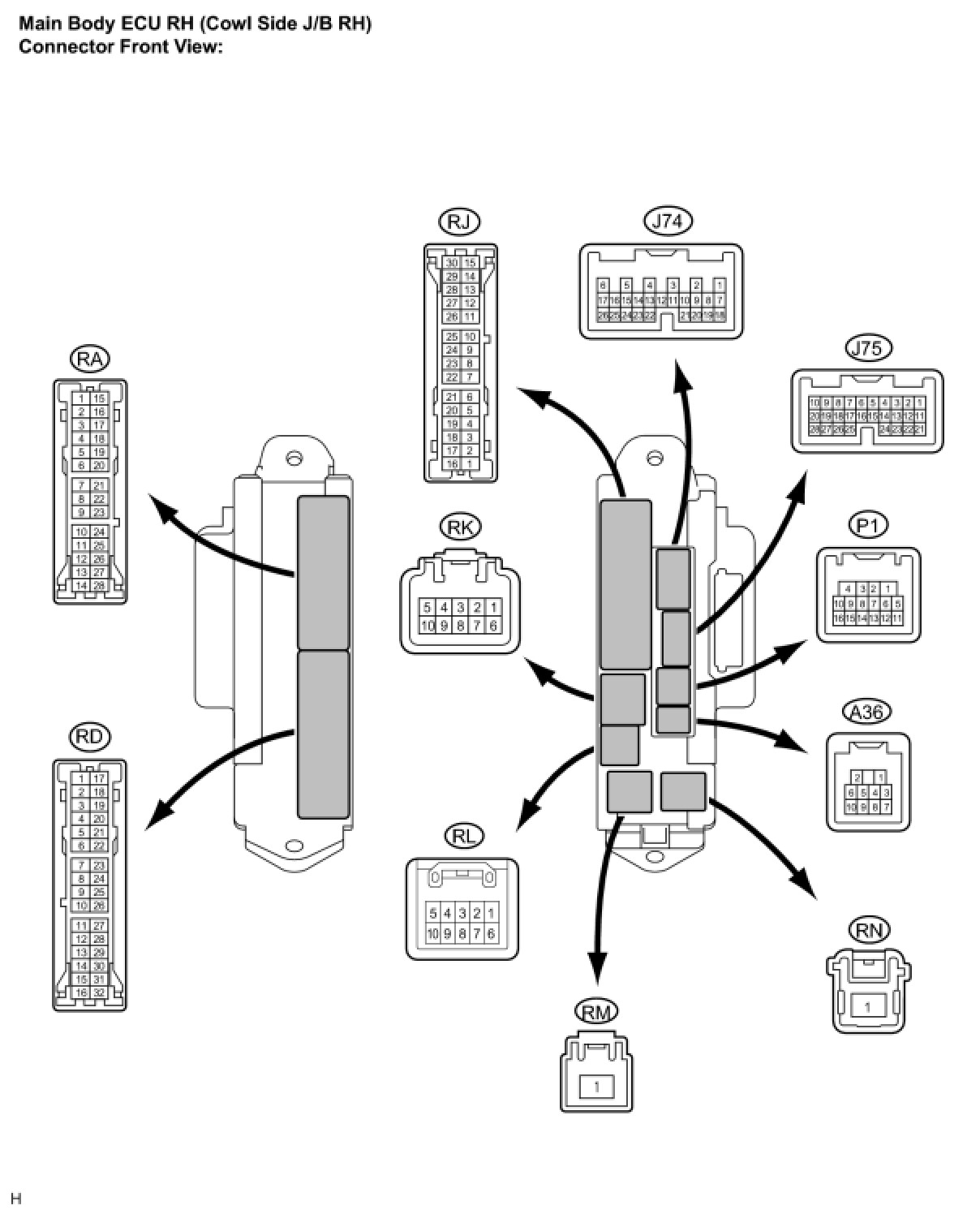

2. CHECK MAIN BODY ECU RH (COWL SIDE J/B RH)













- *1: w/ Power Tilt and Power Telescopic

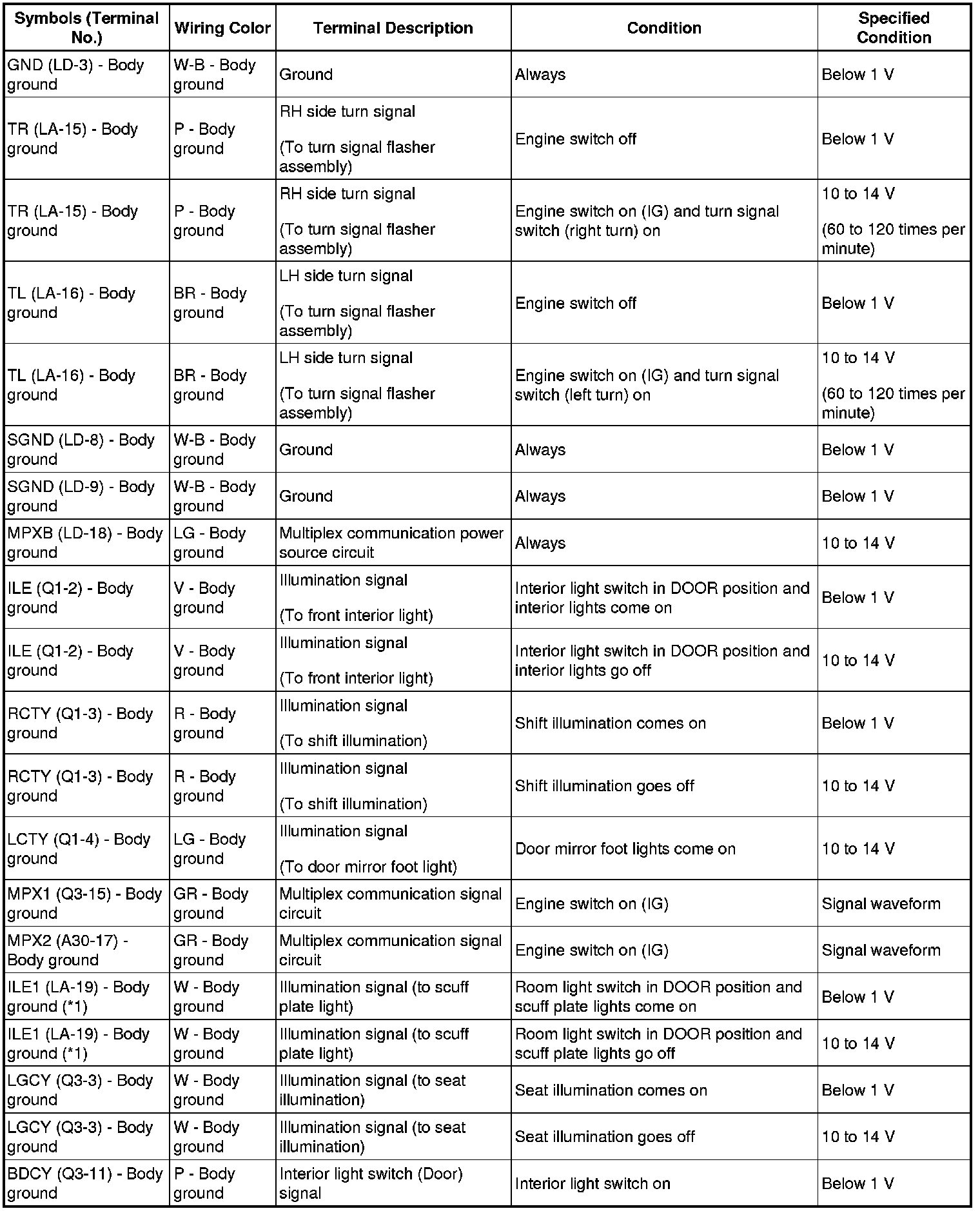

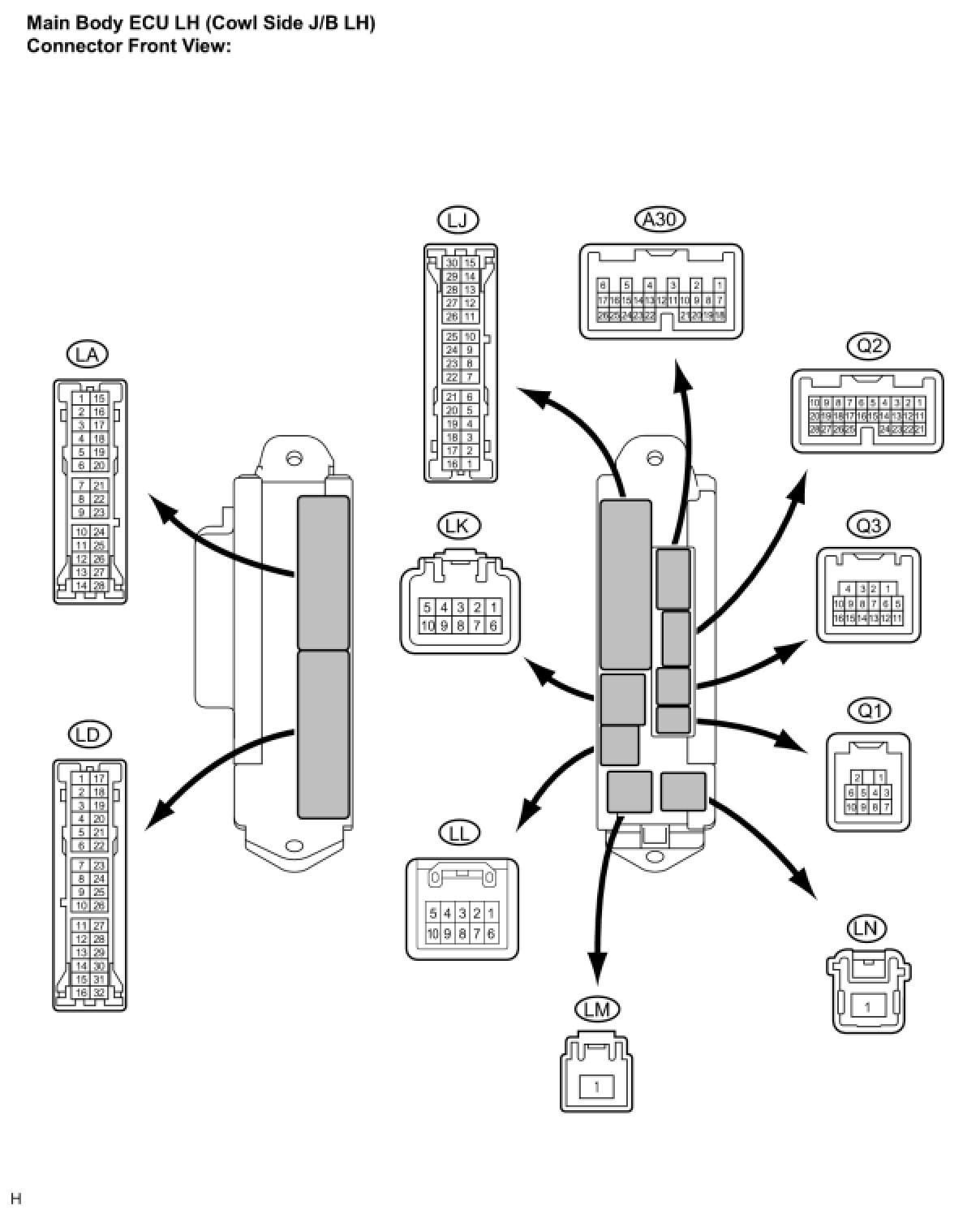

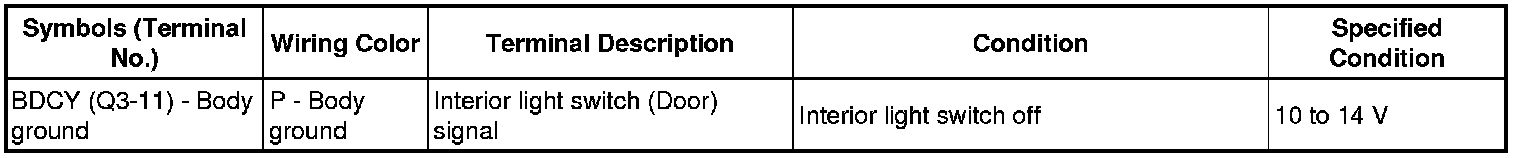

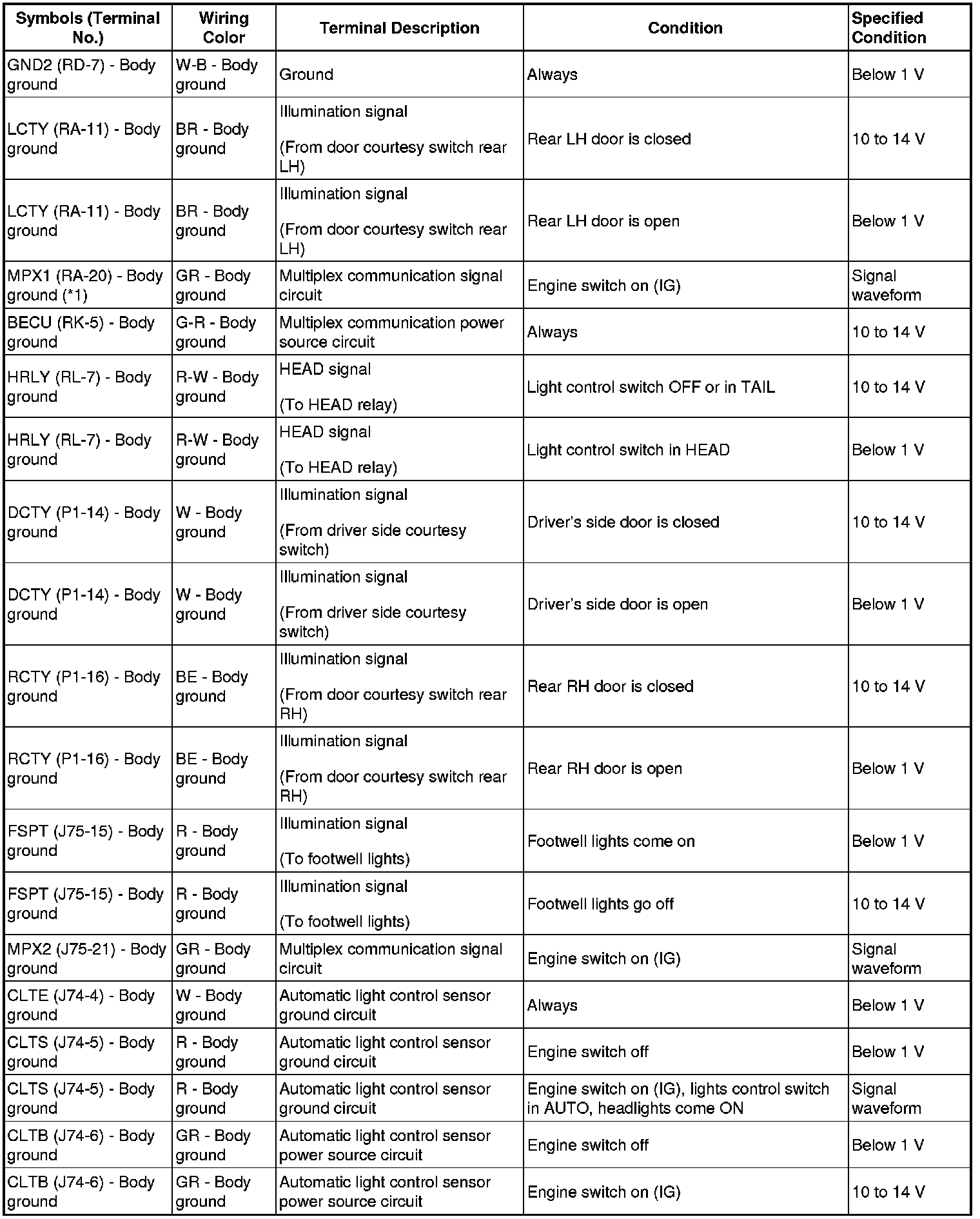

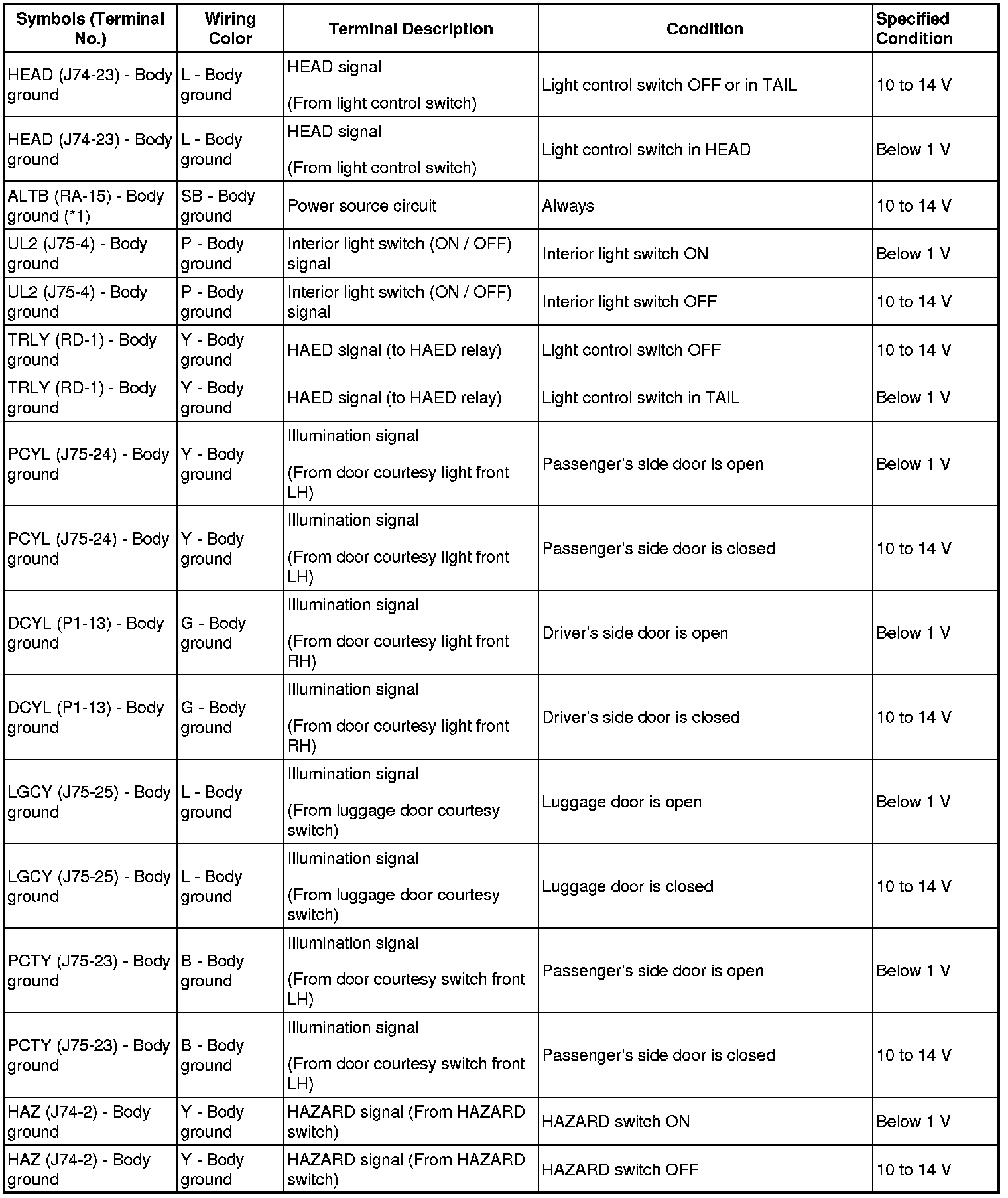

3. CHECK MAIN BODY ECU LH













- *1: w/ Outer Scuff Light

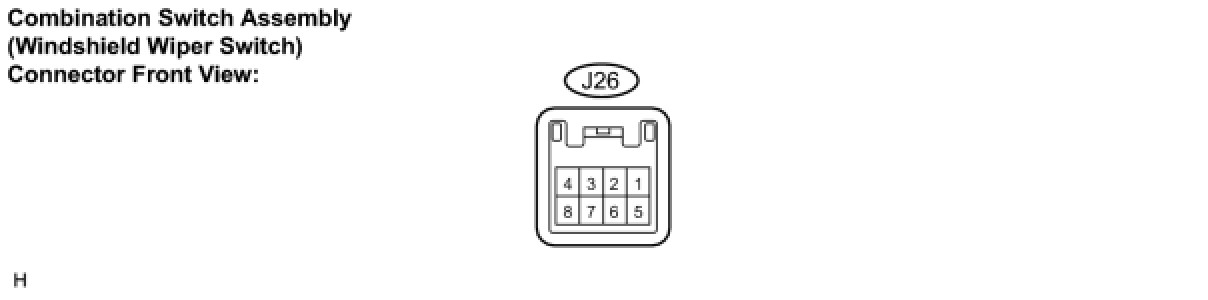

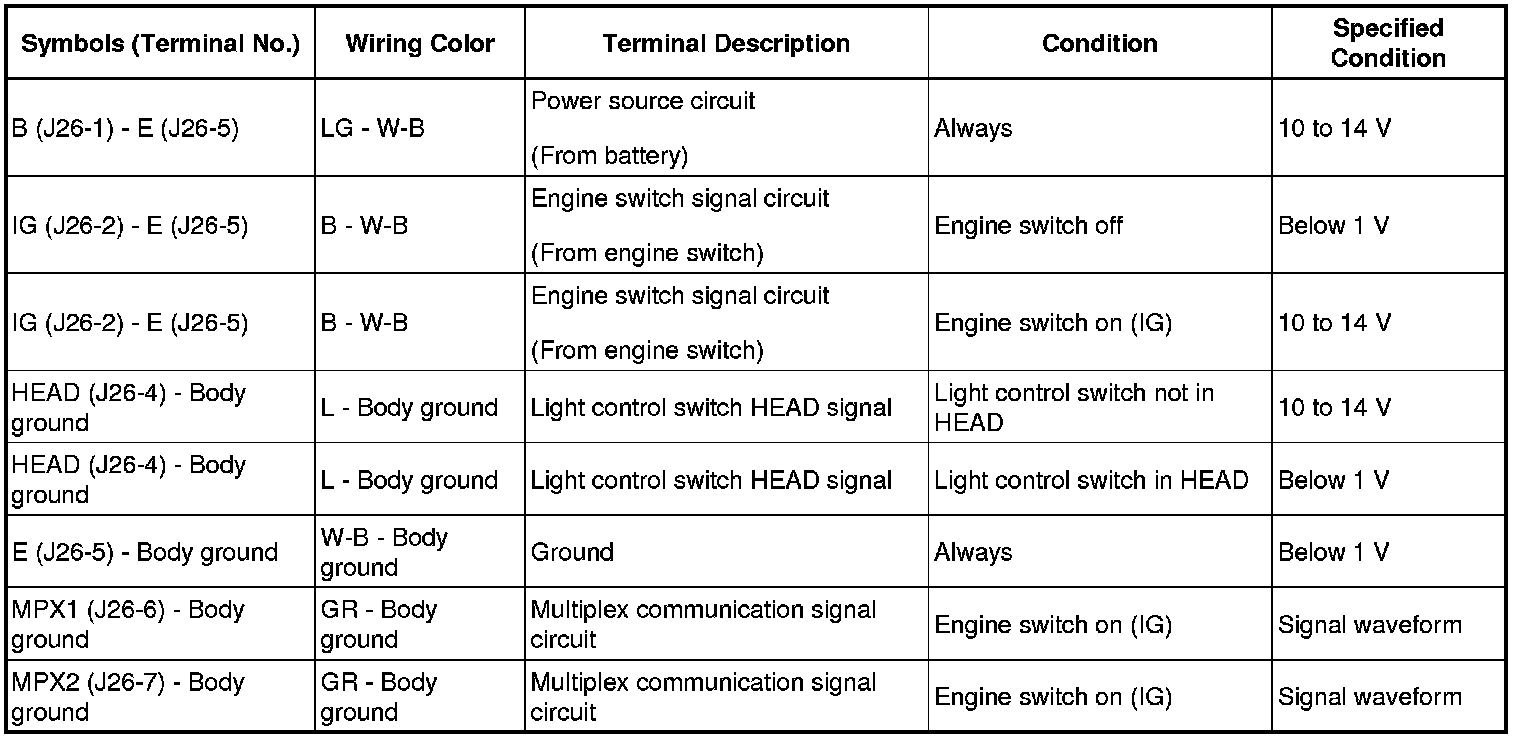

4. CHECK COMBINATION SWITCH ASSEMBLY (Windshield Wiper Switch)

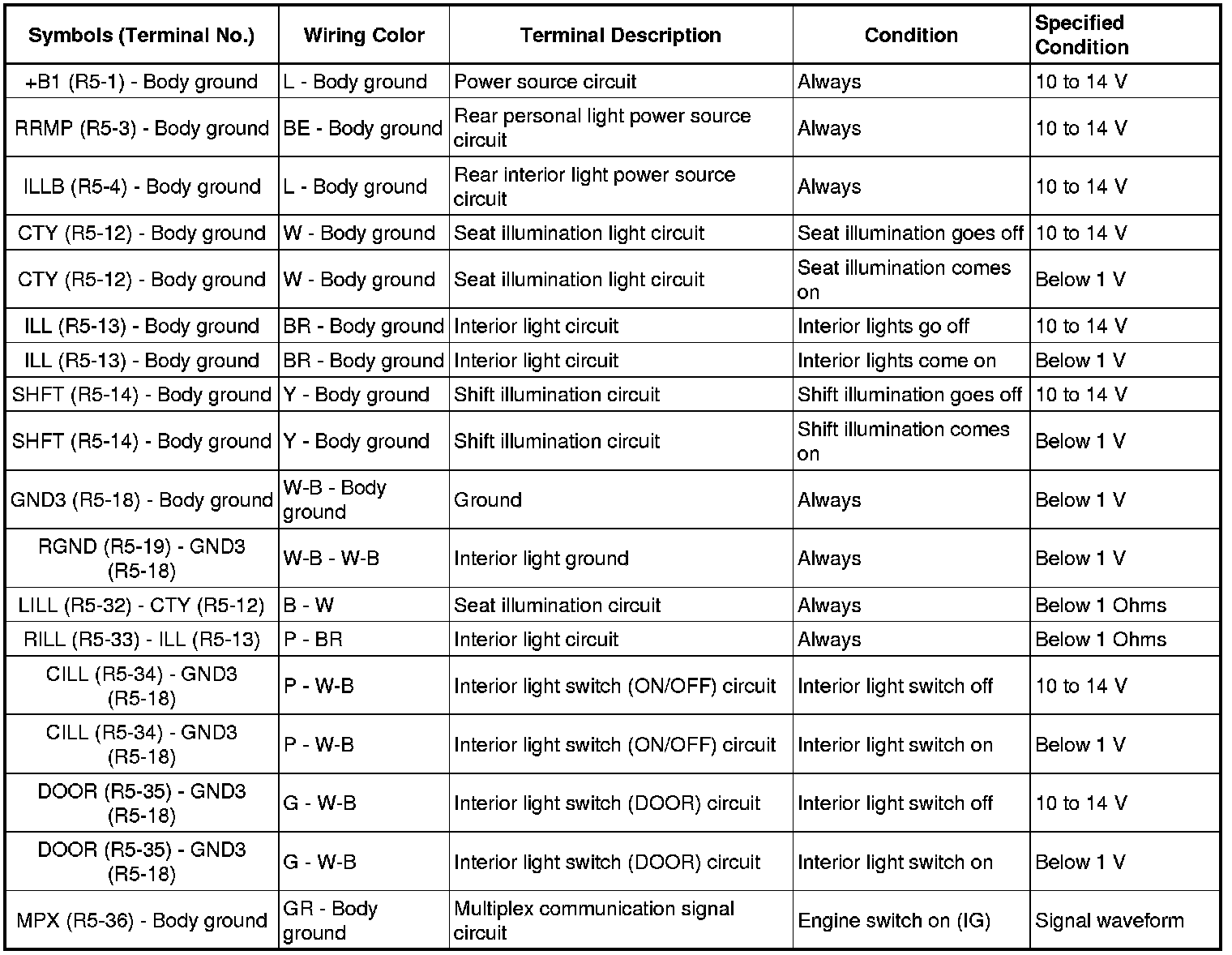

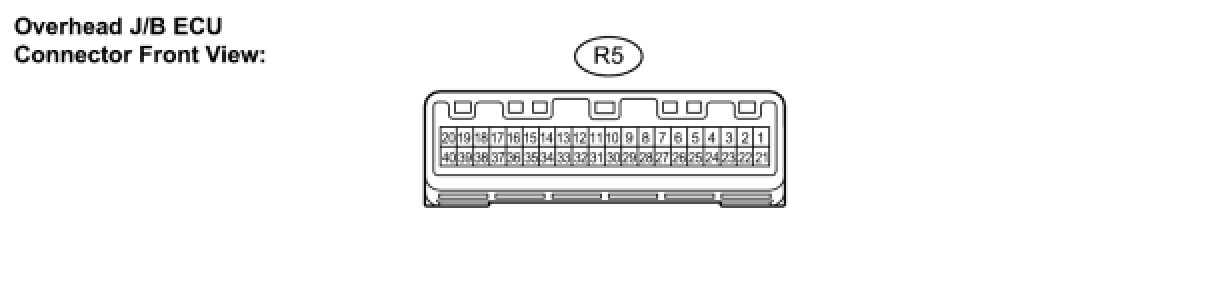

5. CHECK OVERHEAD J/B

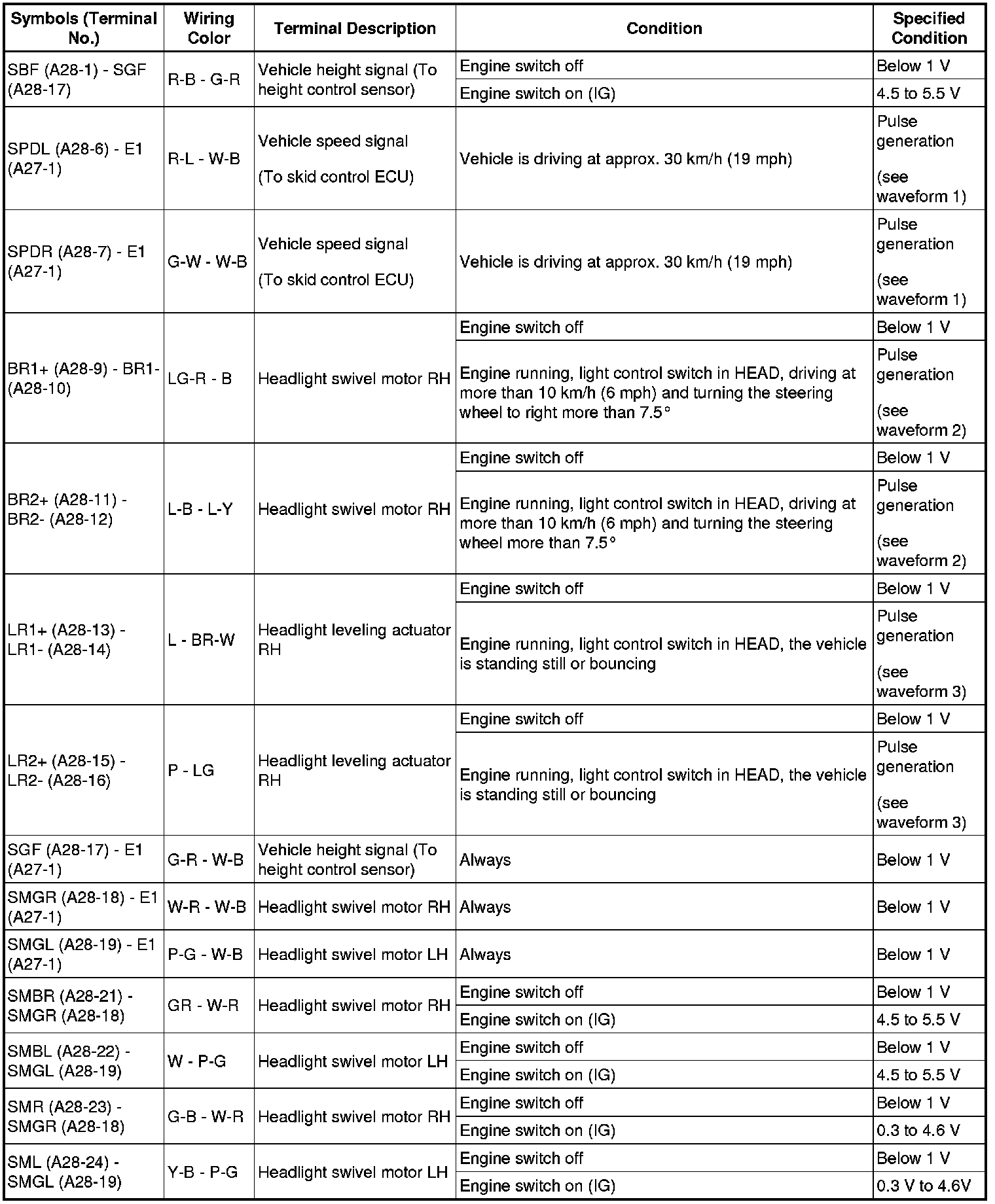

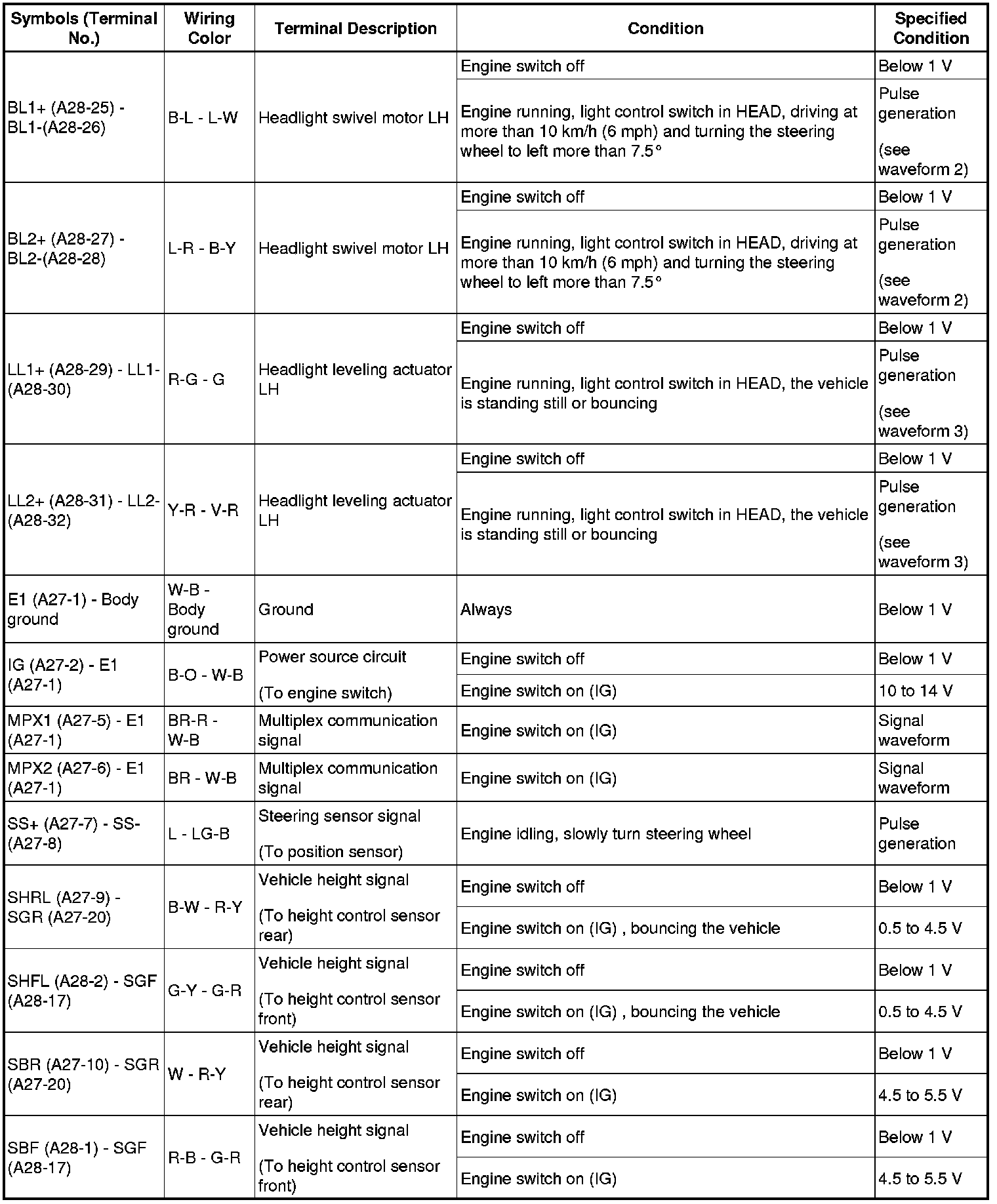

6. CHECK AFS ECU

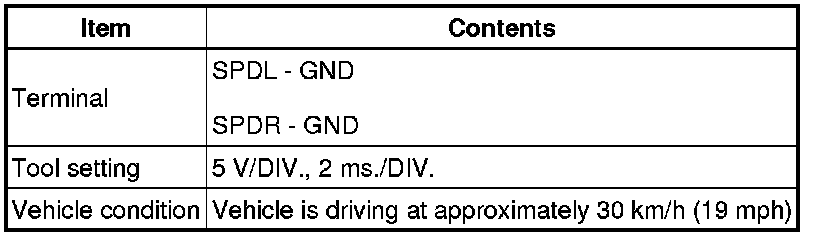

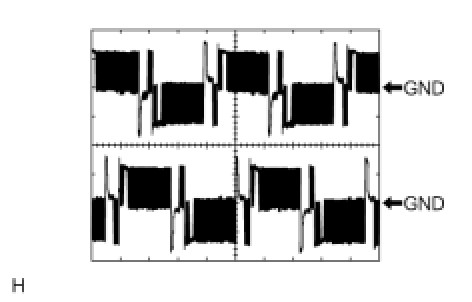

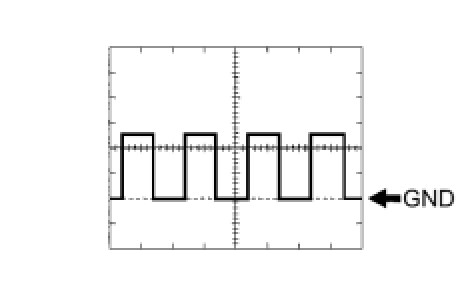

(a) Waveform 1

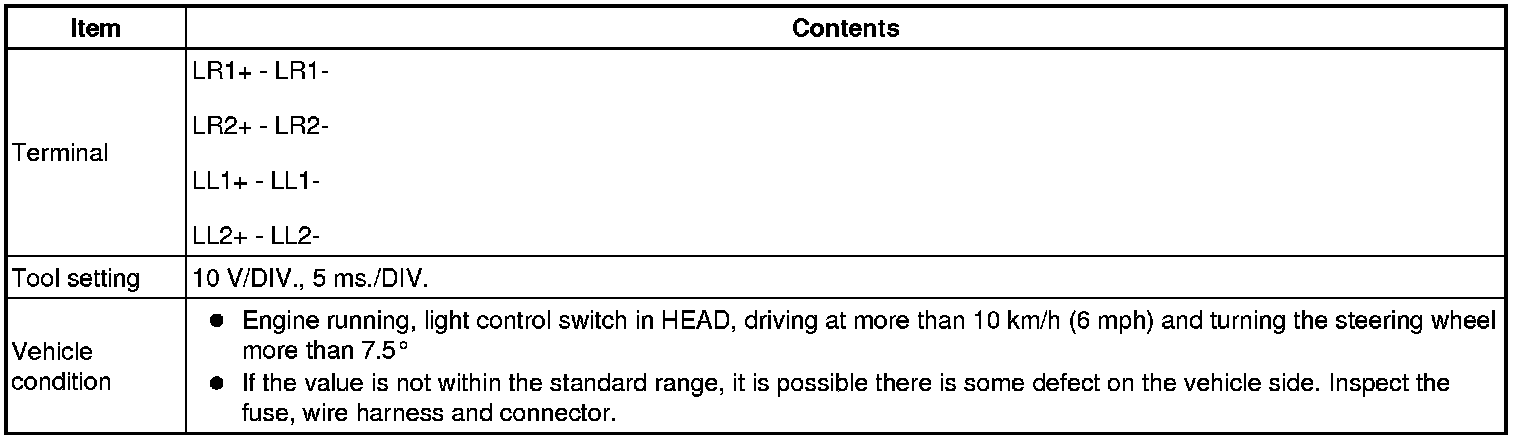

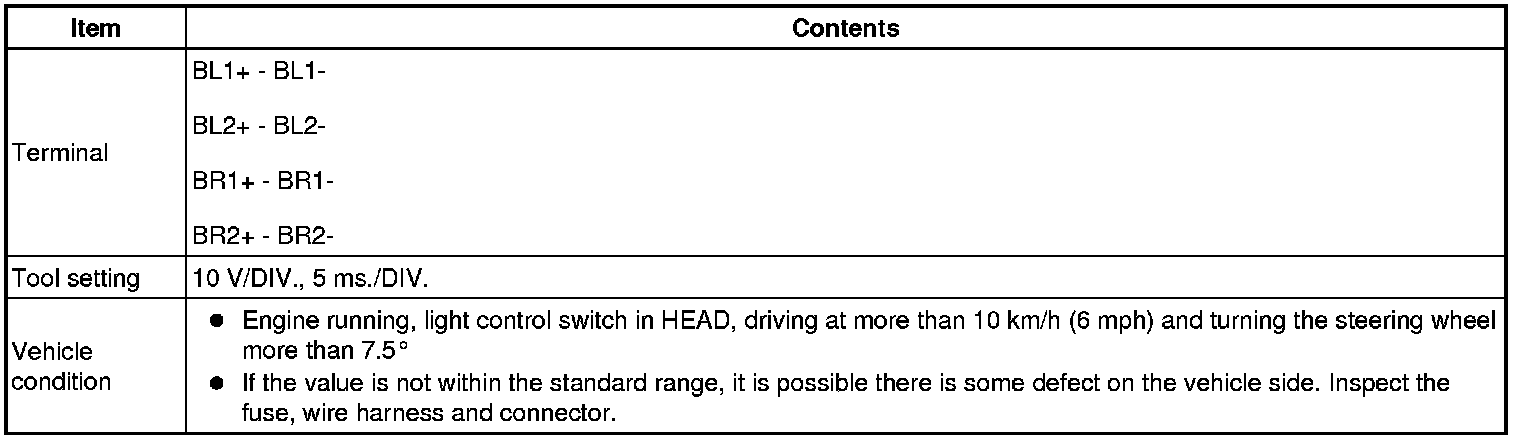

(b) Waveform 2










(c) Waveform 3
