LIGHTING: AFS ECU: INSTALLATION

INSTALLATION

1. INSTALL HEADLIGHT SWIVEL ECU ASSEMBLY

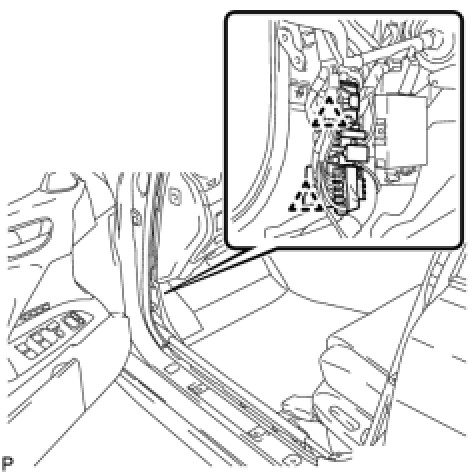

(a) Install the clamp.
(b) Connect the connector.

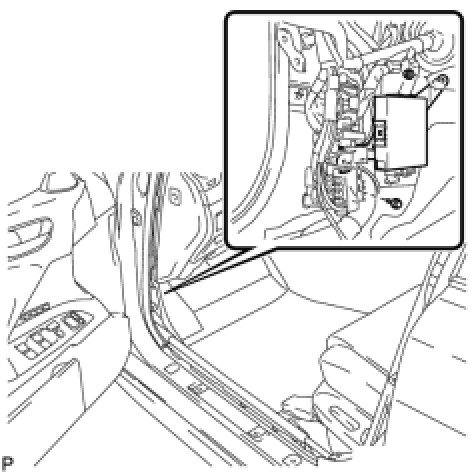

(c) Install the headlight swivel ECU assembly with the bolt and nut.

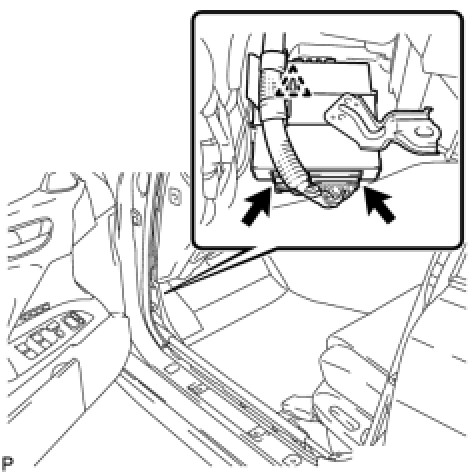

(d) Install the connector holder with the 2 clips.
2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
3. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation
4. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination) Installation
5. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination) Installation
