Reassembly

LIGHTING: HEADLIGHT ASSEMBLY: REASSEMBLY

REASSEMBLY

1. INSTALL HEADLIGHT PROTECTOR (for HID Headlight)





(a) Engage the claw.
(b) Using a T30"TORX" socket wrench, Install the headlight protector with the "TORX" bolt.
2. INSTALL HEADLIGHT LEVELING MOTOR BASE PACKING (for HID Headlight)
(a) Install a new headlight leveling motor base packing.

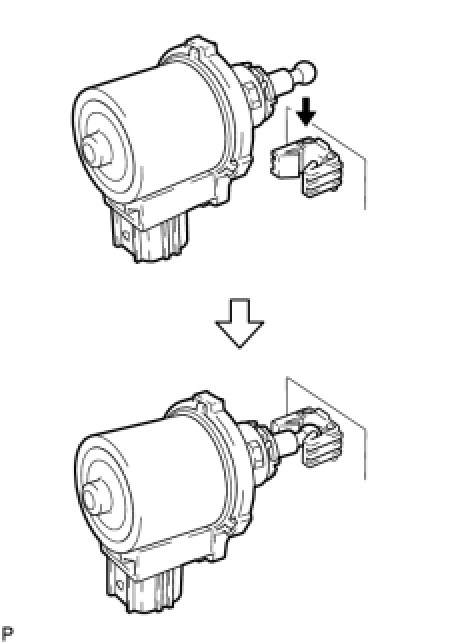

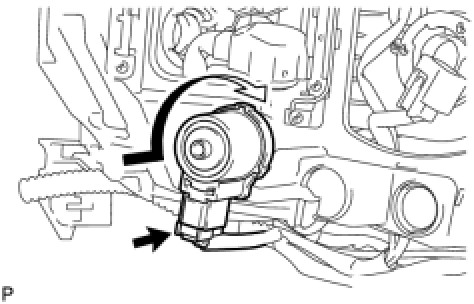

3. INSTALL HEADLIGHT LEVELING MOTOR (for HID Headlight)





(a) Engage the tip of the headlight leveling motor with the reflector.





(b) Turn the headlight leveling motor in the direction indicated by the arrow in the illustration to install it.
HINT:
For the headlight leveling motor RH, rotate it opposite to the direction of the arrow shown in the illustration.

(c) Connect the connector.

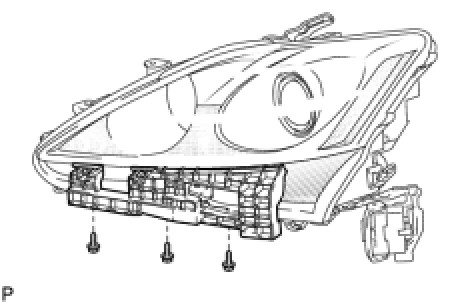

4. INSTALL FRONT BUMPER SIDE SUPPORT





(a) Install the front bumper side support with the 3 screws.

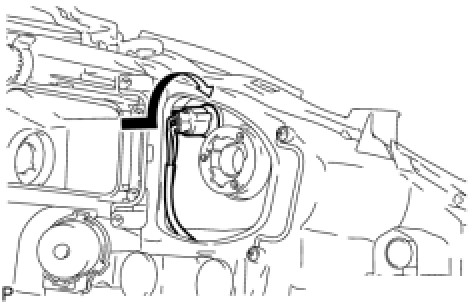

5. INSTALL FRONT TURN SIGNAL LIGHT BULB
(a) Install the 2 front turn signal light bulbs to the headlight cord.









(b) Turn the 2 front turn signal light bulbs and headlight cord in the direction indicated by the arrow in the illustration and install them as a unit.
6. INSTALL PARKING LIGHT SOCKET
(a) Connect the connector and install the parking light socket.

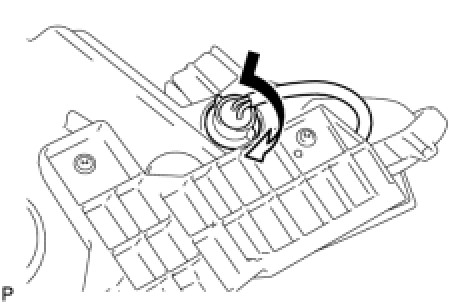

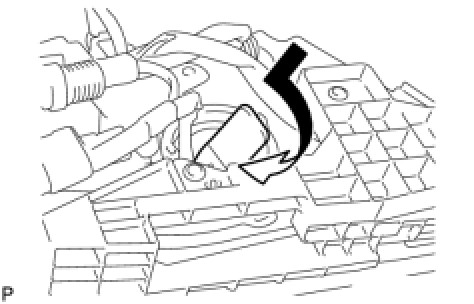

7. INSTALL PARKING LIGHT BULB
(a) Install the parking light bulb to the parking light socket.





(b) Turn the parking light bulb and parking light socket in the direction indicated by the arrow in the illustration and install them as a unit.
8. INSTALL NO. 2 HEADLIGHT BULB





(a) Install the No. 2 headlight bulb as shown in the illustration.
(b) Connect the connector.
9. INSTALL NO. 2 HEADLIGHT COVER GASKET
(a) Install a new No. 2 headlight cover gasket.

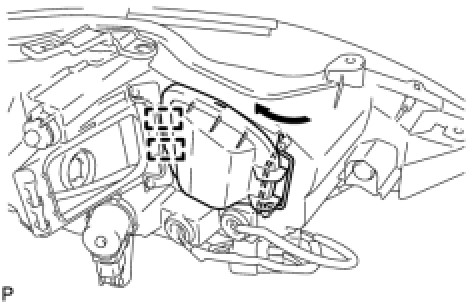

10. INSTALL NO. 2 HEADLIGHT BACK COVER





(a) Engage the 2 guides.
(b) Lock the set spring to install the No. 2 headlight back cover as shown in the illustration.
11. INSTALL DISCHARGE HEADLIGHT BULB (for HID Headlight)

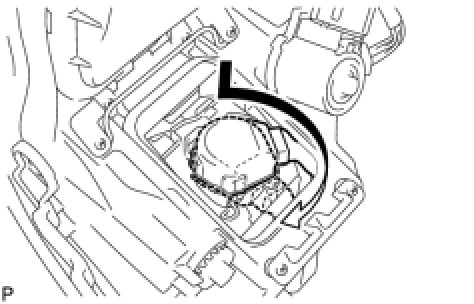

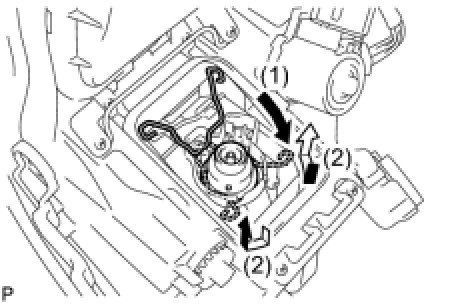

(a) Lock the set spring in the order shown in the illustration to install the discharge headlight bulb.

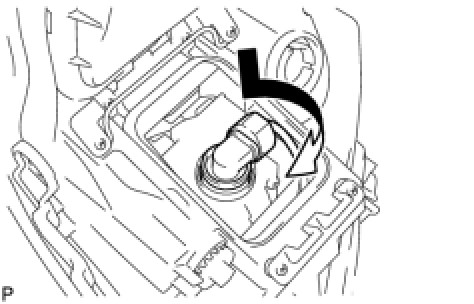

(b) Turn the light control ECU socket in the direction indicated by the arrow in the illustration to connect it.
12. INSTALL NO. 1 HEADLIGHT BULB (for Halogen Headlight)





(a) Install the No. 1 headlight bulb as shown in the illustration.
(b) Connect the connector.
13. INSTALL NO. 1 HEADLIGHT COVER GASKET
(a) Install a new No. 1 headlight cover gasket.

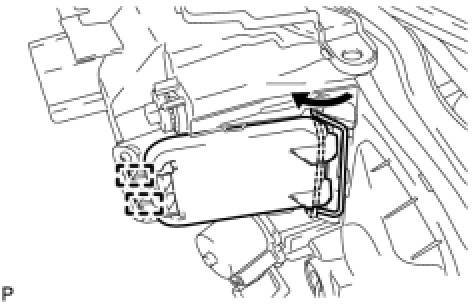

14. INSTALL NO. 1 HEADLIGHT BACK COVER





(a) Engage the 2 guides.
(b) Lock the set spring as shown in the illustration to install the No. 1 headlight back cover.
