Installation

LIGHTING: HEADLIGHT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL HEADLIGHT ASSEMBLY





(a) Engage the pin.

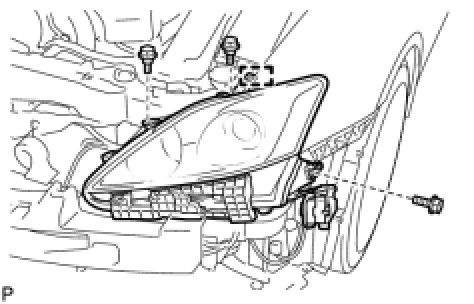

(b) Install the headlight assembly with the 3 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)

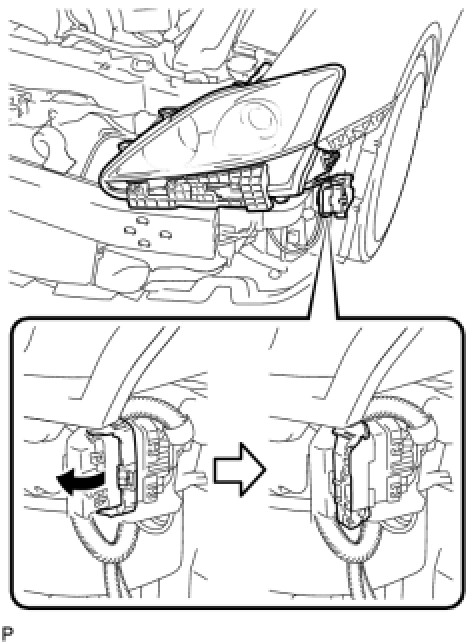

(c) Connect the connector as shown in the illustration.
2. INSTALL FRONT UPPER FENDER PROTECTOR Installation
3. INSTALL ENGINE ROOM SIDE COVER LH (for LH Side) Installation
4. INSTALL ENGINE ROOM SIDE COVER RH (for RH Side) Installation
5. INSTALL FRONT BUMPER ENERGY ABSORBER Reassembly
6. INSTALL FRONT BUMPER ASSEMBLY Installation
7. INSTALL RADIATOR GRILLE PROTECTOR Installation
8. INSTALL COOL AIR INTAKE DUCT SEAL Installation
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for HID Headlight)
10. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT Adjustments
11. PREPARATION FOR HEADLIGHT AIMING (Using a tester) Adjustments
12. PREPARATION FOR HEADLIGHT AIMING (Using a screen) Adjustments
13. HEADLIGHT AIMING INSPECTION Adjustments
14. HEADLIGHT AIMING ADJUSTMENT Adjustments
15. VEHICLE PREPARATION FOR FOG LIGHT AIM Adjustments
16. PREPARATION FOR FOG LIGHT AIMING Adjustments
17. FOG LIGHT AIMING INSPECTION Adjustments
18. FOG LIGHT AIMING ADJUSTMENT Adjustments
