FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
2009
>>
IS 250 RWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Testing and Inspection
Backup Lamp: Testing and Inspection

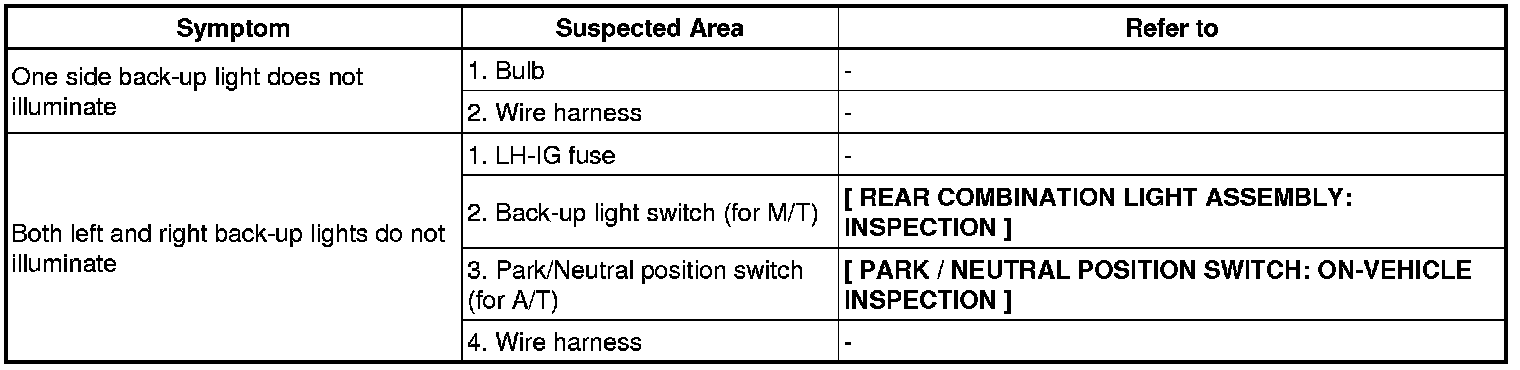

LIGHTING: LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE
PROBLEM SYMPTOMS TABLE
Back-up light system:
Symptom Chart (Part 9):
