Disassembly

AIR CONDITIONING: COMPRESSOR AND MAGNETIC CLUTCH (for 2WD): DISASSEMBLY

DISASSEMBLY

1. REMOVE MAGNETIC CLUTCH ASSEMBLY





(a) Place the compressor and magnetic clutch in a vise.

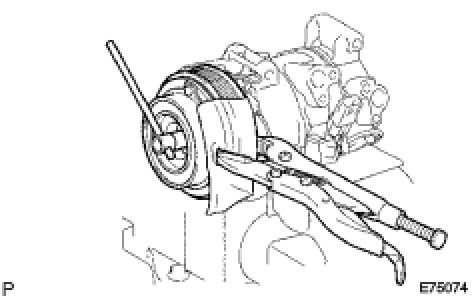

(b) Using vise pliers, hold the magnetic clutch hub.
(c) Remove the bolt, magnetic clutch hub and magnetic clutch washers.
HINT:
There is no set number of magnetic clutch washers since they are used for adjusting.

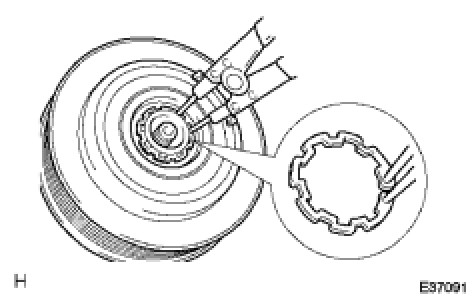

(d) Using a snap ring expander, remove the snap ring and magnetic clutch rotor.
NOTE:
Take care not to damage the seal cover of the bearing when removing the snap ring.

(e) Disconnect the connector.
(f) Remove the screw.

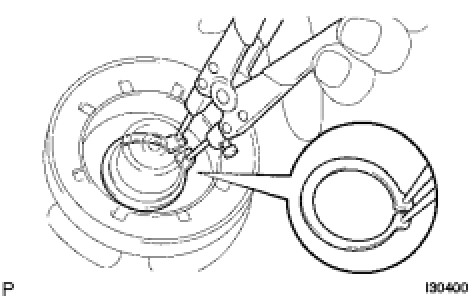

(g) Using a snap ring expander, remove the snap ring and magnetic clutch stator.
