Parking Assist [Intuitive Parking Assist]

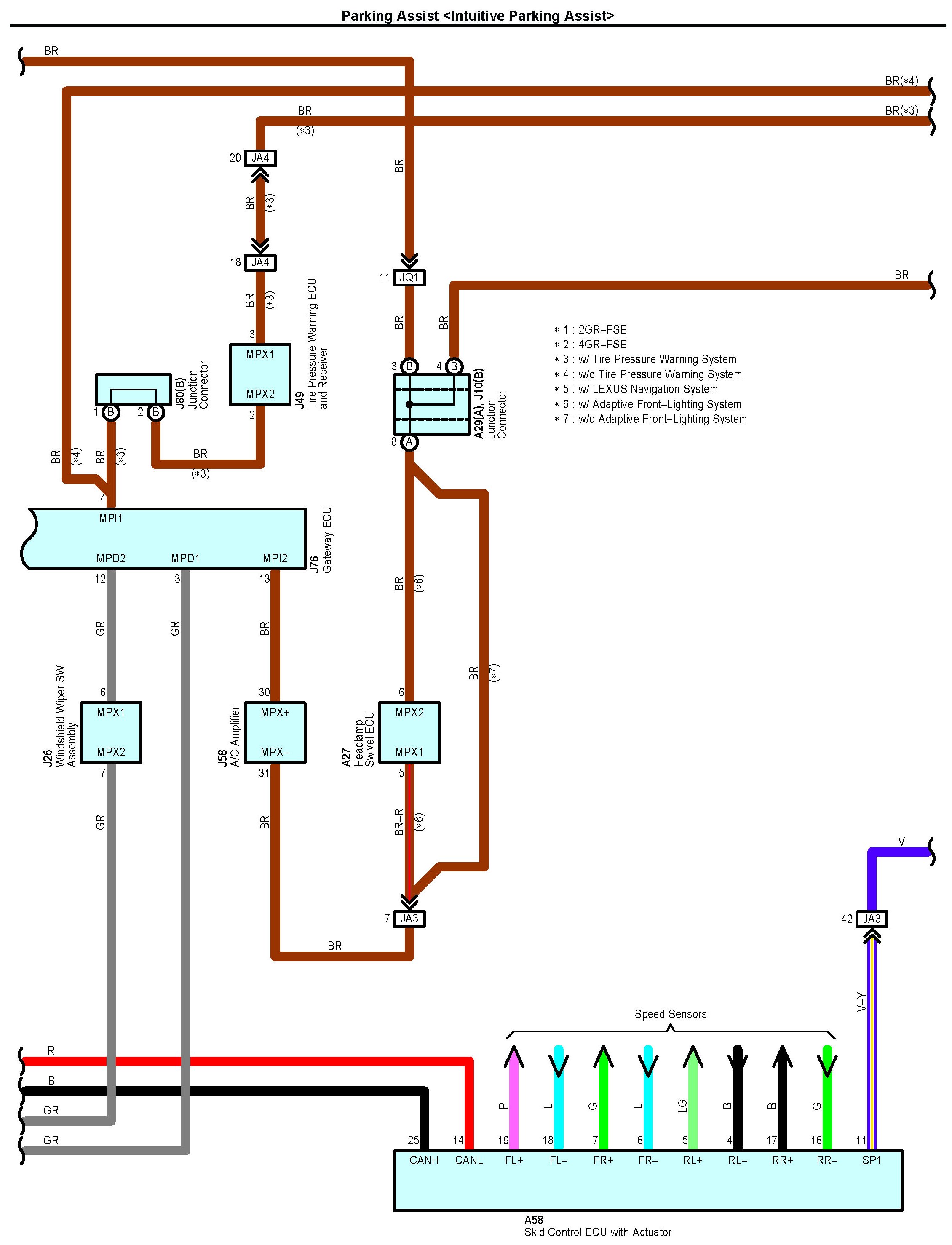

Parking Assist <Intuitive Parking Assist> Part 1:

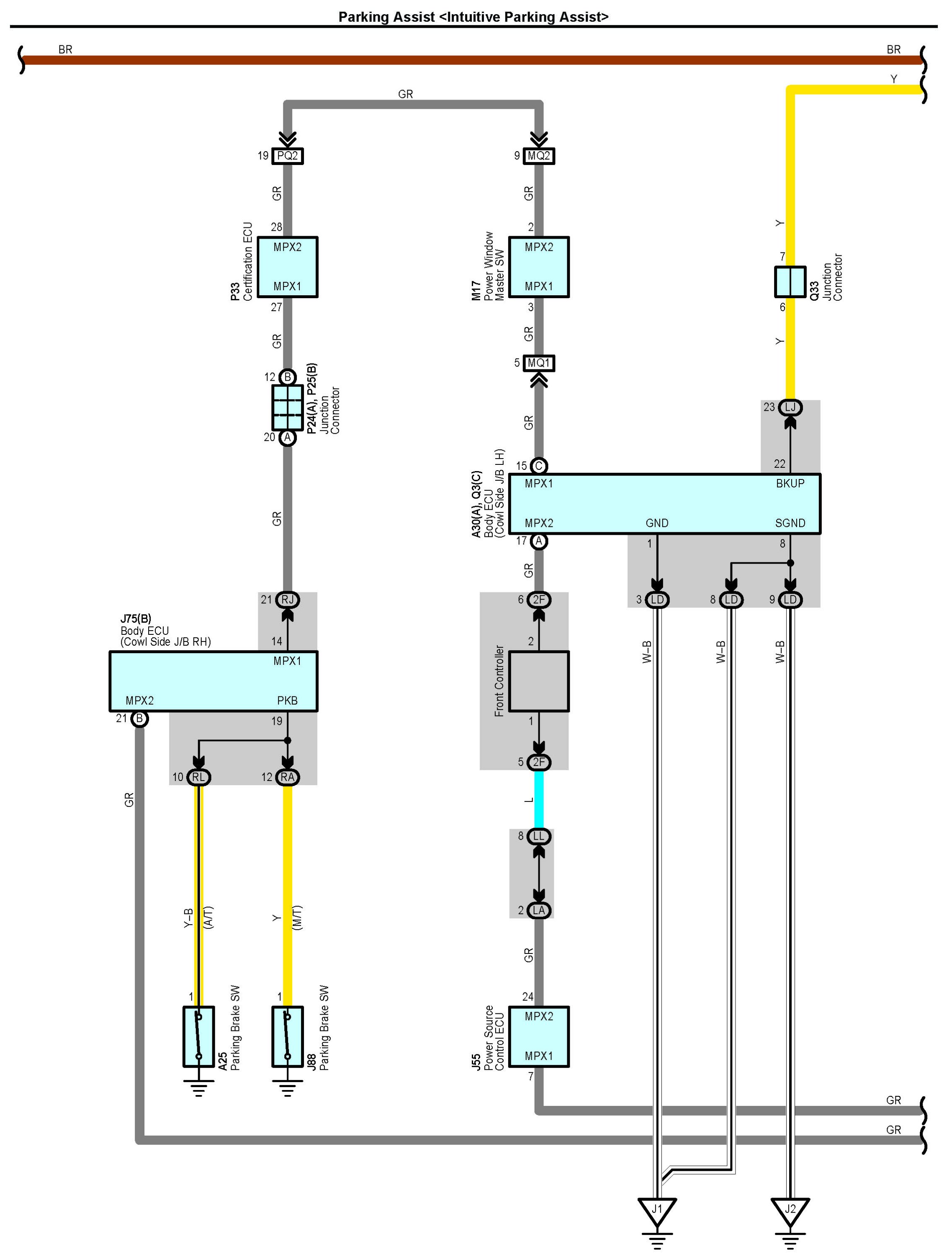

Parking Assist <Intuitive Parking Assist> Part 2:

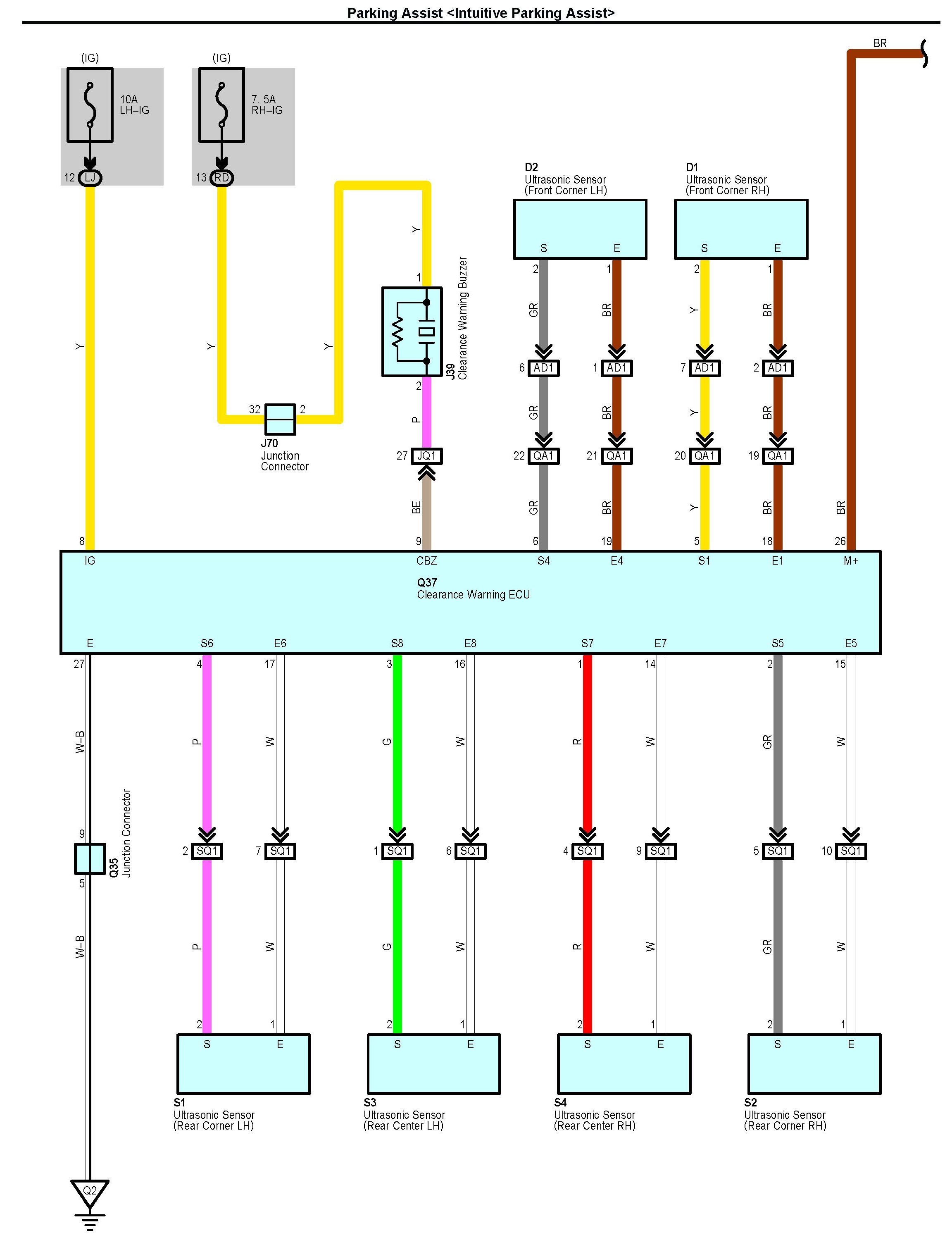

Parking Assist <Intuitive Parking Assist> Part 3:

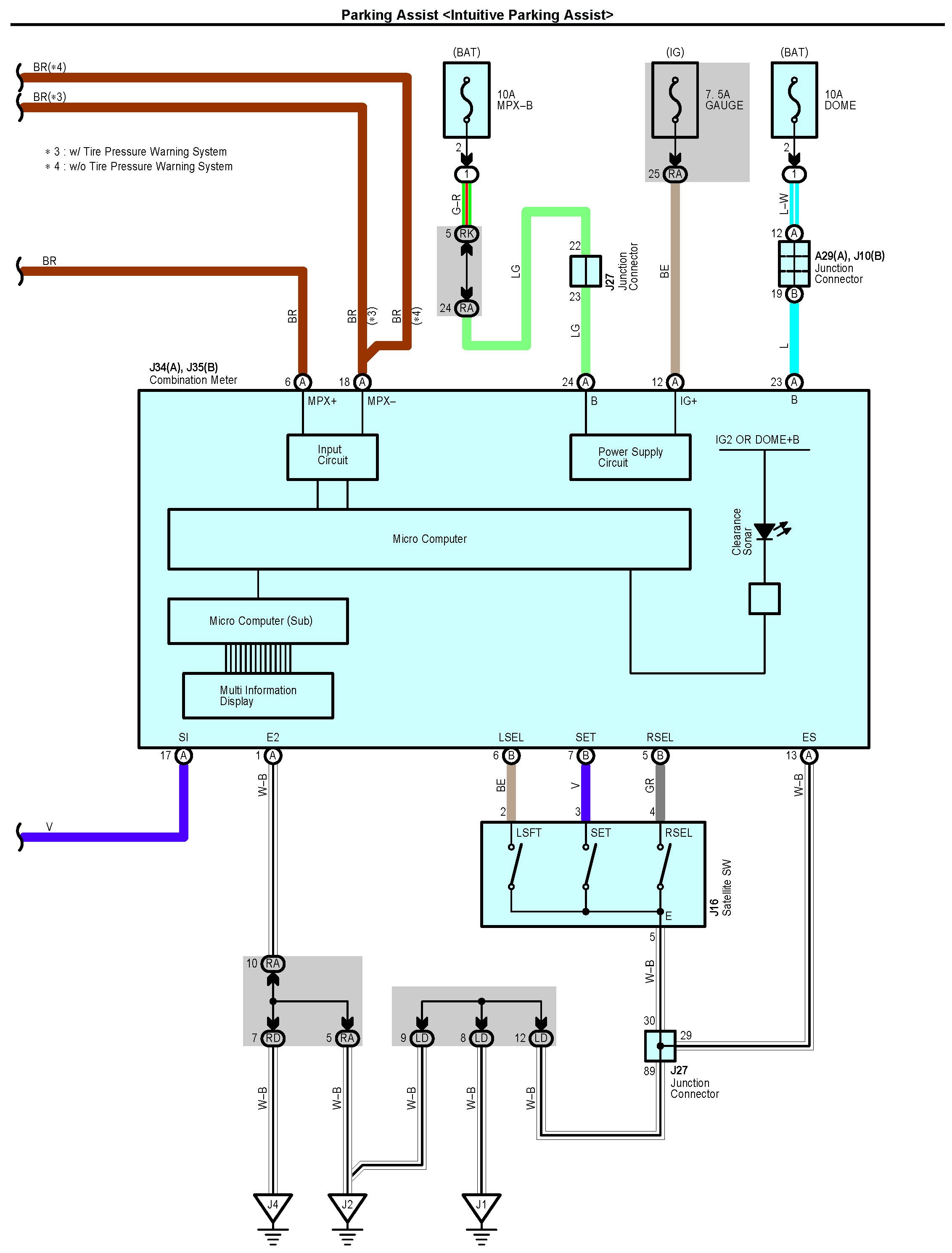

Parking Assist <Intuitive Parking Assist> Part 4:

Parking Assist <Intuitive Parking Assist> Part 5:

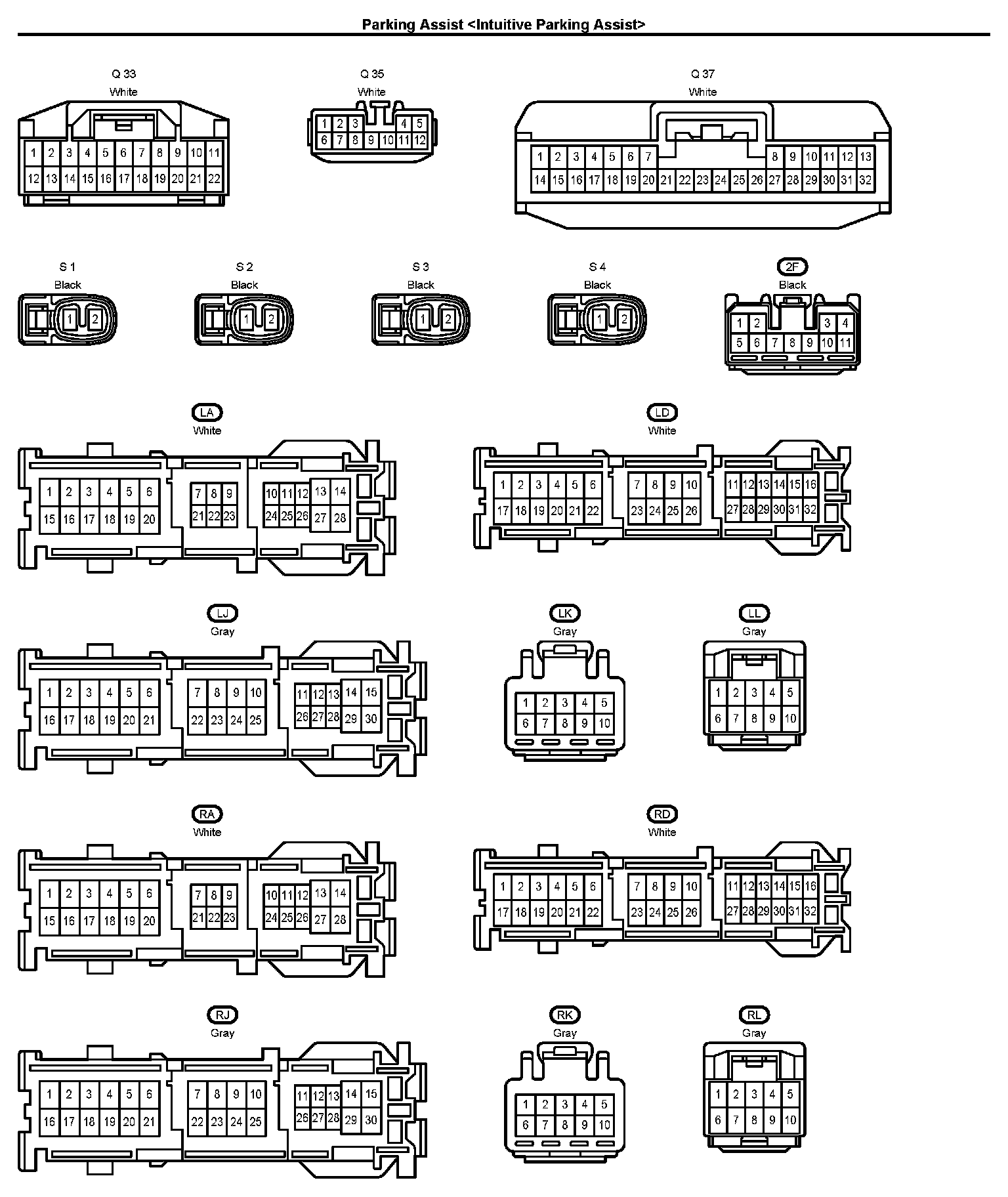

Connectors Part 1:

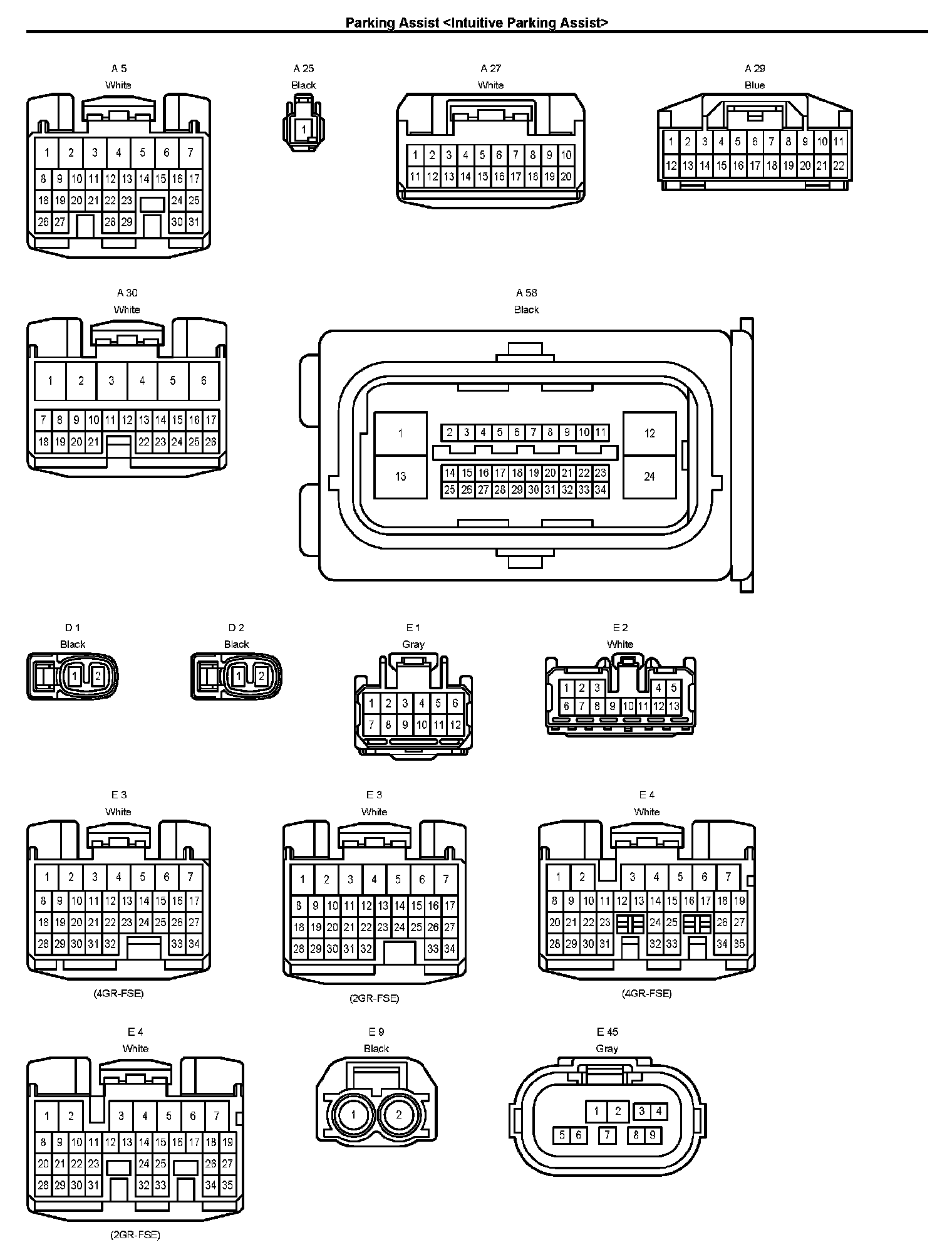

Connectors Part 2:

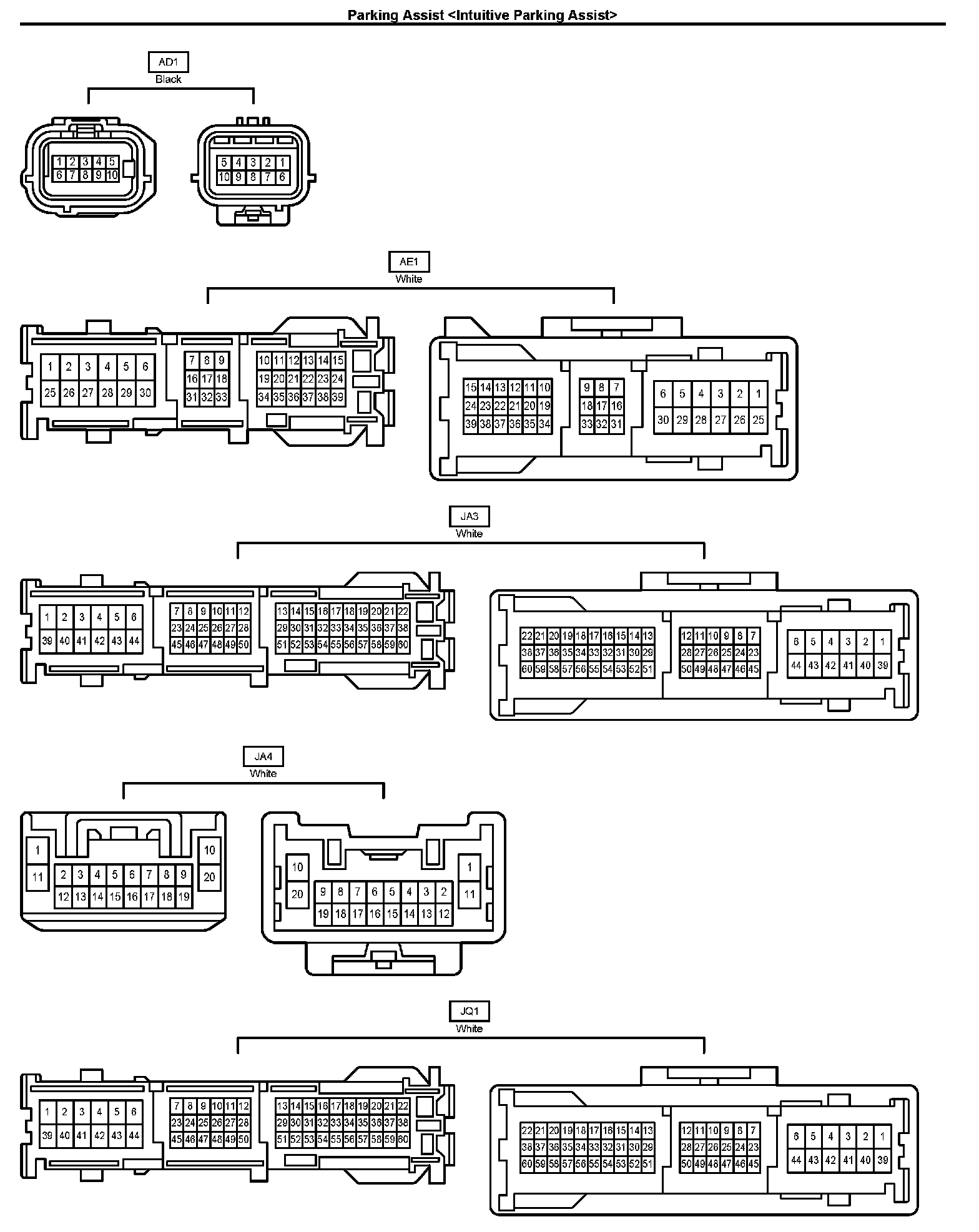

Connectors Part 3:

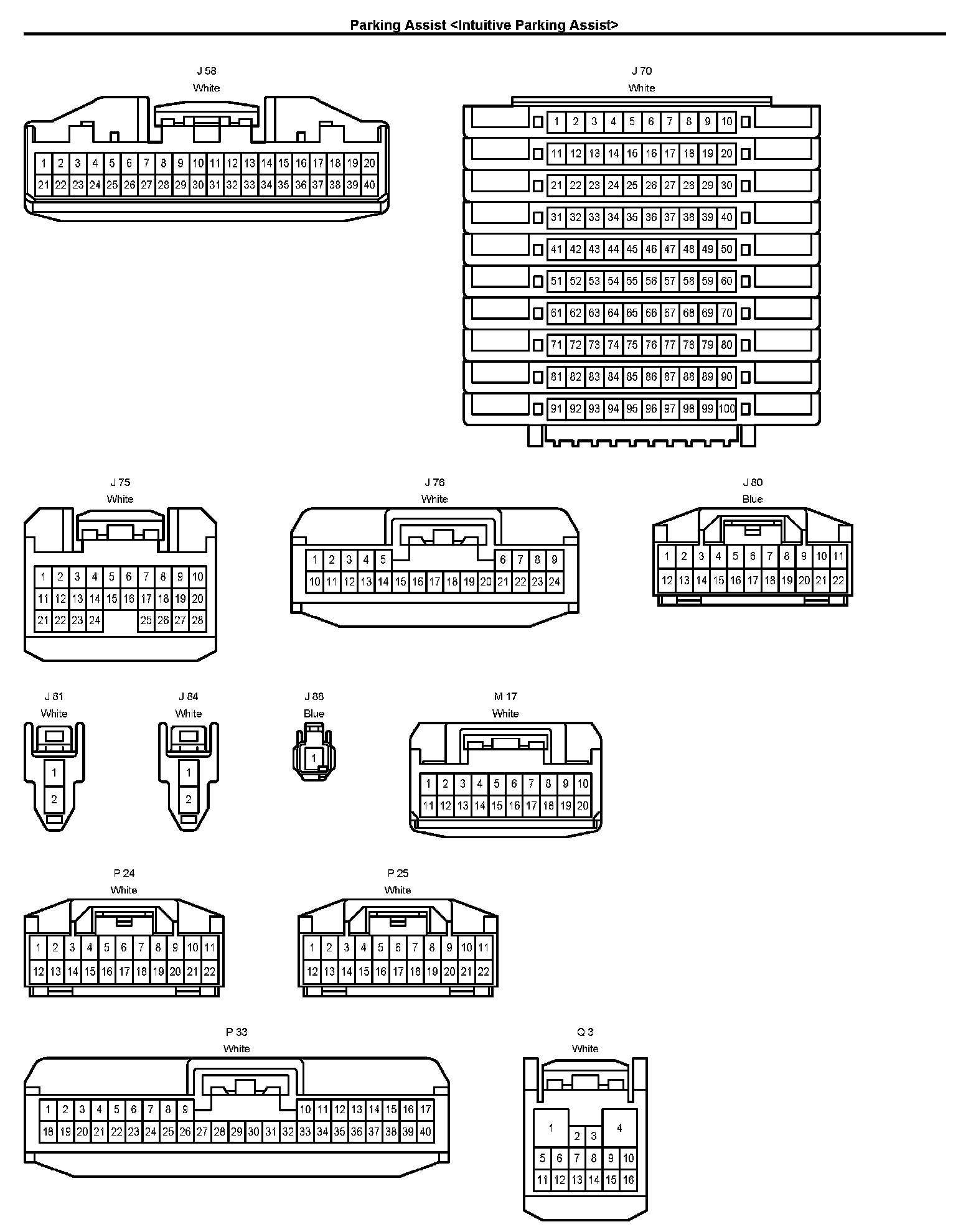

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
