Audio System, LEXUS Navigation System, Parking Assist [Rear View Monitor]

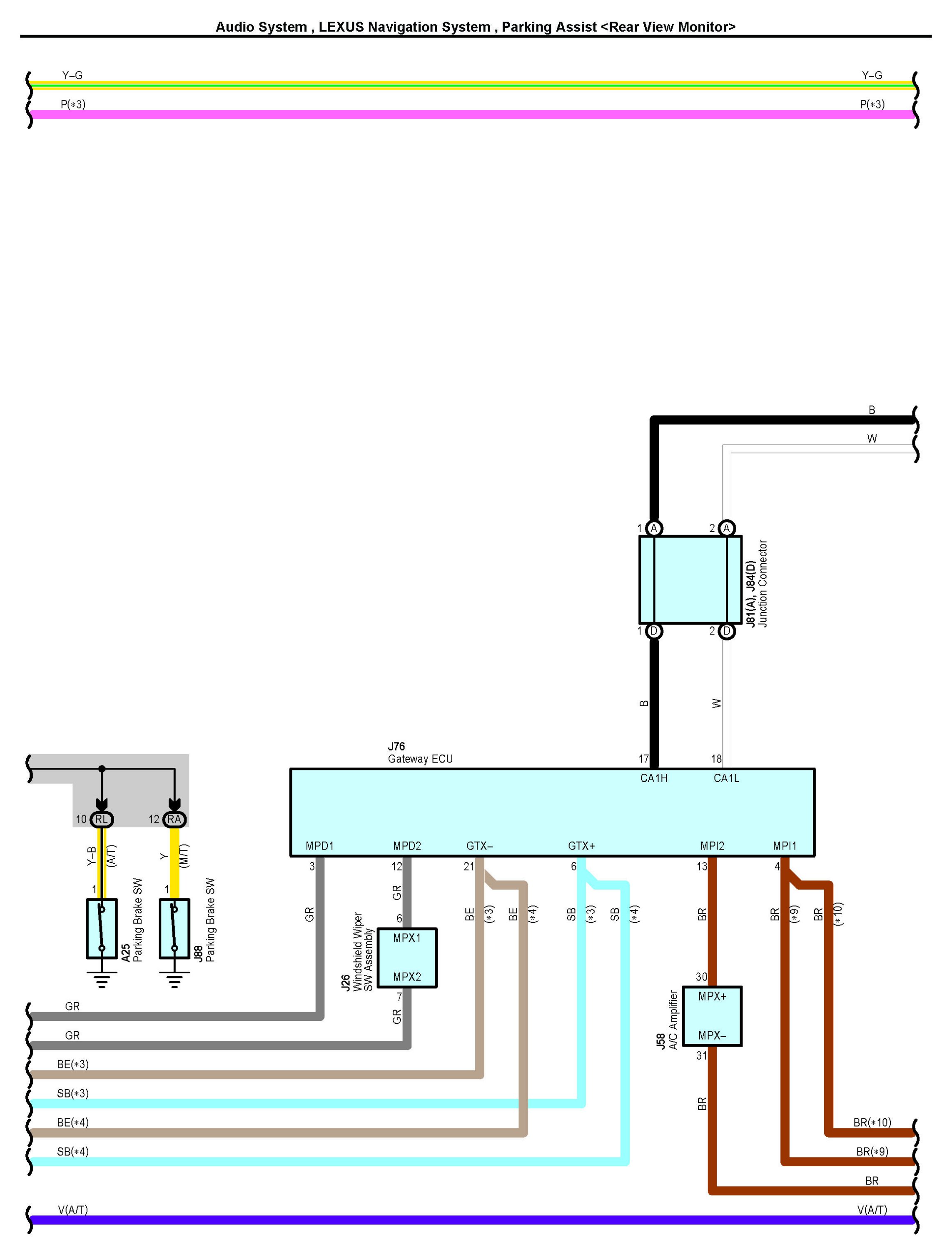

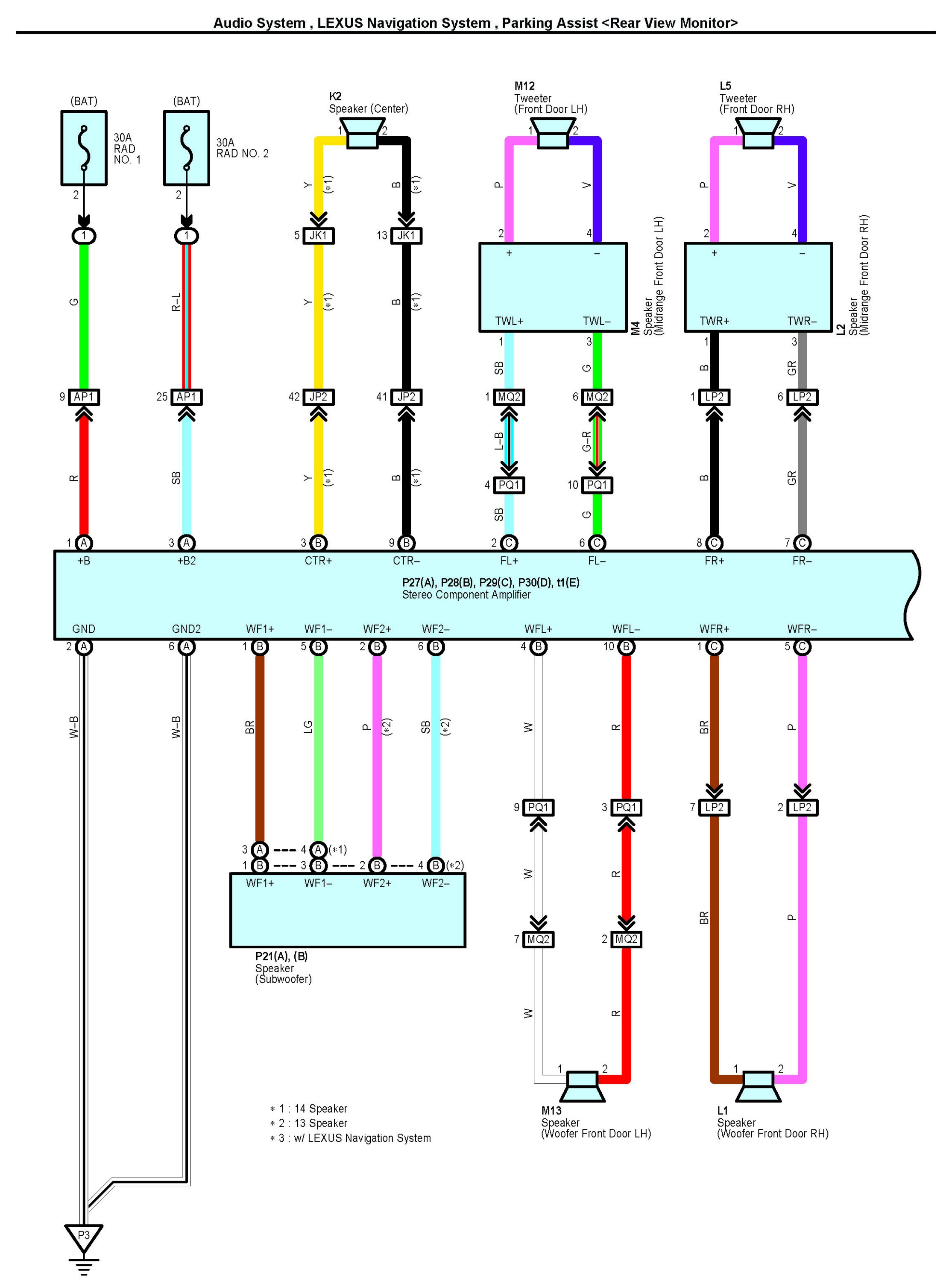

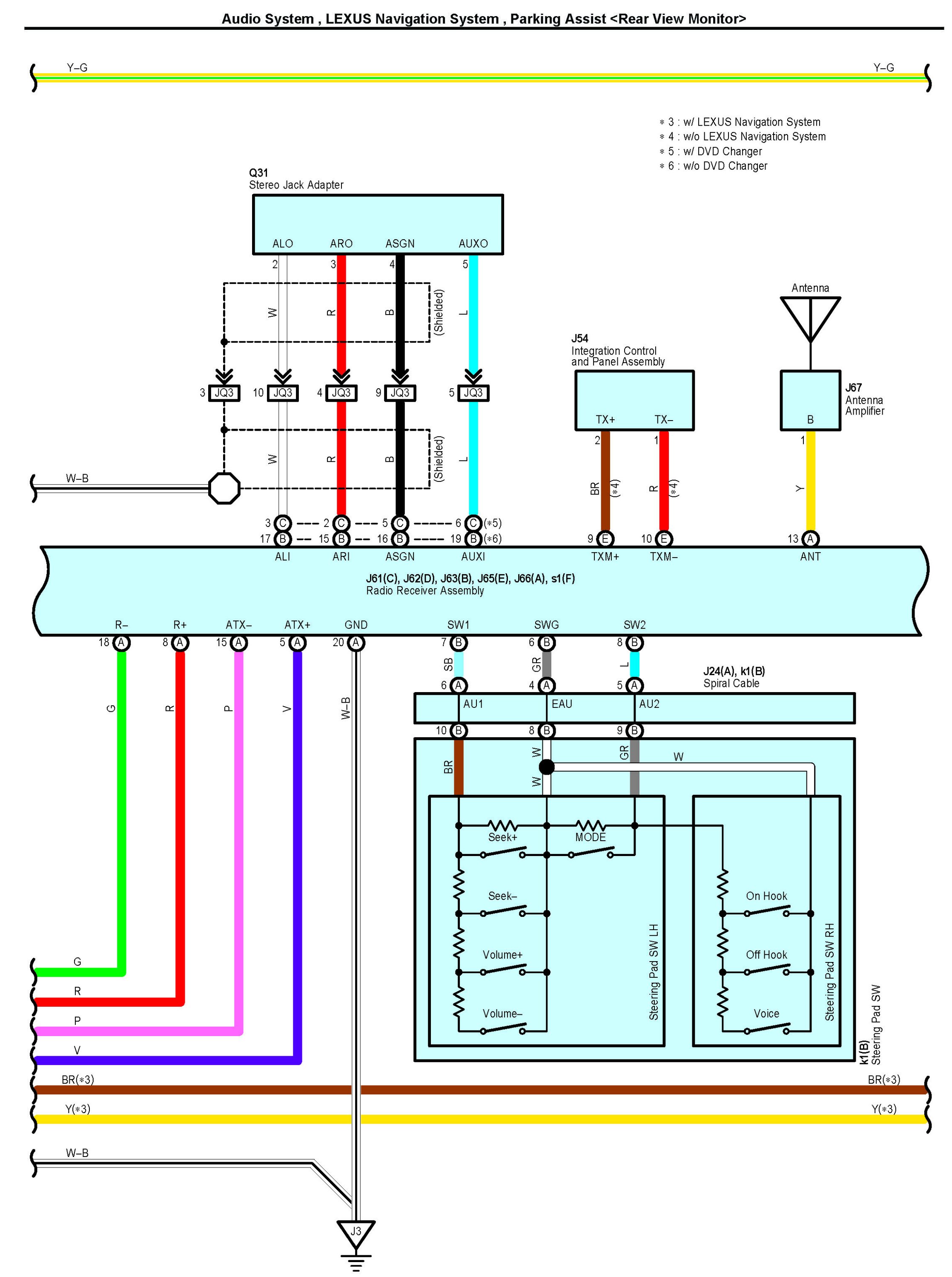

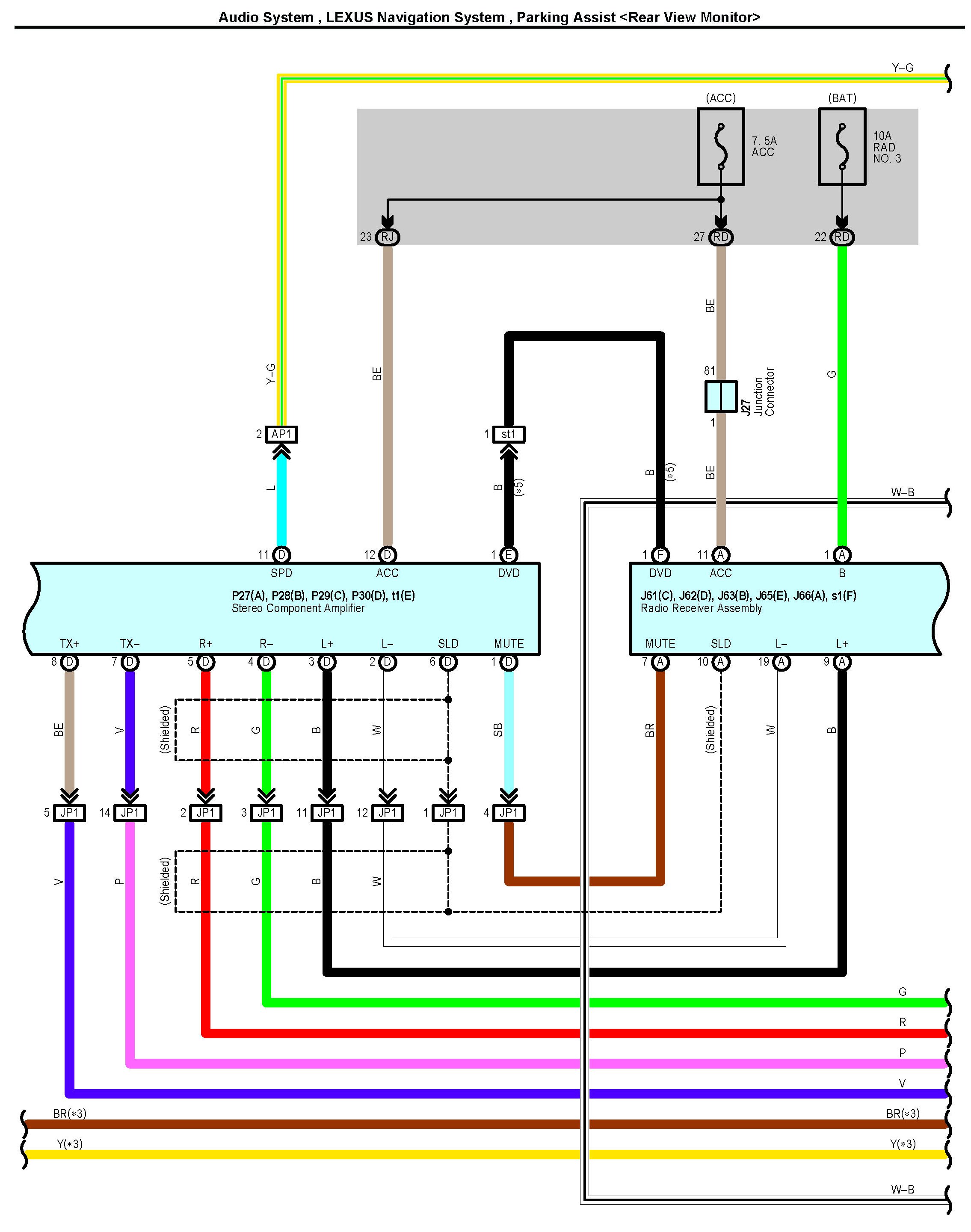

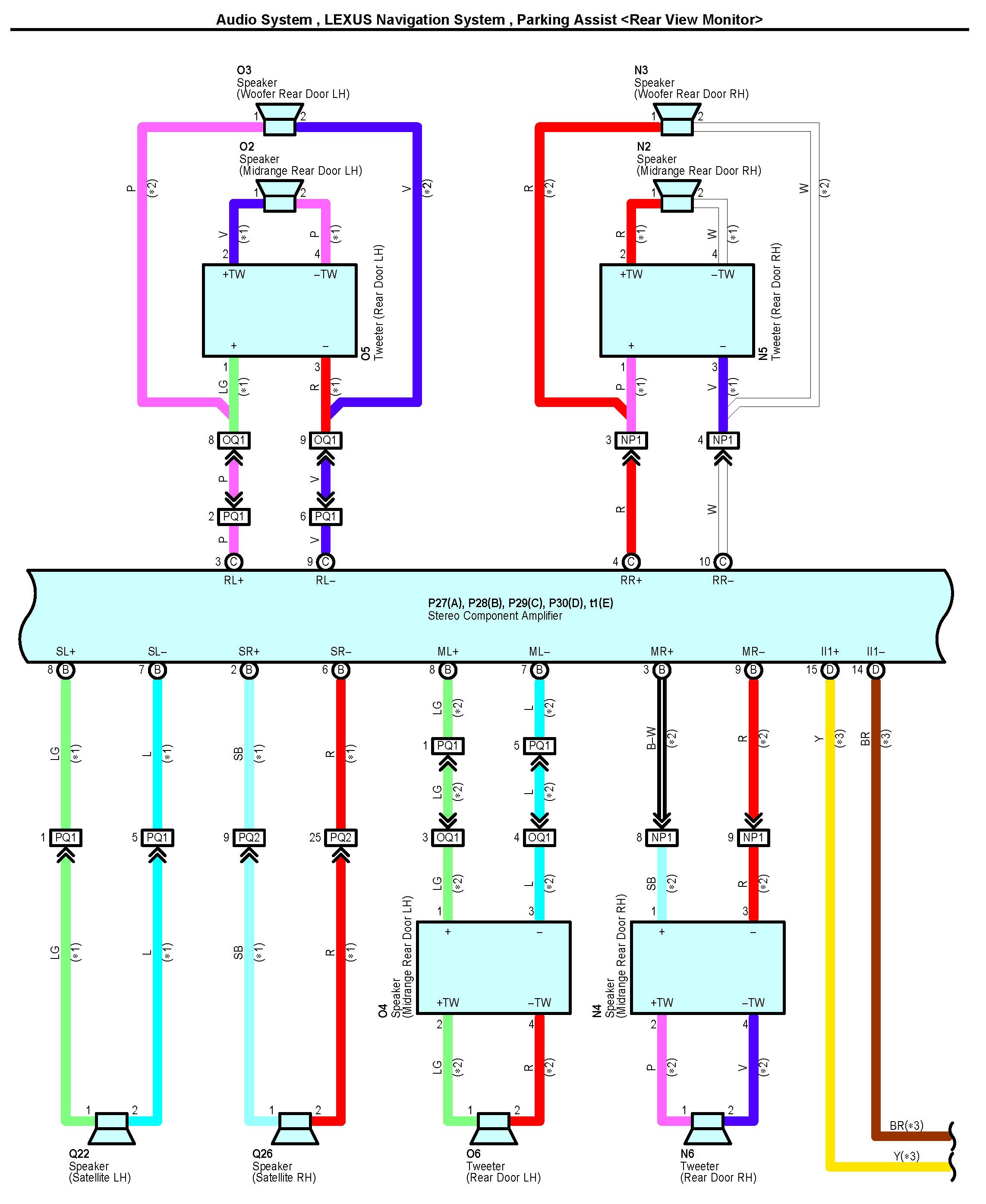

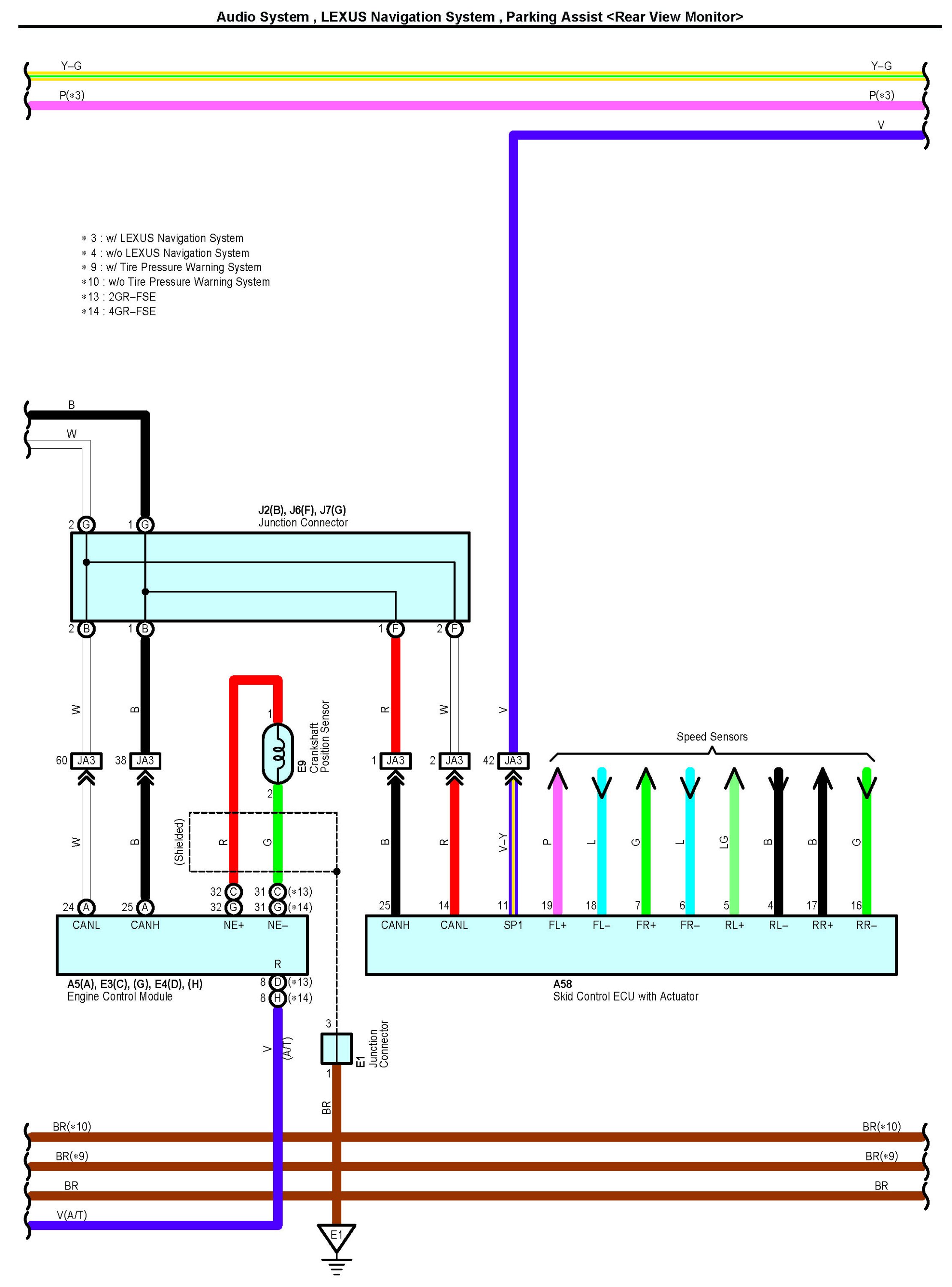

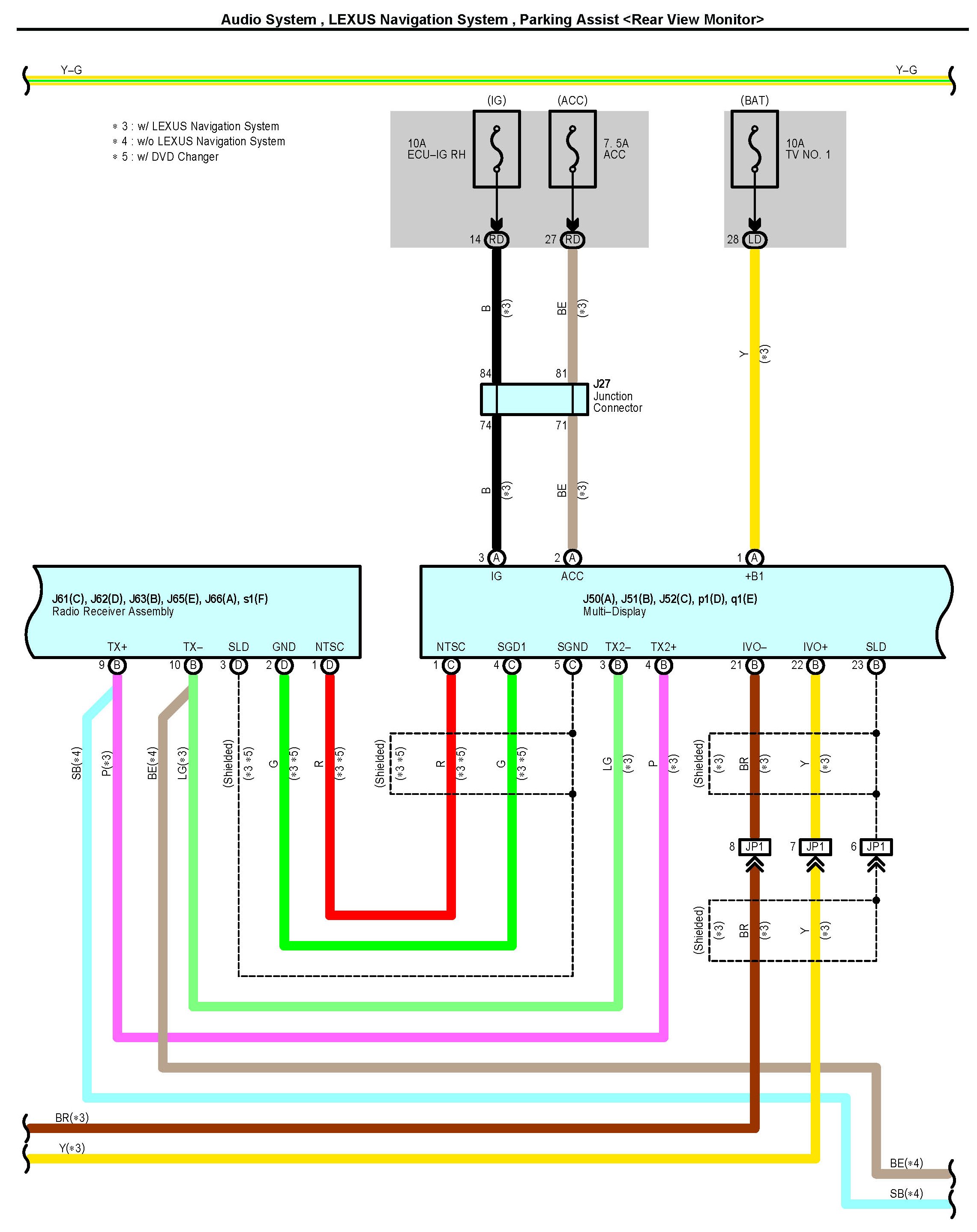

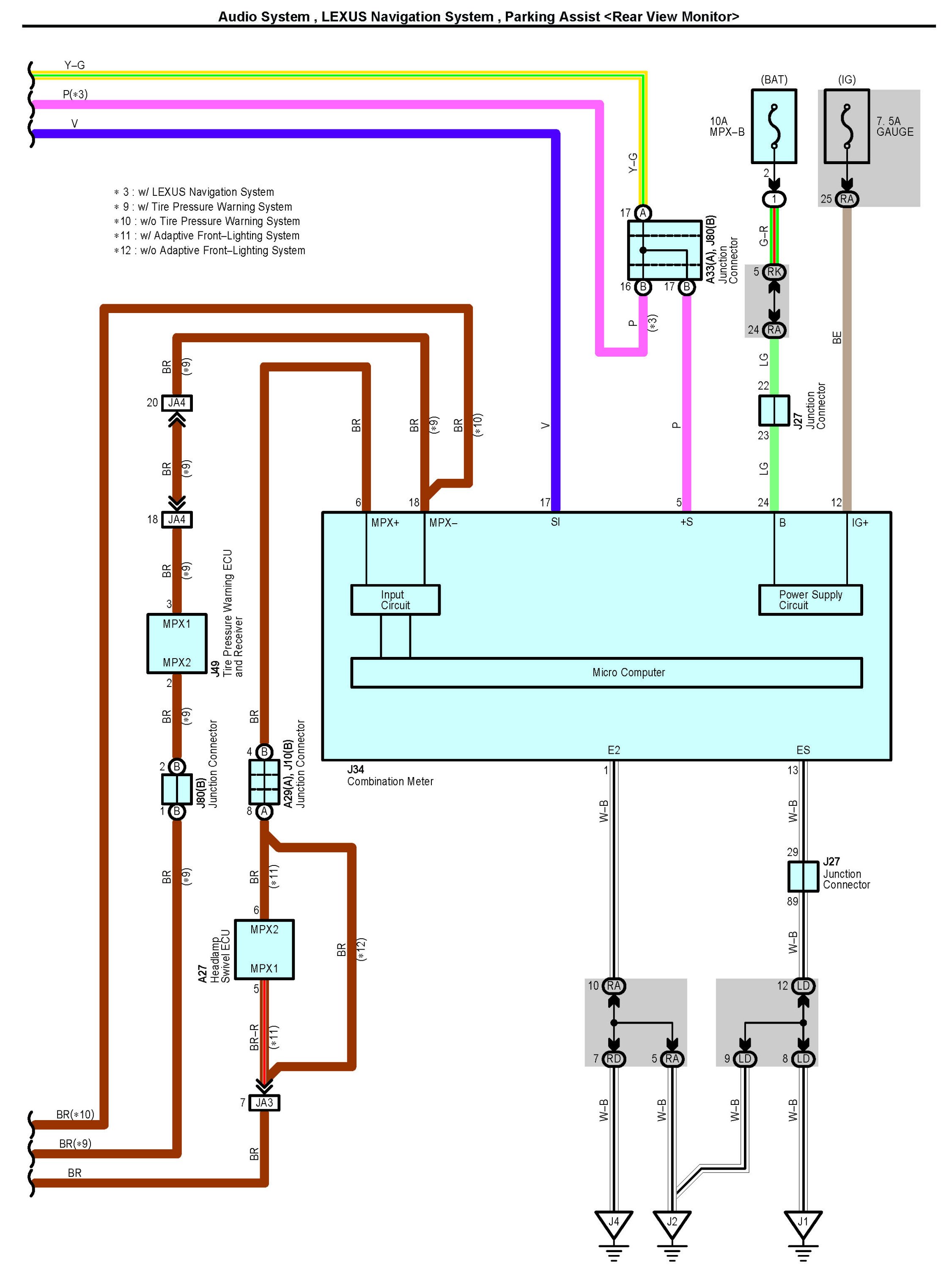

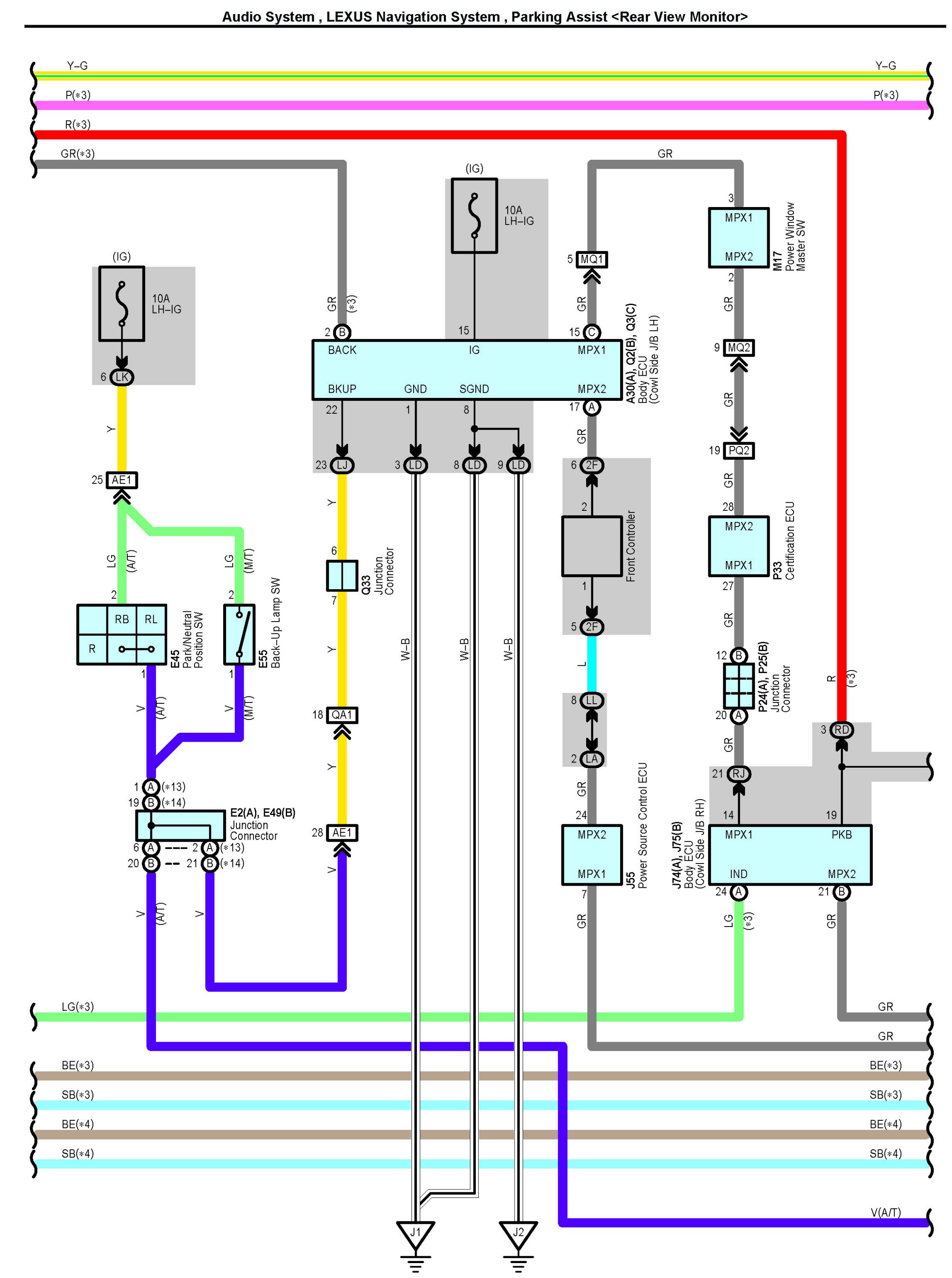

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 1:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 2:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 3:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 4:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 5:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 6:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 7:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 8:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 9:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 10:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 11:

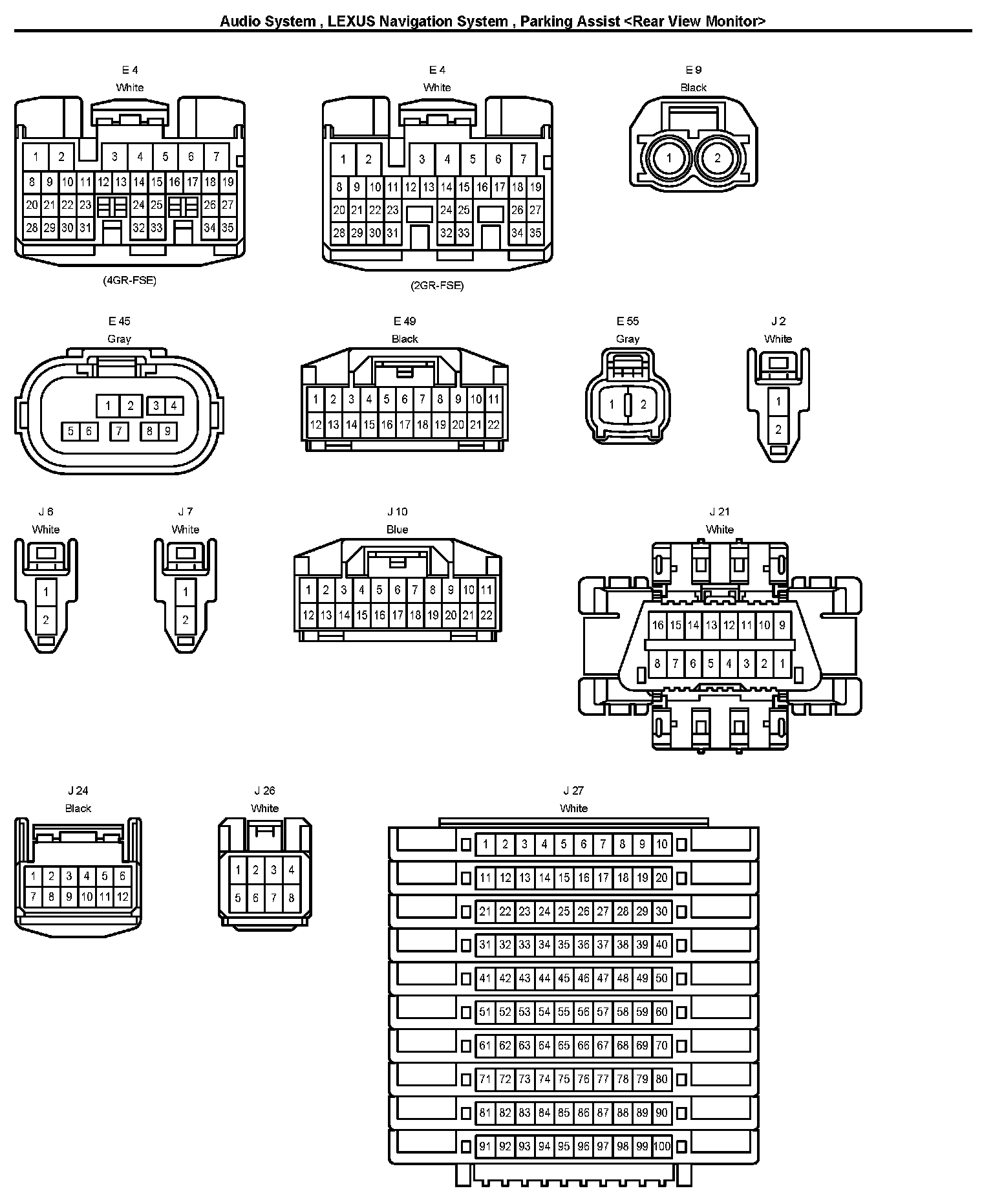

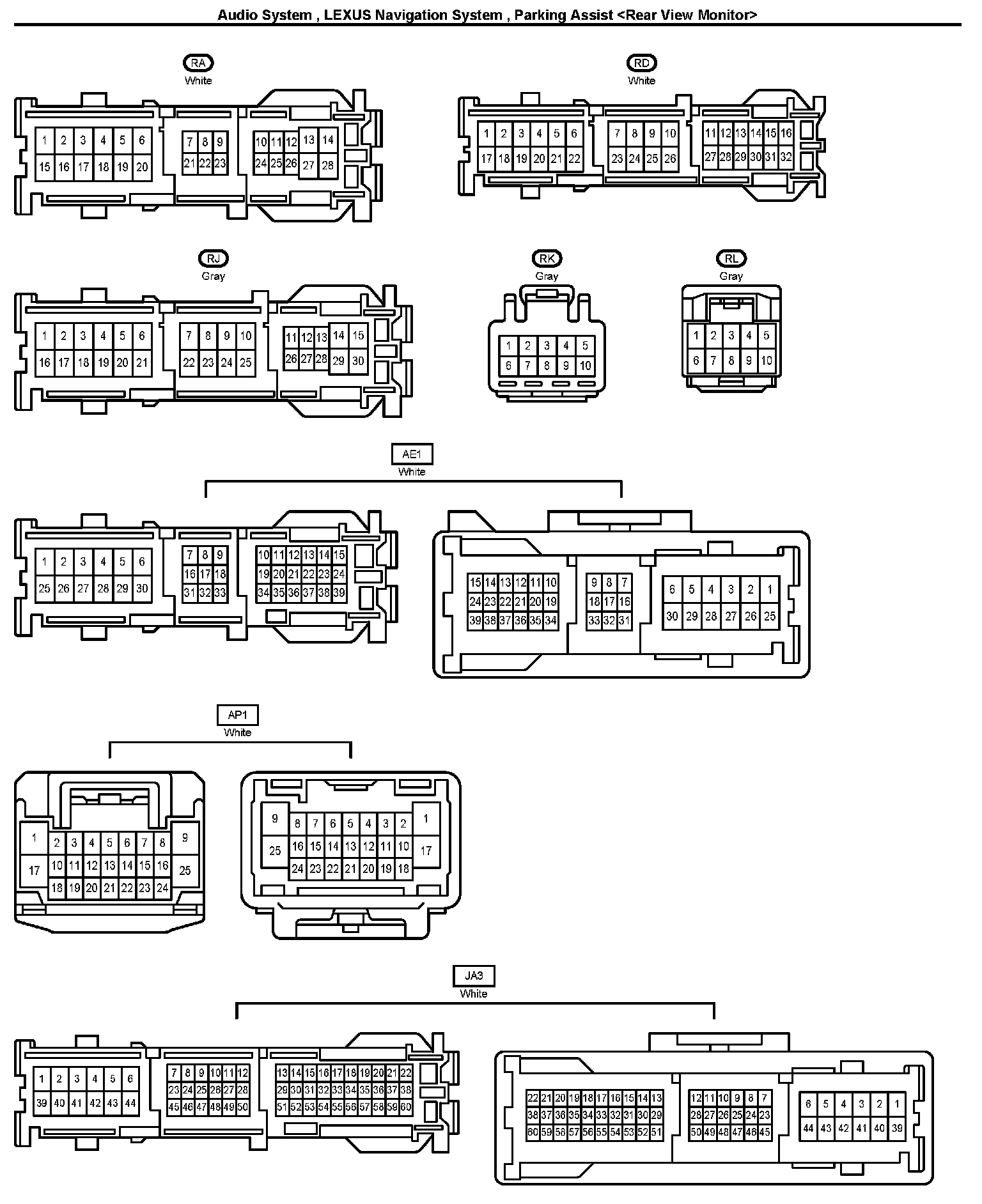

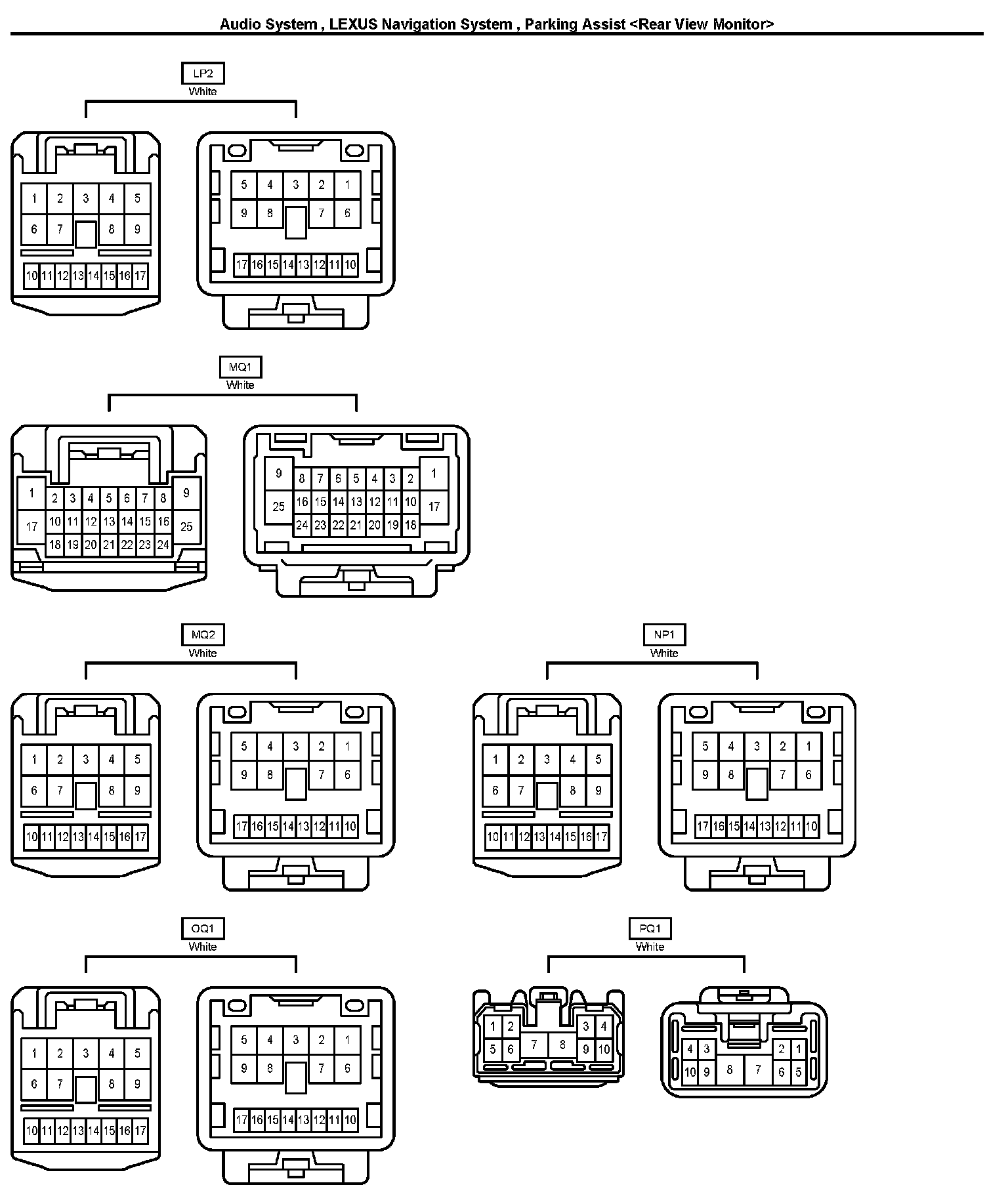

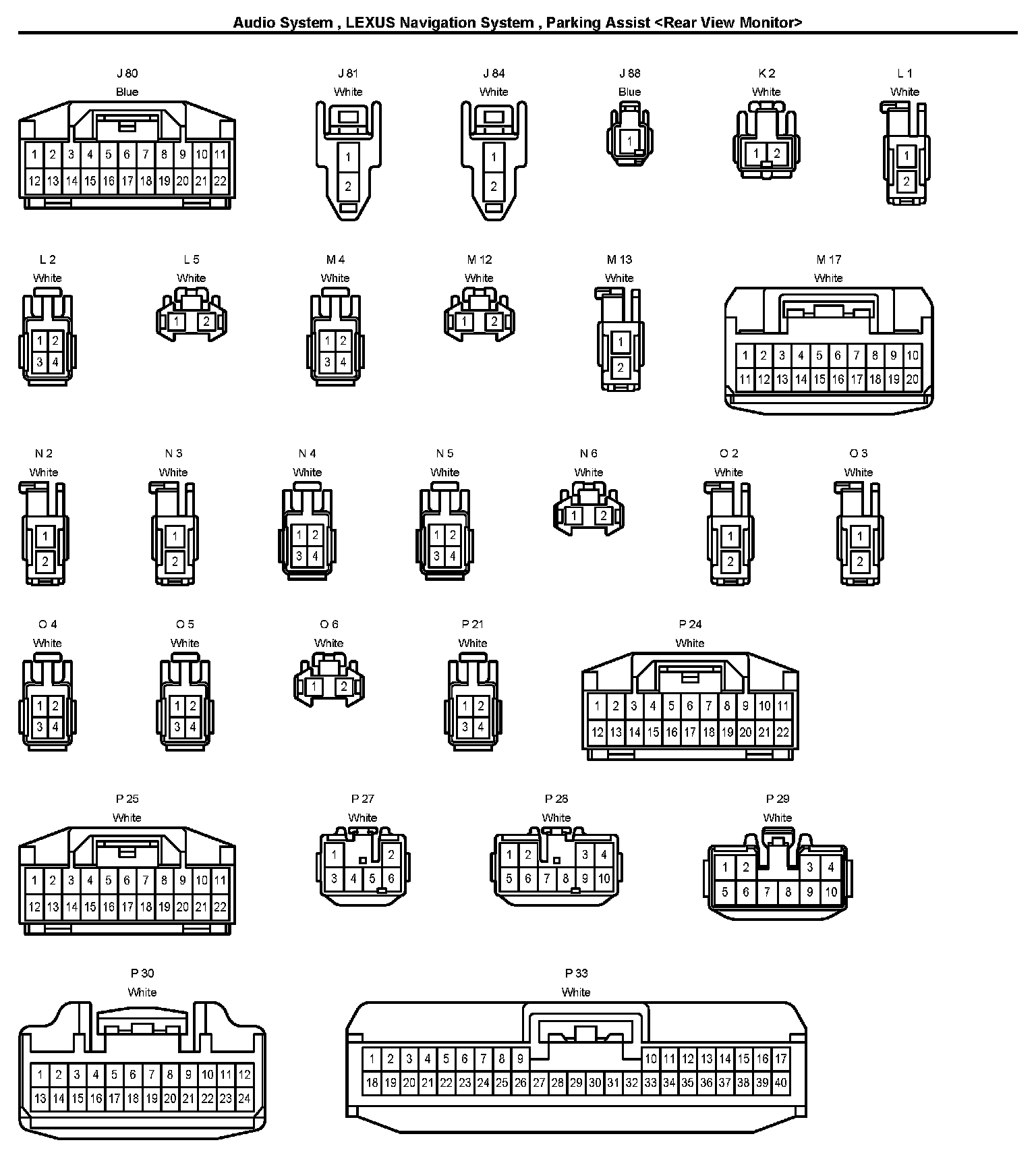

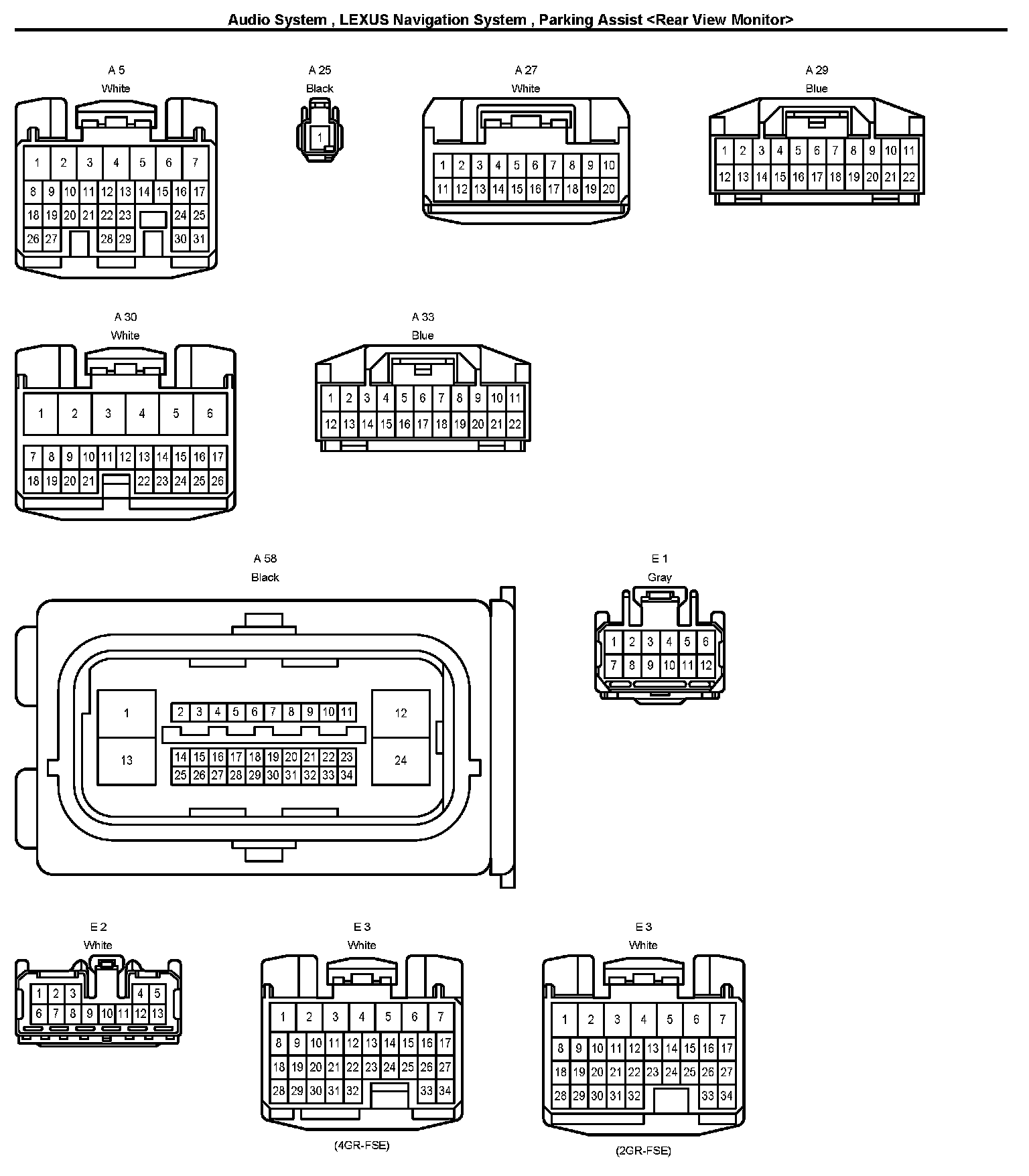

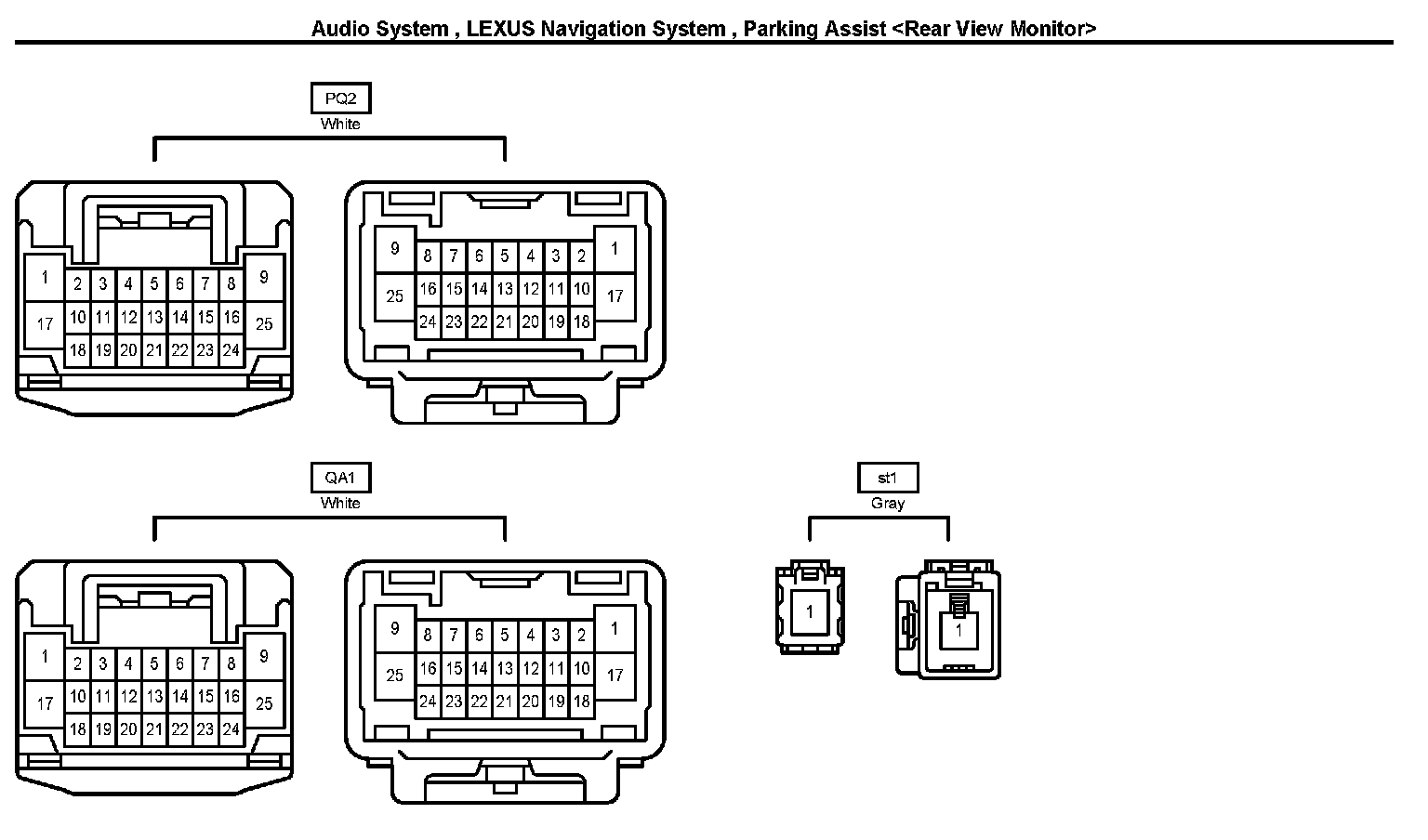

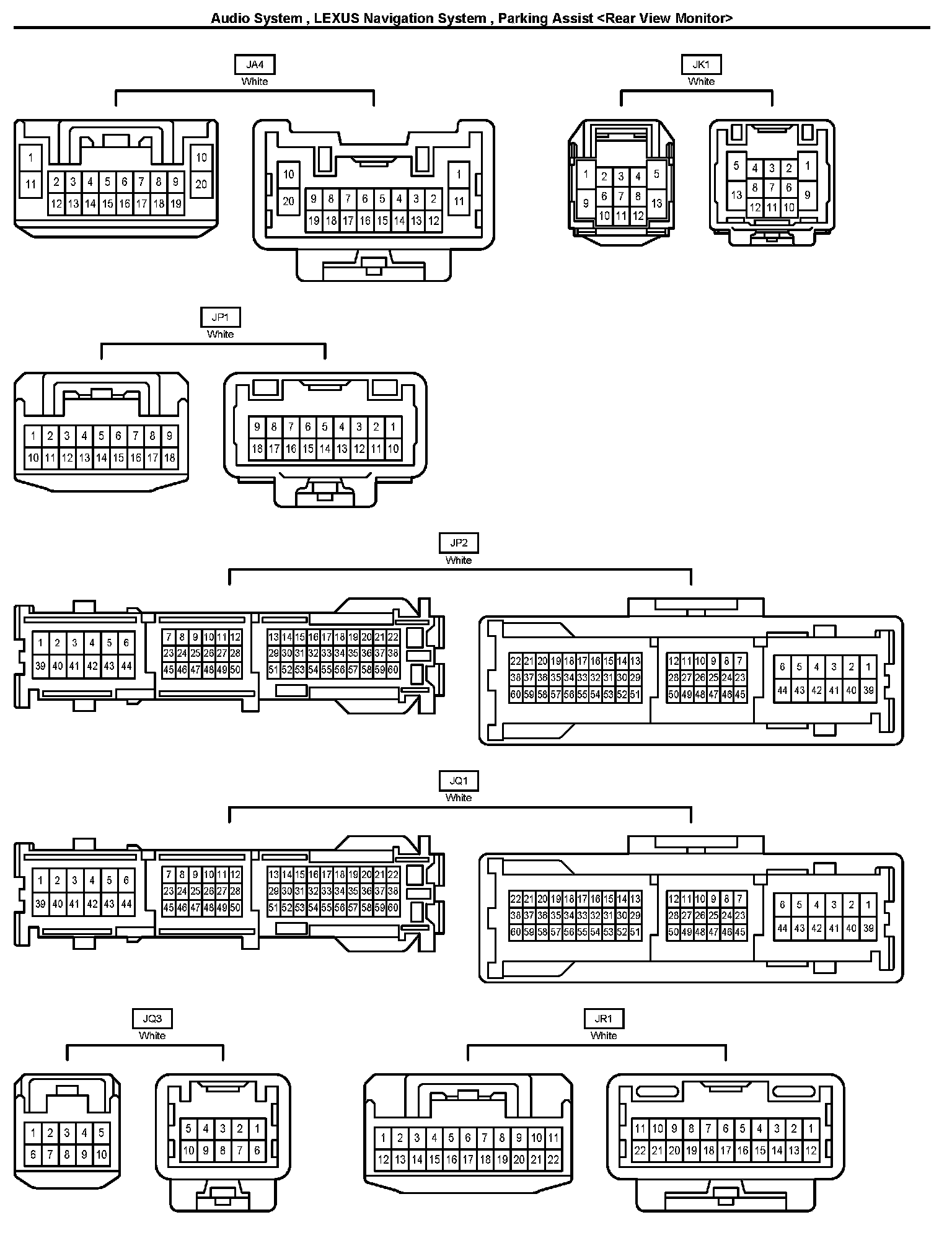

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Connectors Part 7:

Connectors Part 8:

Connectors Part 9:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
