Cruise Control System
Cruise Control System
CRUISE CONTROL

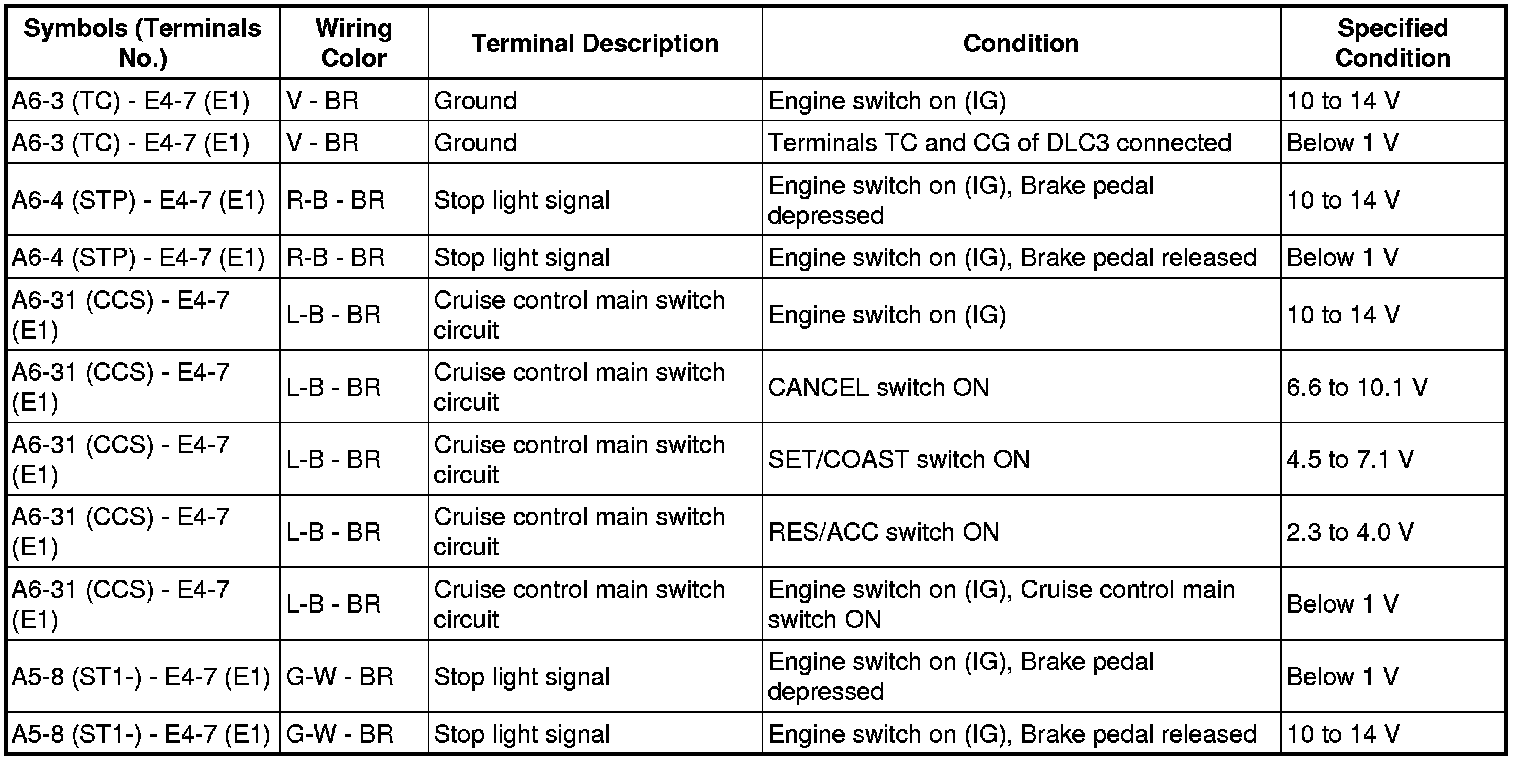

: CRUISE CONTROL SYSTEM: TERMINALS OF ECM

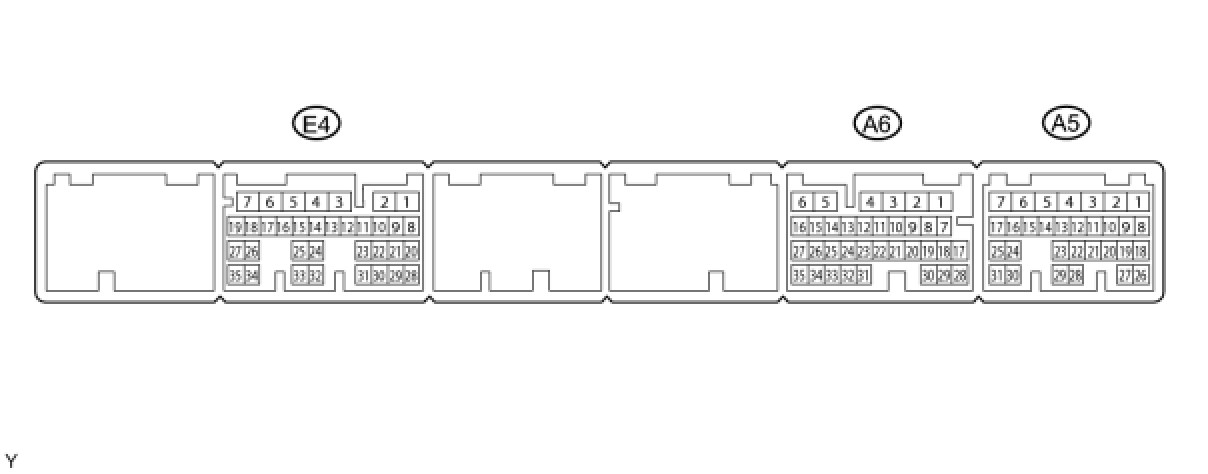

TERMINALS OF ECM
1.
CHECK ECM
