TC and CG Terminal Circuit

CRUISE CONTROL: CRUISE CONTROL SYSTEM: TC and CG Terminal Circuit

TC and CG Terminal Circuit

DESCRIPTION

Connecting terminals TC and CG of the DLC3 causes the system to enter self-diagnostic mode. If a malfunction is present, DTCs will be output.
HINT:
When a particular warning light remains blinking, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in the relevant ECU is suspected.

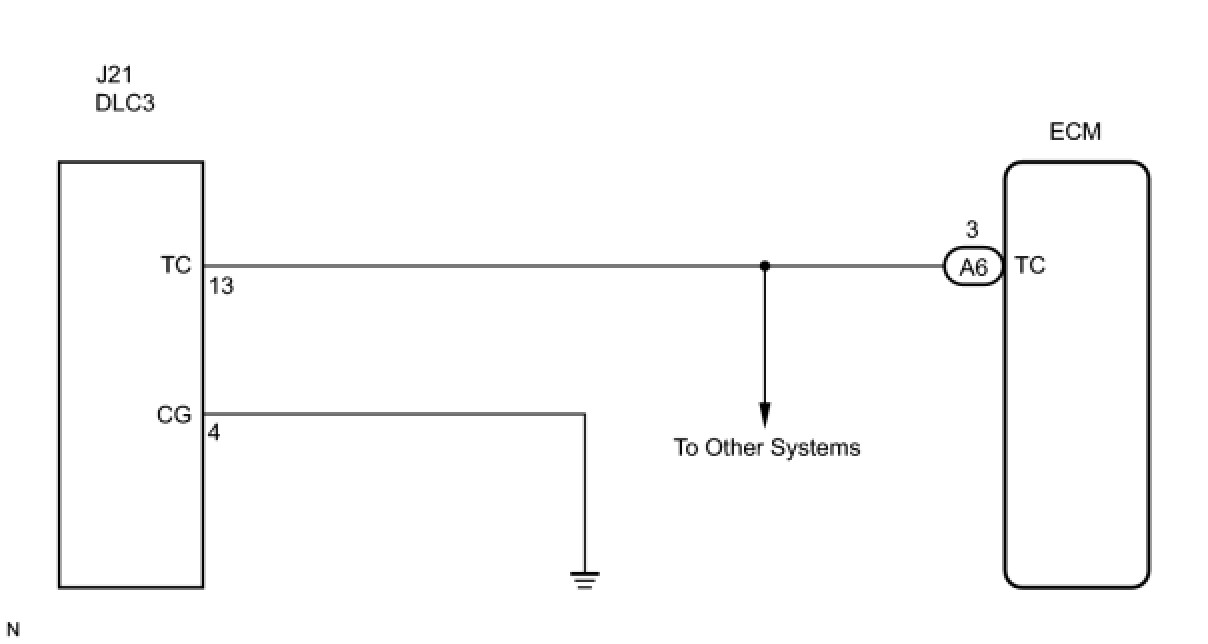

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

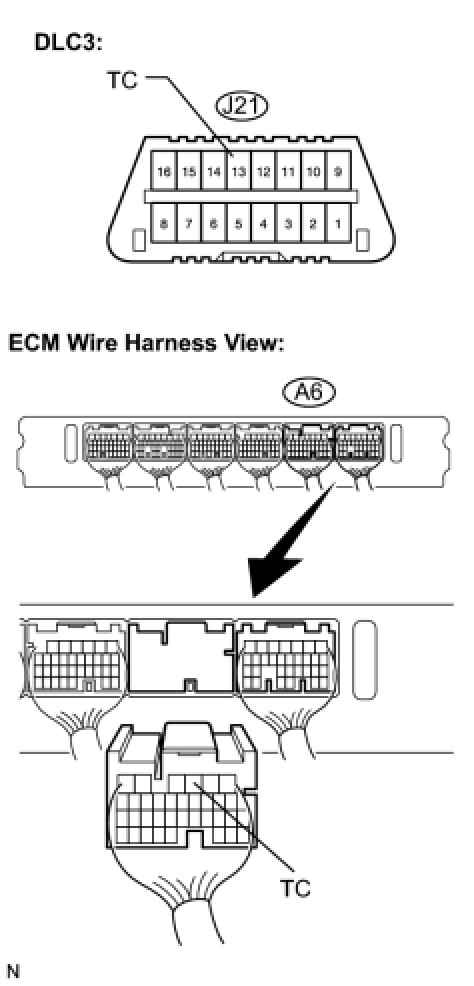

1. CHECK WIRE HARNESS (TERMINAL TC of DLC3 - ECM)
(a) Disconnect the A6 connector from the ECM.




(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - ECM)
OK -- Continue to next step.

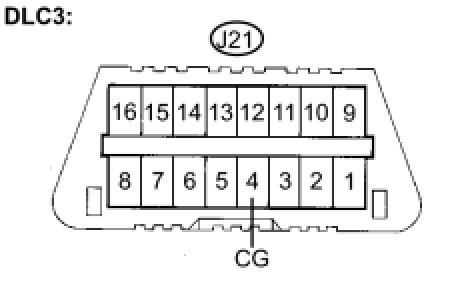

2. CHECK WIRE HARNESS (TERMINAL CG of DLC3 - BODY GROUND)




(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - BODY GROUND)
OK -- Continue to next step.

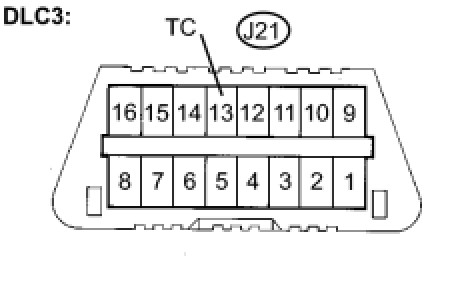

3. CHECK WIRE HARNESS (TERMINAL TC of DLC3 - BODY GROUND)




(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR OR EACH ECU
OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
